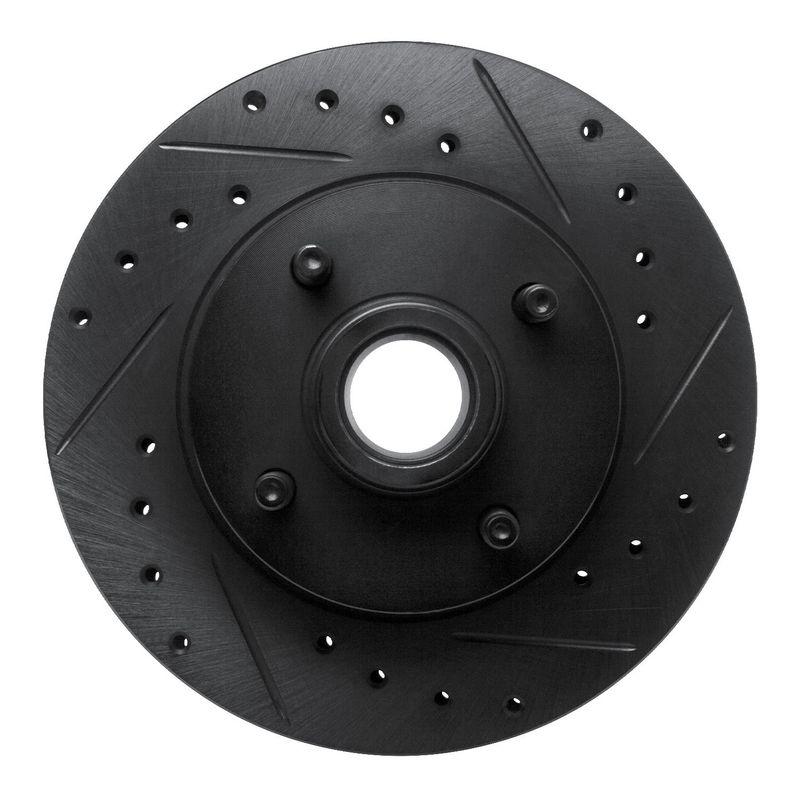

Dynamite Friction 633-54015R Disc Brake Rotor - Front Right

Overview of the DFC Brake Rotor - Drilled and Slotted - Black

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-54015R) is engineered for reliable braking performance on select Ford and Mercury vehicles. Designed with vented construction and a directional surface, this rotor supports efficient heat dissipation and consistent stopping power.

• Part Number: 633-54015R
• Disc Type: Vented disc brake rotor
• Surface: Directional drilled and slotted
• Rust Resistant Coating: Zinc black finish on hat, plain disc finish
• Dimensions: 256 mm outside diameter, 102.3 mm overall height
• Bolt Pattern: 4 bolt holes, 1/2-20 diameter, 108 mm bolt circle diameter
• Nominal Thickness: 22.2 mm with discard thickness at 20.6 mm
• Center Hole Diameter: 63.8 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and slots for improved brake pad bite and heat dissipation. The black zinc coating on the rotor hat enhances corrosion resistance, while the vented design helps maintain optimal operating temperatures. This product line is tailored for drivers seeking rotors that balance durability and performance in demanding driving conditions.

Technical Description and Specifications

This disc brake rotor features a vented design to promote airflow and reduce heat buildup during braking. The directional drilled and slotted surface improves water and debris evacuation, enhancing braking consistency. The rotor’s nominal thickness is 22.2 mm, with a discard thickness of 20.6 mm, ensuring a clear service life indicator. The zinc black finish on the hat provides rust resistance, extending the rotor’s durability. With a 4-bolt hole pattern sized at 1/2-20 and a 108 mm bolt circle diameter, this rotor fits securely on compatible hubs. The overall height and height both measure 102.3 mm, and the center hole diameter is 63.8 mm, matching factory specifications for proper fitment.

Compatible Vehicles and Applications

• Ford Capri
• Ford Cougar
• Ford Fairmont
• Ford LTD
• Ford Marquis
• Ford Mustang
• Ford Thunderbird
• Ford Zephyr
• Mercury Capri
• Mercury Cougar
• Mercury Fairmont
• Mercury Marquis
• Mercury Zephyr

This rotor is designed specifically for these Ford and Mercury models, ensuring proper fit and function when replacing worn or damaged rotors.

Common Issues Addressed by This Rotor

• Brake fade caused by excessive heat buildup
• Uneven brake pad wear due to poor rotor surface design
• Corrosion and rust on rotor hats reducing lifespan
• Reduced braking efficiency in wet conditions
• Vibration or noise from warped or damaged rotors

Installation Notes and Tips

Ensure the rotor surface is clean and free of contaminants before installation. Verify bolt hole alignment with the hub and torque bolts to manufacturer specifications. Because this rotor features a directional drilled and slotted surface, install it following the correct rotation direction indicated on the rotor. Check the rotor thickness against discard thickness to confirm suitability for reuse or replacement.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet or exceed OEM specifications for fit and function. The rust-resistant zinc black coating on the hat and vented rotor design contribute to long service life. Warranty details are provided by the manufacturer and should be reviewed prior to installation.
