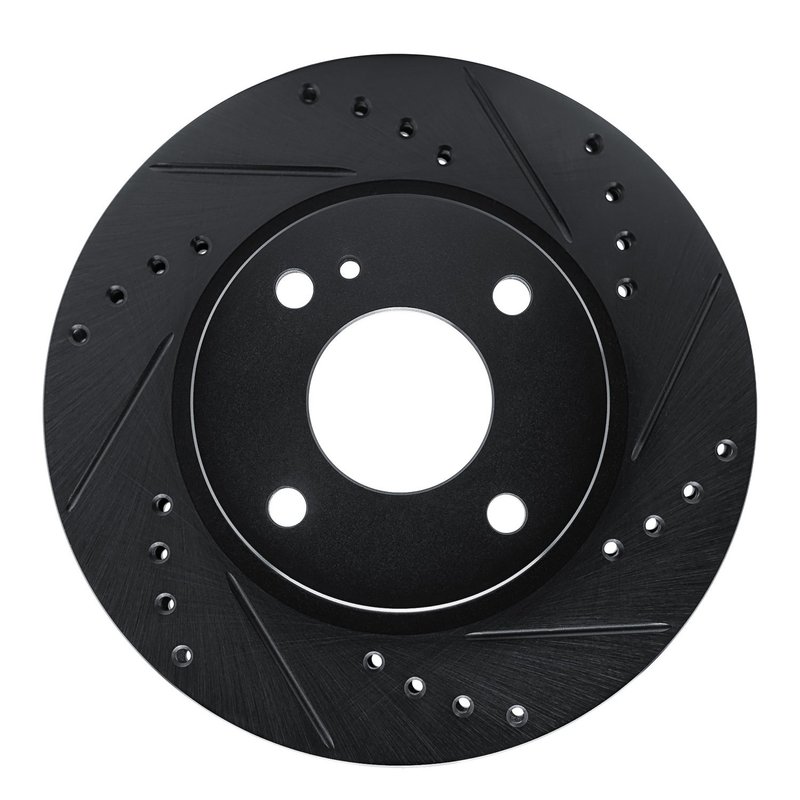

Dynamite Friction 633-54063R Disc Brake Rotor - Front Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-54063R) is engineered for reliable braking performance on Ford Fiesta models. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance heat dissipation and maintain consistent stopping power under various driving conditions.

• Compatible with Ford Fiesta vehicles
• Directional drilled and slotted surface for improved brake pad bite and heat management
• Vented rotor design to reduce brake fade
• Nominal thickness of 23 mm with a discard thickness of 21 mm
• Rust-resistant zinc black hat finish for corrosion protection
• Four bolt holes with 13 mm diameter and 108 mm bolt circle diameter
• Overall rotor diameter of 258 mm and height of 43.9 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction offers rotors designed with both drilled holes and slots on the braking surface. This combination helps to evacuate gases, dust, and water more efficiently than plain rotors, contributing to improved braking consistency. The black zinc coating on the rotor hat provides additional rust resistance, extending the rotor's service life, especially in environments prone to corrosion.

Technical Specifications and Features

This disc brake rotor is vented, allowing air to flow between the rotor surfaces to dissipate heat generated during braking. The rotor's nominal thickness is 23 mm, with a discard thickness of 21 mm, indicating when replacement is necessary to maintain safe braking performance. The rotor features a directional surface pattern with drilled holes and slots, which enhances pad bite and helps prevent brake fade. The rotor's hat is finished with a zinc black coating to resist rust, and the plain disc finish ensures compatibility with a wide range of brake pads.

Applications and Problem Solving

• Restores braking performance on Ford Fiesta vehicles with worn or damaged rotors
• Reduces brake fade during aggressive or repeated braking
• Improves heat dissipation to prevent rotor warping
• Helps maintain consistent braking in wet or dusty conditions
• Protects against corrosion with rust-resistant coating

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 21 mm before installation. Clean the rotor surface to remove any protective coatings or contaminants before mounting. Verify bolt hole alignment with the Ford Fiesta hub using the 4-bolt pattern and 108 mm bolt circle diameter. Proper torque specifications should be followed to avoid rotor warping. Directional rotors must be installed with the rotation arrow pointing in the correct direction of wheel rotation.

Quality Assurance

Dynamite Friction manufactures the 633-54063R rotor to meet or exceed OEM standards for fit, form, and function. The rust-resistant zinc black finish on the rotor hat enhances durability. While no specific warranty information is provided, Dynamite Friction products are typically backed by quality control processes to ensure reliable performance on Ford Fiesta vehicles.
