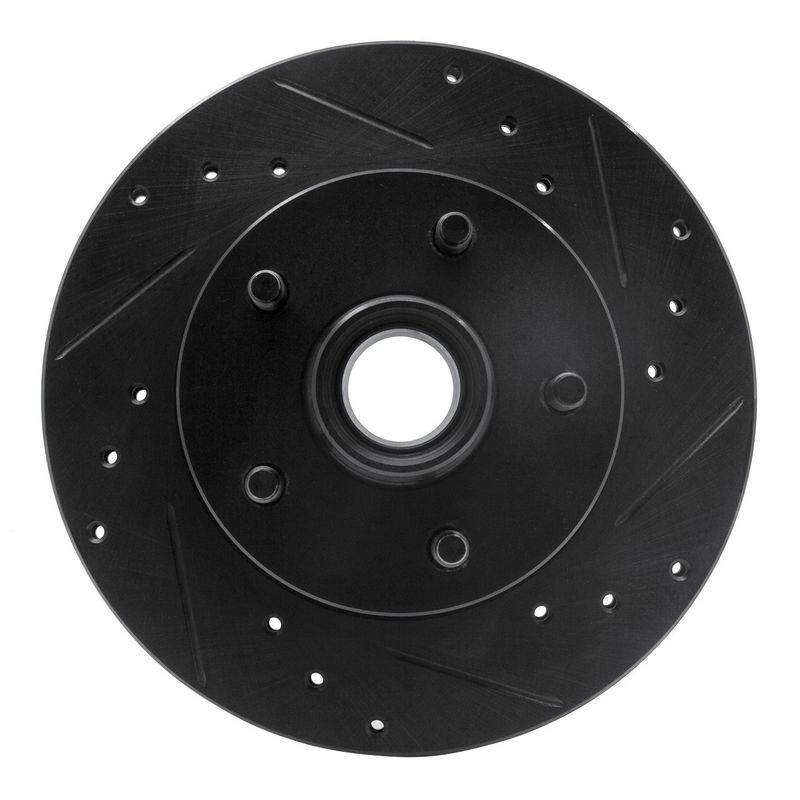

Dynamite Friction 633-54138R Disc Brake Rotor - Front Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-54138R) is engineered for reliable braking performance on Ford and Mazda trucks. Designed specifically for models like the Ford Ranger and Mazda B2300, B3000, and B4000, this rotor combines durability with enhanced heat dissipation.

• Disc type: Vented disc brake rotor with drilled and slotted surface
• Nominal thickness: 26.1 mm with discard thickness at 24.5 mm
• Rust resistant zinc black hat finish and plain disc finish
• Directional brake surface for optimized braking efficiency
• Fits vehicles with 5 lug holes and 1/2-20 bolt hole diameter
• Outside diameter: 261 mm; overall height: 108 mm
• Center hole diameter: 63.7 mm; bolt circle diameter: 114.3 mm

Details on the DFC Brake Rotor - Drilled and Slotted - Black Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that improve braking response and heat management. The drilled and slotted design helps to reduce brake fade by allowing gases and debris to escape, while the vented rotor construction promotes better airflow. The black zinc coating on the hat provides corrosion resistance, extending the rotor's service life under various driving conditions.

Technical Specifications and Features

This rotor features a vented design with a directional surface that is both drilled and slotted, enhancing braking performance and heat dissipation. The nominal thickness of 26.1 mm ensures structural integrity, while the discard thickness of 24.5 mm indicates when replacement is necessary. The rotor's 5-bolt hole pattern with a 1/2-20 diameter and 114.3 mm bolt circle diameter matches the factory specifications for compatible Ford and Mazda trucks. The zinc black hat finish offers rust resistance, maintaining rotor durability over time.

Applications and Problem Solving

• Replacement rotor for worn or warped brake rotors on Ford Ranger and Mazda B-series trucks
• Improves braking performance by reducing heat buildup and brake fade
• Addresses issues with rust and corrosion on original equipment rotors
• Helps eliminate brake noise and vibration caused by uneven rotor surfaces
• Suitable for vehicles requiring vented, drilled, and slotted rotors for enhanced stopping power

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify that the bolt hole pattern and center hole diameter match your vehicle’s specifications. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Proper torque specifications should be followed when securing the rotor to avoid warping.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet or exceed OEM standards for fit and function. The rust-resistant coating and vented design contribute to long-term durability. Please consult the manufacturer or retailer for specific warranty details related to part number 633-54138R.
