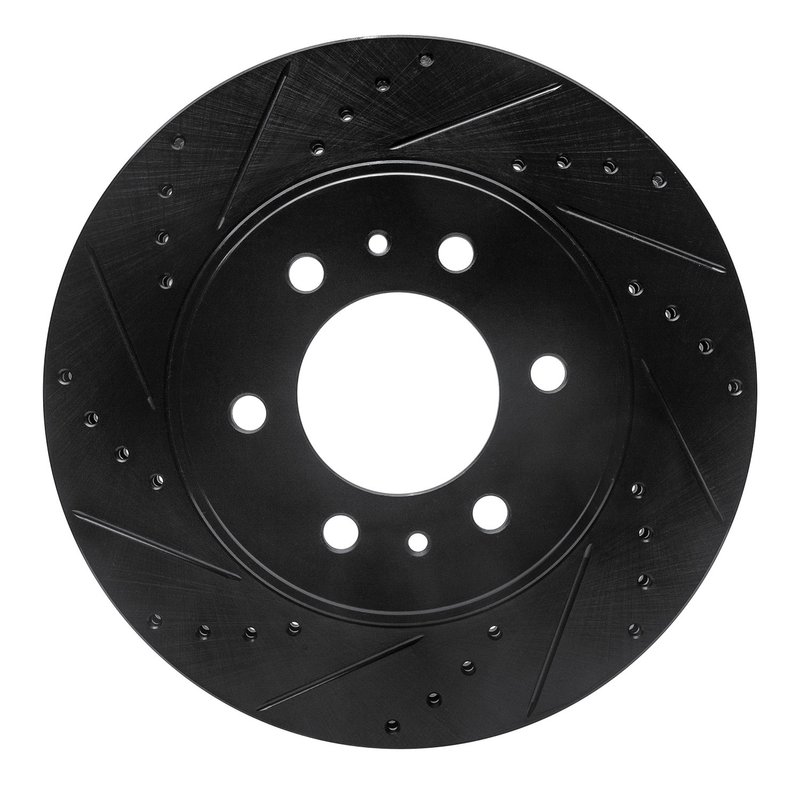

Dynamite Friction 633-54215L Disc Brake Rotor - Front Left

Drilled and Slotted Front Left Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black, part number 633-54215L, is a vented disc brake rotor built for the front left position on the 2009 Ford F-150 with 6 lug wheels. It features a slotted X drilled surface, zinc black hat finish, and a rust resistant coating for a clean, service-ready appearance.

For drivers searching for a 2009 Ford F-150 front left brake rotor, 633-54215L provides the key dimensions and directional surface design needed for a direct replacement application. The rotor measures 330 mm outside diameter, 52.5 mm overall height, 90.1 mm center hole diameter, and uses a 135 mm bolt circle with 6 bolt holes.

Key Features

• Part number 633-54215L for the front left brake position
• Fits 2009 Ford F-150, front left, with 6 lug wheels
• Vented disc brake rotor with directional slotted X drilled surface
• 330 mm outside diameter and 52.5 mm overall height
• Zinc black hat finish with rust resistant coating
• 6 bolt holes, 135 mm bolt circle, and 90.1 mm center hole diameter
• Nominal thickness: 30 mm; discard thickness: 28.5 mm

Product Details

The DFC Brake Rotor - Drilled and Slotted - Black line focuses on rotor construction and surface treatment for consistent brake service fitment. This rotor uses a plain disc finish with a black zinc hat finish, while the vented design and directional slot-and-drill pattern support even pad contact across the braking surface. For 2009 Ford F-150 brake rotor replacement searches, 633-54215L matches the listed front left application and dimensional requirements.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Brake rotor wear that requires front left replacement
• Surface corrosion on exposed rotor and hat areas
• Uneven braking feel from a worn or heat-affected rotor
• Fitment needs for a 2009 Ford F-150 front left rotor with 6 lug wheels
• Replacement of a vented, directional rotor with matching bolt pattern and dimensions

Installation Notes

Verify rotor dimensions, bolt circle diameter, center hole diameter, and position before installation. This rotor is listed for the front left side only and for 2009 Ford F-150 applications with 6 lug wheels. Confirm brake hardware compatibility and inspect pads, caliper condition, and hub surfaces during service.

Quality Assurance

Dynamite Friction identifies this rotor with a rust resistant coating and zinc black hat finish for added surface protection in service. Part number 633-54215L is specified for the listed 2009 Ford F-150 front left application.
