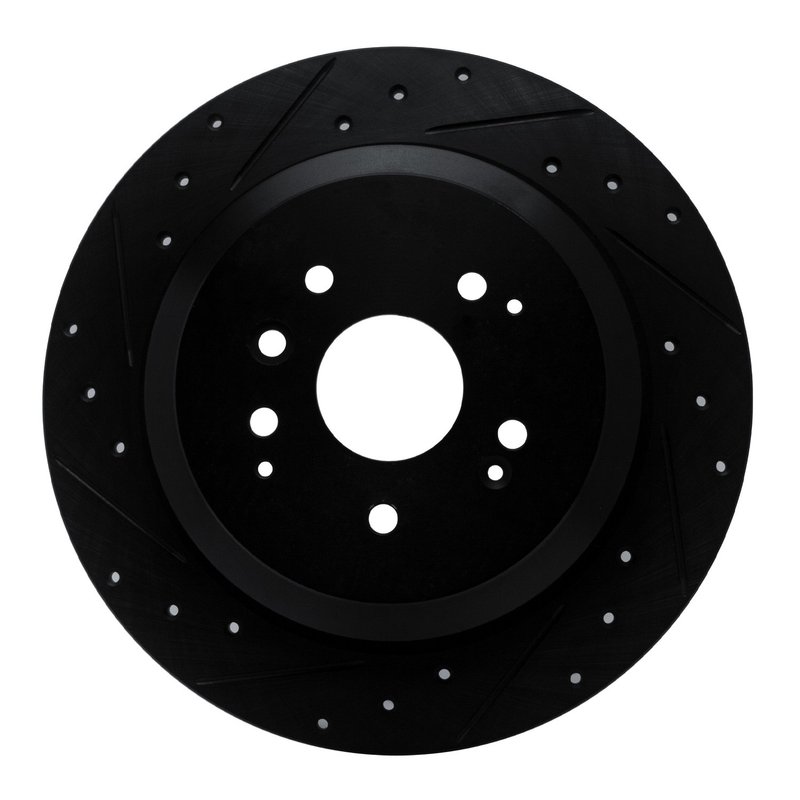

Dynamite Friction 633-58028L Disc Brake Rotor - Rear Left

Overview of the DFC Brake Rotor - Drilled and Slotted - Black

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-58028L) is engineered for Acura MDX models requiring reliable braking performance. This solid disc brake rotor features a directional, slotted and drilled surface designed to enhance heat dissipation and maintain consistent stopping power.

• Compatible with Acura MDX vehicles
• Part number: 633-58028L
• Solid disc rotor with drilled and slotted surface
• Directional brake surface for optimized performance
• Rust resistant zinc black hat finish
• Nominal thickness: 11 mm; discard thickness: 9 mm
• Outside diameter: 330 mm; overall height: 63.3 mm
• 5 bolt holes with 12.7 mm diameter and 114.3 mm bolt circle diameter

Detailed Product Features and Specifications

This DFC Brake Rotor - Drilled and Slotted - Black is a solid rotor with a 330 mm outside diameter and an overall height of 63.3 mm, designed specifically for Acura MDX models. The rotor surface combines drilled holes and slots arranged directionally to improve brake pad bite and aid in heat and gas dissipation during braking. The rotor’s nominal thickness is 11 mm, with a discard thickness of 9 mm, ensuring clear service limits for safety and performance. The zinc black coating on the rotor hat provides rust resistance, extending the rotor’s service life in various driving conditions.

About the DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on delivering rotors with enhanced surface designs for improved braking efficiency. This product line features rotors with drilled and slotted surfaces that are directional, providing better heat management and debris removal compared to plain rotors. The black zinc finish on the rotor hat adds corrosion resistance, making these rotors suitable for drivers seeking durability and consistent braking performance on Acura MDX vehicles.

Common Applications and Problem Solving

• Replacement for worn or warped brake rotors on Acura MDX
• Improves heat dissipation to reduce brake fade during heavy braking
• Helps prevent brake pad glazing and uneven wear
• Reduces rust buildup on rotor hats for longer service life
• Maintains consistent braking performance under varied driving conditions

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 9 mm before installation. Clean the rotor surface to remove any protective coating or debris prior to mounting. Use proper torque specifications for the 5 lug bolts with 12.7 mm diameter and 114.3 mm bolt circle diameter to secure the rotor. Verify directional orientation of the drilled and slotted surface during installation to maintain optimal braking performance.

Quality Assurance and Warranty

Dynamite Friction manufactures the 633-58028L rotor to meet or exceed OEM specifications for Acura MDX vehicles. The rust resistant coating and precise machining contribute to consistent performance and durability. Warranty details are provided by the manufacturer and should be reviewed prior to purchase.
