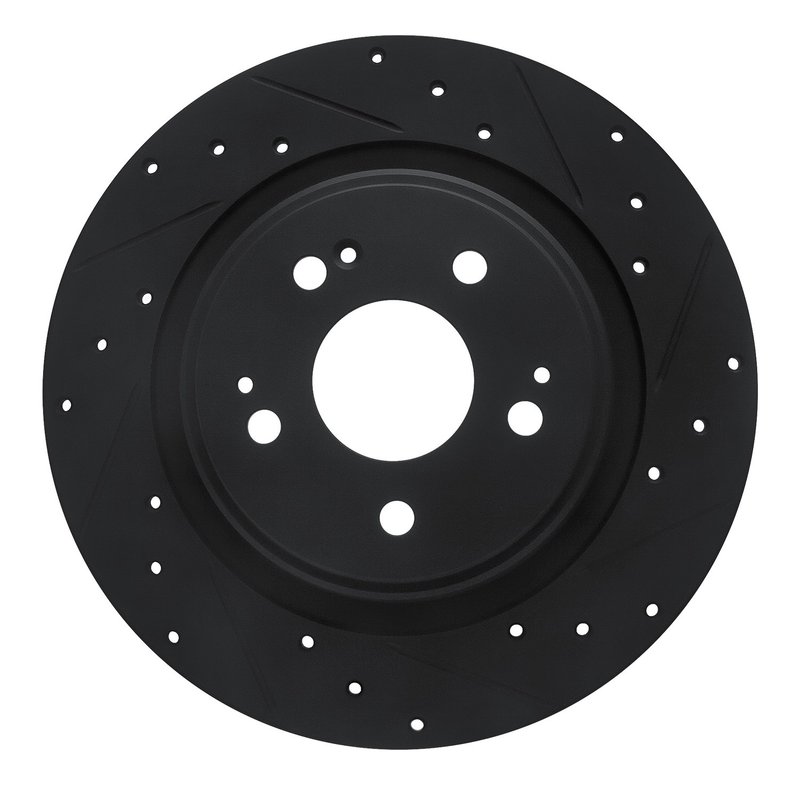

Dynamite Friction 633-58030R Disc Brake Rotor - Rear Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-58030R) is engineered for Acura MDX models requiring reliable braking performance. This solid disc brake rotor features a directional, slotted and drilled surface designed to enhance heat dissipation and maintain consistent stopping power.

• Compatible with Acura MDX vehicles
• Part number: 633-58030R
• Solid rotor with drilled and slotted surface
• Directional brake surface for optimized performance
• Nominal thickness of 11 mm and discard thickness of 9 mm
• 330 mm outside diameter and 45.7 mm overall height
• 5 bolt holes with 14.7 mm diameter and 120 mm bolt circle diameter
• Zinc black hat finish with rust-resistant coating

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction offers rotors designed with enhanced surface features to improve braking efficiency. The drilled and slotted design helps reduce brake fade by allowing gases and debris to escape, while the directional surface ensures proper alignment for optimal performance. The zinc black hat finish provides corrosion resistance, extending rotor life under various driving conditions.

Technical Specifications and Features

This disc brake rotor is a solid type with a nominal thickness of 11 mm and a discard thickness of 9 mm, ensuring durability and safety margins for wear. The rotor measures 330 mm in outside diameter and has an overall height of 45.7 mm, fitting precisely on Acura MDX models. It includes five bolt holes with a diameter of 14.7 mm arranged on a 120 mm bolt circle diameter, matching the vehicle’s hub specifications. The rotor’s hat is finished in zinc black, providing rust resistance to maintain structural integrity over time.

Applications and Problem Solving

• Replaces worn or warped brake rotors on Acura MDX
• Improves heat dissipation to reduce brake fade during heavy braking
• Helps maintain consistent braking performance under varied driving conditions
• Addresses rotor corrosion issues with rust-resistant coating
• Enhances braking response with directional drilled and slotted surface

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the bolt hole pattern and diameter match the vehicle hub specifications. The directional surface must be installed following the indicated rotation direction for optimal performance. Check rotor thickness before installation to confirm it meets or exceeds the discard thickness of 9 mm. Proper torque specifications should be followed when securing the rotor to avoid warping.

Quality Assurance

Dynamite Friction manufactures this rotor to meet OEM standards for fit and function on Acura MDX vehicles. The rust-resistant zinc black hat finish adds durability against corrosion. While no specific warranty information is provided, the rotor’s design and materials support reliable braking performance consistent with industry expectations.
