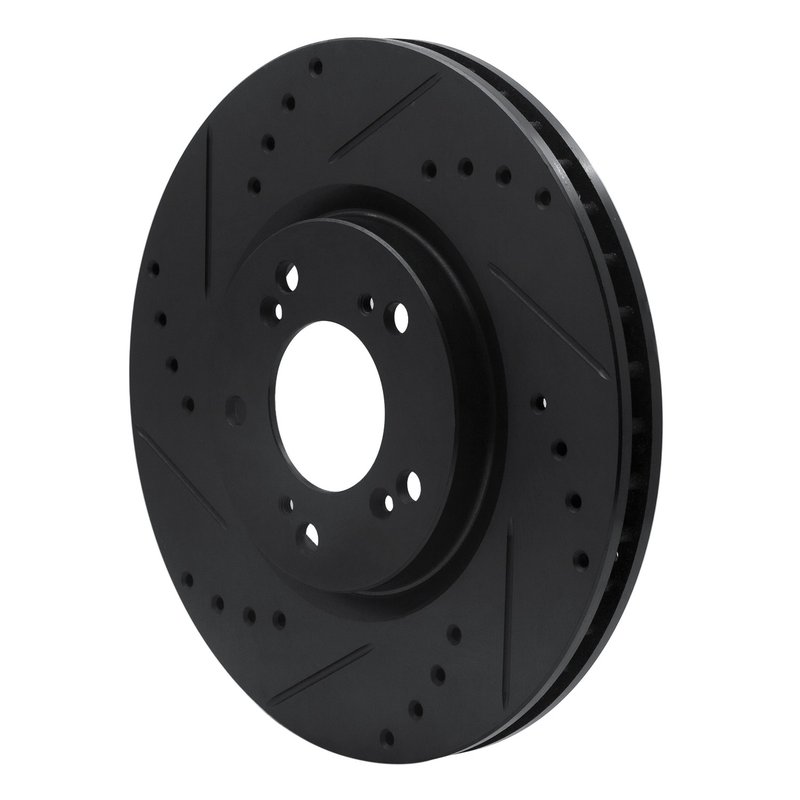

Dynamite Friction 633-59027L Disc Brake Rotor - Front Left

Overview of the DFC Brake Rotor for Honda S2000

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-59027L) is engineered specifically for the Honda S2000. This vented disc brake rotor combines drilled and slotted surface features with a rust-resistant zinc black hat finish to enhance braking performance and durability.

• Compatible with Honda S2000 models
• Directional drilled and slotted surface for improved heat dissipation
• Vented rotor design to reduce brake fade
• Zinc black coated hat for corrosion resistance
• Nominal thickness of 25 mm with a discard thickness of 23 mm
• 5 bolt holes with 12.6 mm diameter and 114.3 mm bolt circle diameter
• Overall diameter of 300 mm and height of 39.6 mm

Detailed Product Features and Specifications

This DFC Brake Rotor - Drilled and Slotted - Black is designed with a directional surface type featuring both drilled holes and slots. These features help to evacuate gases, dust, and water from the braking surface, improving contact and reducing brake fade during aggressive driving or track use. The rotor is vented, allowing air to flow between the rotor faces to further dissipate heat. The zinc black finish on the rotor hat provides a rust-resistant coating, extending the rotor's service life in various weather conditions.

The rotor measures 300 mm in outside diameter with an overall height of 39.6 mm. It includes five bolt holes with a diameter of 12.6 mm arranged on a 114.3 mm bolt circle diameter, matching the Honda S2000's factory specifications. The nominal thickness is 25 mm, with a discard thickness of 23 mm, ensuring safe replacement intervals.

About the DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction focuses on combining functional design with corrosion resistance. This product line features rotors with drilled and slotted surfaces to improve braking efficiency and vented construction to manage heat buildup. The black zinc coating on the rotor hat enhances rust resistance, making these rotors suitable for both street and performance applications on compatible vehicles like the Honda S2000.

Common Applications and Problem Solving

• Reduces brake fade during spirited driving or track use
• Improves wet weather braking by channeling water away from the rotor surface
• Minimizes brake dust buildup for cleaner braking components
• Prevents rust and corrosion on the rotor hat for longer service life
• Maintains consistent braking performance under high thermal stress

Installation Notes and Tips

When installing the Dynamite Friction 633-59027L rotor on a Honda S2000, ensure the rotor is mounted with the directional surface facing the correct rotation direction. Verify that the bolt holes align with the vehicle’s hub using the 114.3 mm bolt circle diameter and 12.6 mm bolt hole diameter. It is recommended to replace brake pads simultaneously to optimize braking performance. Always torque lug nuts to manufacturer specifications and inspect all hardware for wear or damage during installation.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC Brake Rotor - Drilled and Slotted - Black to meet or exceed OEM standards for fitment and performance on the Honda S2000. The rotor includes a rust-resistant coating to enhance durability. Warranty details should be confirmed with the manufacturer or distributor, as coverage may vary by region and application.
