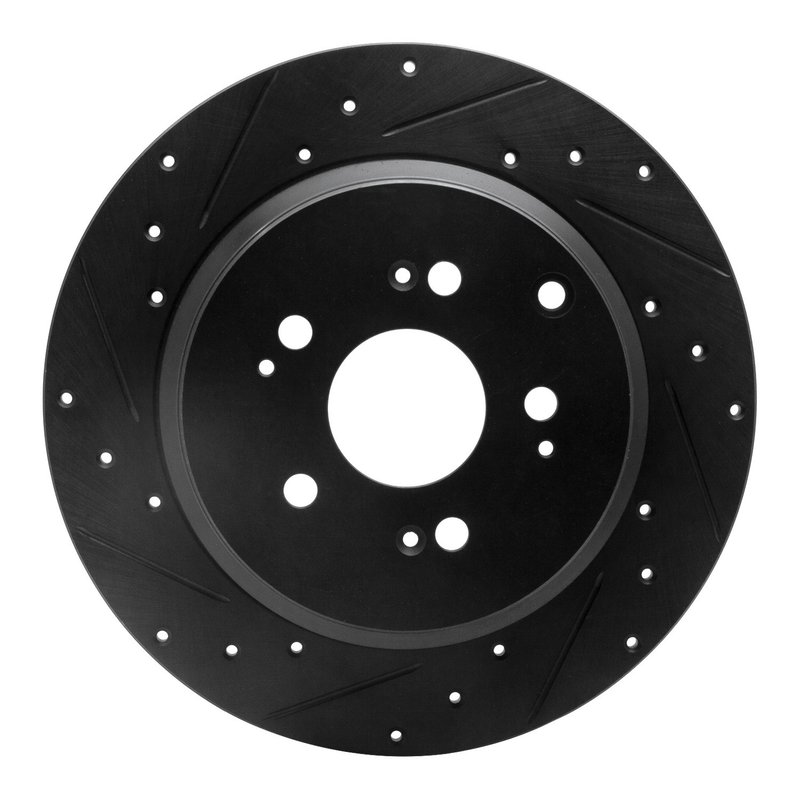

Dynamite Friction 633-59054L Disc Brake Rotor - Rear Left

Overview of DFC Brake Rotor - Drilled and Slotted - Black

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-59054L) is engineered for Acura and Honda vehicles, including the MDX, Odyssey, Pilot, and ZDX models. Designed to enhance braking performance, this rotor features a directional, slotted and drilled surface for improved heat dissipation and consistent stopping power.

• Compatible with Acura MDX, Honda Odyssey, Pilot, and ZDX
• Part number 633-59054L for precise identification
• Directional slotted and drilled surface for heat management
• Solid disc rotor with zinc black hat finish and rust-resistant coating
• 5 bolt holes with 120mm bolt circle diameter
• Nominal thickness of 11mm and discard thickness of 9mm
• Overall diameter of 334mm and center hole diameter of 70.1mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction offers rotors designed with both drilled holes and slots on the braking surface. This combination helps to reduce brake fade by allowing gases and heat to escape more efficiently during braking. The black zinc-coated hat finish provides corrosion resistance, extending rotor life. This product line is tailored for drivers seeking reliable braking performance with enhanced durability and heat management.

Technical Specifications and Features

This rotor is a solid disc type, measuring 334mm in outside diameter and 63.8mm in overall height. It features a nominal thickness of 11mm and a discard thickness of 9mm, ensuring clear service limits for safety. The rotor surface is directional with a slotted and drilled pattern, which improves water and debris evacuation while maintaining consistent pad contact. The zinc black hat finish and rust-resistant coating protect against corrosion, especially in harsh environments. The rotor includes 5 bolt holes with a 120mm bolt circle diameter, matching the stud/lug hole pattern of compatible Acura and Honda models.

Applications and Problem Solving

• Improves braking performance on Acura MDX, Honda Odyssey, Pilot, and ZDX
• Reduces brake fade during extended or aggressive driving
• Helps prevent rotor warping caused by excessive heat buildup
• Minimizes rust and corrosion for longer rotor lifespan
• Maintains consistent braking feel with directional slotted and drilled design

Installation Notes and Tips

Ensure the rotor is installed on vehicles matching the specified fitment: Acura MDX, Honda Odyssey, Pilot, and ZDX. Verify the bolt hole pattern and rotor dimensions before installation. Clean the rotor surface and hub mounting area to remove any debris or rust. Use proper torque specifications for the 5 lug bolts to avoid rotor distortion. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.

Quality Assurance

Dynamite Friction manufactures this rotor with rust-resistant coatings and precise machining to meet OEM standards. The zinc black hat finish adds corrosion protection, contributing to durability. While no specific warranty information is provided, the rotor’s discard thickness and nominal thickness specifications help maintain safety and performance by indicating when replacement is necessary.
