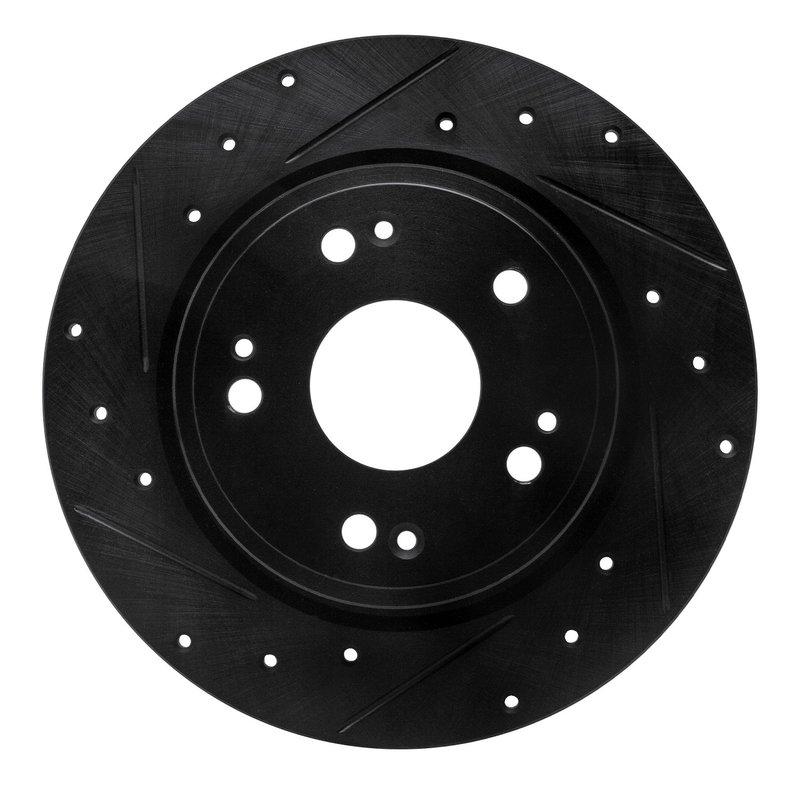

Dynamite Friction 633-59060L Disc Brake Rotor - Rear Left

Overview of the DFC Brake Rotor for Honda CR-Z

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-59060L) is engineered specifically for the Honda CR-Z. This solid disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Honda CR-Z models
• Part Number: 633-59060L
• Solid disc rotor with drilled and slotted surface
• Black zinc-coated hat finish for corrosion resistance
• 5 bolt holes with 114.3 mm bolt circle diameter
• Nominal thickness of 9 mm and discard thickness of 8 mm
• Directional brake surface for optimized braking
• Rust resistant coating applied
• Overall diameter of 282 mm and height of 43 mm

Details on the DFC Brake Rotor - Drilled and Slotted - Black Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and slots to improve brake pad bite and reduce heat buildup. The black zinc finish on the rotor hat provides additional protection against rust, extending the rotor's service life. This product line is designed to meet the specific braking demands of vehicles like the Honda CR-Z, offering a balance of durability and performance.

Technical Specifications and Features

This disc brake rotor is a solid type with a nominal thickness of 9 mm and a discard thickness of 8 mm, ensuring reliable wear limits. The rotor's surface is both drilled and slotted, which helps evacuate gases and debris from the brake pad surface, improving braking consistency. The rotor hat is finished with a zinc black coating to resist corrosion, while the entire rotor features a rust-resistant coating. It has 5 bolt holes with a bolt circle diameter of 114.3 mm and a center hole diameter of 64.2 mm, matching the Honda CR-Z's specifications precisely.

Applications and Problem Solving

• Replacement rotor for worn or warped Honda CR-Z brake rotors
• Improves heat dissipation to reduce brake fade during aggressive driving
• Helps maintain consistent braking performance under varied conditions
• Reduces rust and corrosion on rotor hats for longer service life
• Addresses brake noise and vibration issues caused by uneven rotor surfaces

Installation Notes and Tips

Ensure the rotor is installed on a compatible Honda CR-Z model and verify the bolt pattern matches the vehicle’s hub assembly. Clean the rotor surface before installation to remove any protective coatings or residues. Use proper torque specifications on the 5 lug bolts to avoid warping. It is recommended to replace brake pads when installing new rotors to ensure optimal braking performance.

Quality Assurance

Dynamite Friction manufactures this rotor to meet OEM specifications for fit and function. The rust-resistant coatings and zinc black hat finish contribute to durability and corrosion resistance. While no specific warranty information is provided, the rotor is designed for reliable performance and longevity when installed and maintained properly.
