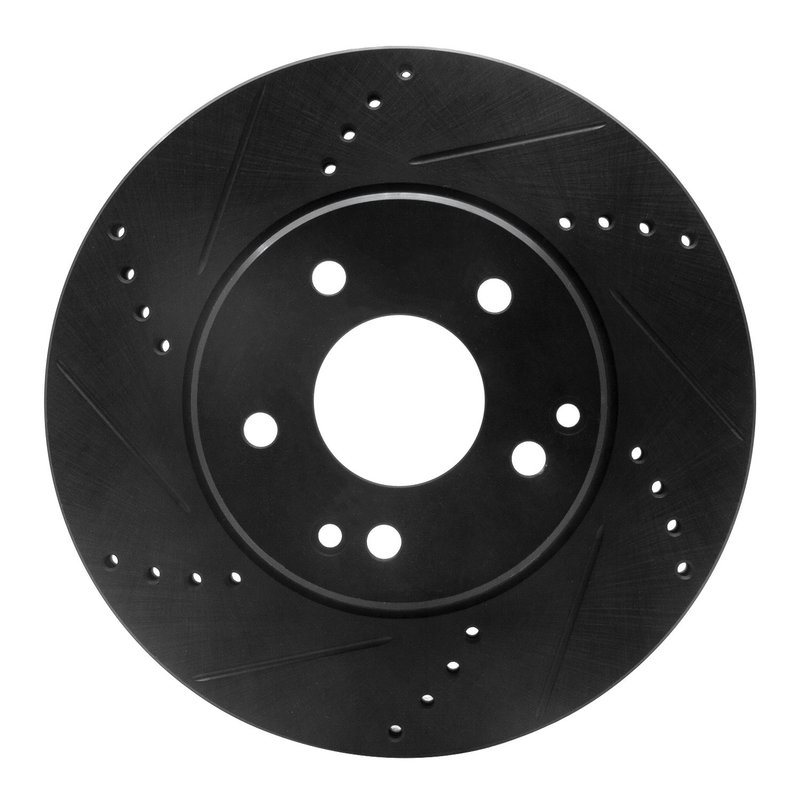

Dynamite Friction 633-63047L Disc Brake Rotor - Front Left

Overview of the DFC Brake Rotor - Drilled and Slotted - Black

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-63047L) is engineered for select Mercedes-Benz models including the C230, C240, C280, E300, SLK200, and SLK230. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Mercedes-Benz C230, C240, C280, E300, SLK200, SLK230
• Part number 633-63047L
• Vented disc brake rotor with drilled and slotted surface
• Directional brake surface for optimized braking
• Rust resistant zinc black hat finish
• 5 bolt holes with 112 mm bolt circle diameter
• Nominal thickness of 25 mm and discard thickness of 22.4 mm
• Outside diameter of 288 mm and overall height of 46.5 mm

Details on the DFC Brake Rotor - Drilled and Slotted - Black Line

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction focuses on rotors that combine drilled holes and slots on the braking surface. This design improves water and gas evacuation during braking, reducing brake fade and maintaining consistent stopping power. The black zinc coating on the rotor hat provides corrosion resistance, extending the rotor's service life in various driving conditions.

Technical Specifications and Features

This disc brake rotor is vented to allow better heat dissipation, which helps prevent overheating during heavy braking. The rotor’s directional surface pattern, featuring both drilled holes and slots, is engineered to improve pad bite and reduce brake dust buildup. The rotor measures 288 mm in outside diameter with a nominal thickness of 25 mm and a discard thickness of 22.4 mm, ensuring it meets OEM standards for durability and performance. The zinc black finish on the hat offers rust resistance, while the 5-bolt hole configuration with a 112 mm bolt circle diameter ensures proper fitment on compatible Mercedes-Benz models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mercedes-Benz C230, C240, C280, E300, SLK200, SLK230
• Improves braking performance by reducing heat buildup and brake fade
• Addresses brake noise and vibration caused by uneven rotor surfaces
• Helps maintain consistent stopping power in wet or humid conditions
• Prevents rust and corrosion on rotor hats for longer service life

Installation Notes and Tips

Ensure the rotor thickness is within the nominal and discard thickness specifications before installation. The 5-lug bolt pattern with a 112 mm bolt circle diameter must match the vehicle’s hub. Clean the rotor surface to remove any protective coating before mounting to ensure proper pad contact. It is recommended to inspect brake pads and hardware during rotor replacement to maintain optimal braking system performance.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC Brake Rotor - Drilled and Slotted - Black to meet or exceed OEM specifications for Mercedes-Benz vehicles. The rust resistant zinc black finish on the rotor hat enhances durability. While specific warranty details are not provided, Dynamite Friction products typically undergo rigorous quality control to ensure reliable performance and fitment for the listed Mercedes-Benz models.
