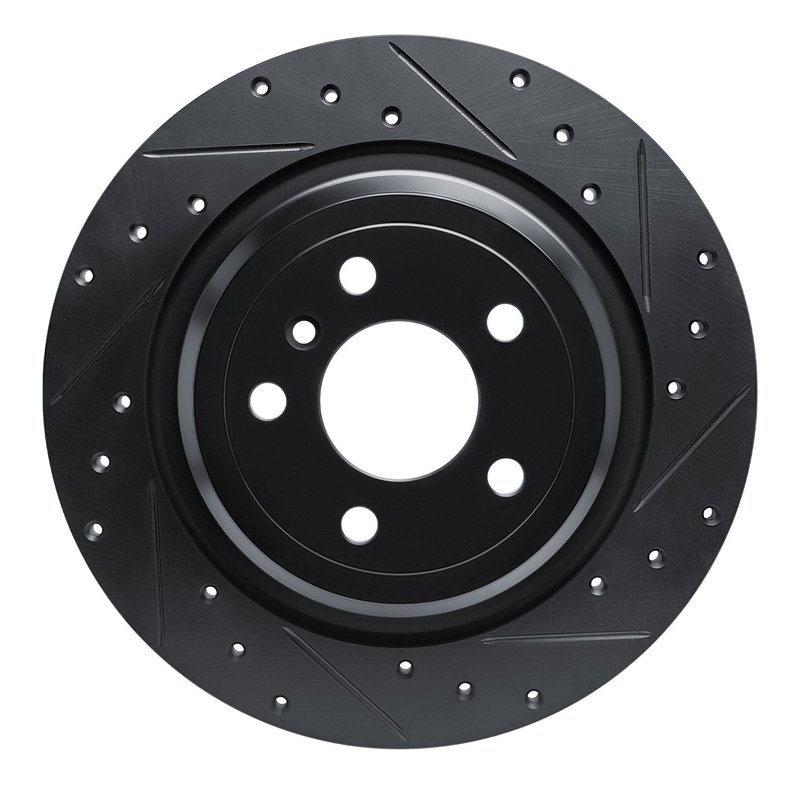

Dynamite Friction 633-63143R Disc Brake Rotor - Rear Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-63143R) is engineered for Mercedes-Benz models including the GLE300d, GLE350, GLE350d, GLE400, ML250, and ML350. This solid disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Mercedes-Benz GLE and ML series vehicles
• Directional slotted and drilled surface for improved brake cooling
• Solid rotor design with zinc black hat finish for corrosion resistance
• Rust resistant coating extends rotor life
• 5 bolt holes with 112 mm bolt circle diameter
• Nominal thickness of 14 mm and discard thickness of 11.4 mm
• Outside diameter of 325 mm and overall height of 54.2 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction offers rotors with a combination of drilled holes and slots on the braking surface. This design helps to reduce brake fade by improving heat dissipation and gas evacuation during braking. The black zinc finish on the rotor hat provides additional protection against rust and corrosion, making it suitable for vehicles exposed to varying weather conditions. This product line focuses on delivering reliable braking performance for specific Mercedes-Benz models.

Technical Specifications and Features

This disc brake rotor is a solid type with a directional braking surface, featuring both drilled holes and slots to optimize braking efficiency. The rotor has a nominal thickness of 14 mm and a discard thickness of 11.4 mm, ensuring safe replacement intervals. The rotor’s outside diameter measures 325 mm, with an overall height of 54.2 mm. The zinc black finish on the hat and rust resistant coating help maintain rotor integrity over time. It includes 5 bolt holes with a bolt circle diameter of 112 mm, matching the stud/lug hole pattern of the compatible Mercedes-Benz models.

Applications and Problem Solving

• Reduces brake fade during heavy braking or towing
• Improves heat dissipation to prevent rotor warping
• Helps maintain consistent braking performance in wet conditions
• Resists rust and corrosion for longer service life
• Restores proper braking function on Mercedes-Benz GLE and ML series vehicles

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 11.4 mm before installation. Clean the hub surface to prevent uneven rotor mounting. Use proper torque specifications for the 5 lug bolts with a 112 mm bolt circle diameter. The directional slotted and drilled surface should be installed following the rotation direction indicated on the rotor to maintain optimal performance.

Quality Assurance

Dynamite Friction manufactures this rotor to meet OEM specifications for Mercedes-Benz vehicles. The rust resistant coating and zinc black hat finish contribute to durability and corrosion resistance. Please refer to the manufacturer’s warranty information for coverage details.
