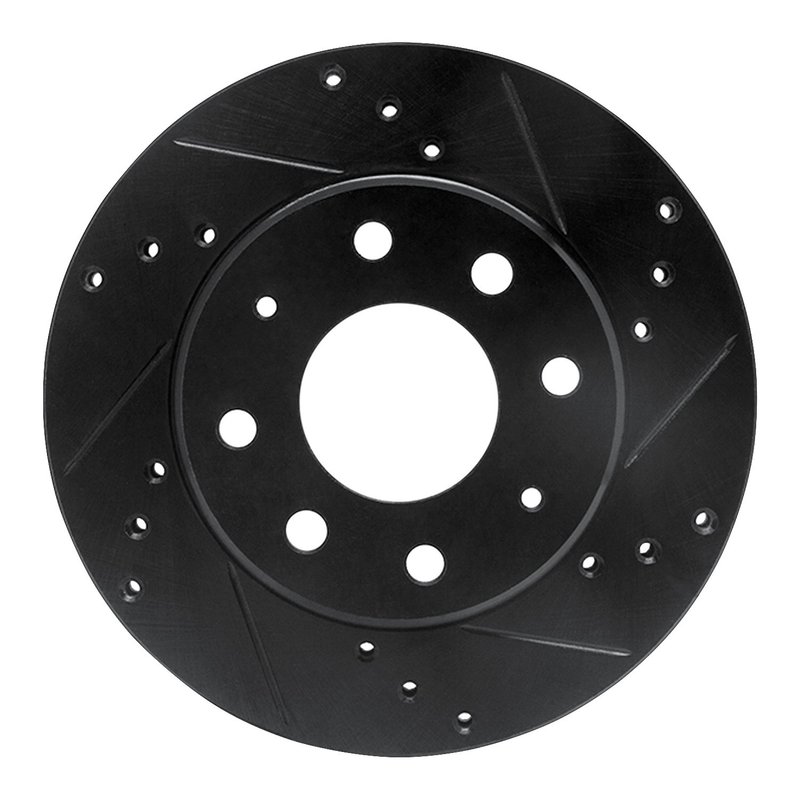

Dynamite Friction 633-72022R Disc Brake Rotor - Front Right

Overview of the DFC Brake Rotor - Drilled and Slotted - Black

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-72022R) is engineered for reliable braking performance on select Hyundai and Mitsubishi vehicles. Designed with a vented, directional surface, this rotor enhances heat dissipation and braking consistency for models like the Hyundai Elantra and Mitsubishi Lancer.

• Disc type: Vented disc brake rotor with drilled and slotted surface
• Nominal thickness: 24.5 mm with discard thickness at 22.4 mm
• Overall height: 45.7 mm; outside diameter: 257 mm
• Hat finish: Zinc black coating for corrosion resistance
• Rust resistant coating applied for extended durability
• Bolt hole quantity: 4 with a bolt circle diameter of 114.3 mm
• Directional brake surface optimized for heat and debris management

About the DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction focuses on rotors that combine drilled holes and slots to improve brake pad bite and reduce heat buildup. The black zinc coating on the hat area provides additional protection against rust, making these rotors suitable for vehicles exposed to varying weather conditions. This product line is designed to meet the demands of daily driving and moderate performance needs.

Detailed Product Description

This disc brake rotor features a vented design that promotes airflow between the rotor surfaces, helping to dissipate heat generated during braking. The drilled and slotted surface improves water and gas evacuation, reducing brake fade and maintaining consistent stopping power. With a nominal thickness of 24.5 mm and a discard thickness of 22.4 mm, the rotor ensures a balance between durability and performance. The zinc black hat finish and rust resistant coating extend the rotor's lifespan by protecting against corrosion. The rotor is directional, meaning it must be installed in the correct orientation to maximize its performance benefits.

Compatible Vehicles and Common Applications

• Replacement rotor for Hyundai Elantra and Sonata models
• Suitable for Mitsubishi Lancer, Galant, Sigma, Expo, Expo LRV, Space Star, and Tiburon
• Addresses issues such as brake fade during extended use
• Helps reduce rotor warping caused by excessive heat
• Improves braking response in wet or humid conditions

Installation Notes and Tips

• Ensure rotor is installed with the directional surface facing the correct rotation direction
• Verify bolt hole alignment with vehicle hub using the 4-bolt pattern and 114.3 mm bolt circle diameter
• Check rotor thickness before installation to confirm it meets minimum discard thickness of 22.4 mm
• Clean rotor surface before installation to remove any protective coatings or residues

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet or exceed OEM specifications for fit and function. The rust resistant coating and zinc black hat finish contribute to long-term durability. While specific warranty details are not provided, the rotor is designed for reliable performance on compatible Hyundai and Mitsubishi vehicles when installed and maintained properly.
