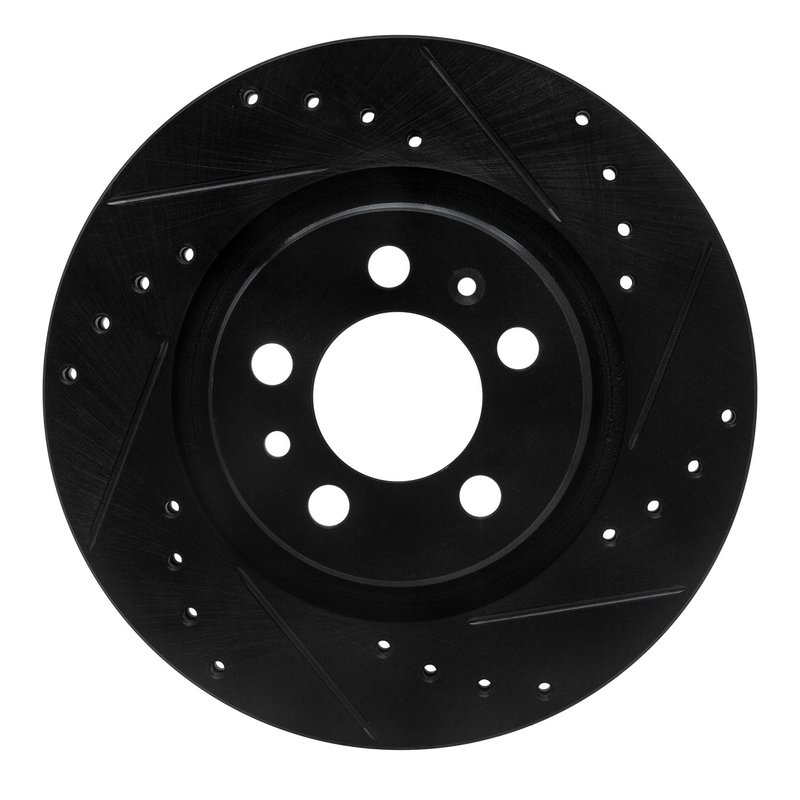

Dynamite Friction 633-74016R Disc Brake Rotor - Front Right

Overview of DFC Brake Rotor - Drilled and Slotted - Black

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-74016R) is engineered for Volkswagen vehicles including Beetle, Golf, Golf City, and Jetta models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Volkswagen Beetle, Golf, Golf City, and Jetta
• Part Number: 633-74016R
• Vented disc brake rotor with drilled and slotted surface
• Directional brake surface for optimized performance
• Rust resistant zinc black hat finish
• Nominal thickness: 22 mm; discard thickness: 19 mm
• 5 bolt holes with 100 mm bolt circle diameter
• Overall height: 36.7 mm; outside diameter: 280 mm

Detailed Product Features and Specifications

This DFC Brake Rotor - Drilled and Slotted - Black is constructed with a vented design to improve airflow and reduce heat buildup during braking. The rotor surface is both drilled and slotted, which helps to evacuate gases, dust, and water, maintaining consistent brake pad contact and reducing brake fade. The directional surface pattern is engineered to optimize braking efficiency and performance on Volkswagen models such as the Beetle and Golf.

The rotor’s nominal thickness is 22 mm, with a discard thickness of 19 mm, ensuring safe and reliable use within specified wear limits. The zinc black coating on the hat provides corrosion resistance, extending the rotor’s service life. With 5 bolt holes and a 100 mm bolt circle diameter, this rotor fits securely on compatible Volkswagen vehicles. The center hole diameter measures 65 mm, and the stud/lug hole diameter is 15.8 mm, matching factory specifications.

DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction focuses on rotors that combine drilled holes and slots with a corrosion-resistant black zinc finish. This product line is designed to provide enhanced heat dissipation and improved braking response for vehicles requiring reliable stopping power under various driving conditions. The black zinc hat finish also offers added protection against rust, making it suitable for Volkswagen models that encounter diverse weather environments.

Applications and Problem Solving

• Reduces brake fade caused by heat buildup during aggressive or repeated braking
• Improves water and debris evacuation for consistent braking in wet conditions
• Minimizes brake dust accumulation on rotor surface
• Prevents rust and corrosion on the rotor hat for longer service life
• Restores braking performance on Volkswagen Beetle, Golf, Golf City, and Jetta models

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 19 mm before installation. Clean the rotor surface to remove any protective coating or residue prior to mounting. Verify bolt hole alignment with the vehicle’s hub using the 5-bolt, 100 mm bolt circle pattern. Properly torque lug nuts to manufacturer specifications to avoid rotor warping. Directional rotors must be installed with the rotation arrow pointing in the correct direction of wheel rotation.

Quality Assurance

Dynamite Friction manufactures the 633-74016R rotor to meet or exceed OEM specifications for Volkswagen vehicles. The rust-resistant zinc black finish and vented design contribute to durability and consistent braking performance. While no specific warranty information is provided, this rotor is engineered for reliable service life when installed and maintained according to manufacturer guidelines.
