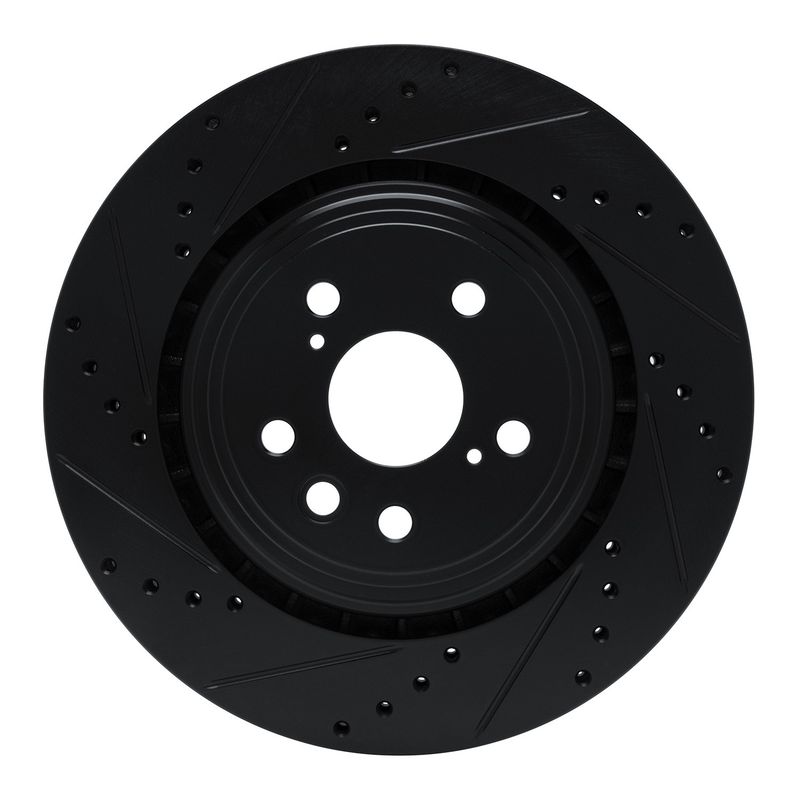

Dynamite Friction 633-75066L Disc Brake Rotor - Front Left

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (Part Number 633-75066L) is engineered for reliable braking performance on select Lexus and Toyota models. Designed specifically for vehicles like the Toyota Highlander and Lexus RX350/RX350h, this rotor combines vented construction with a directional, drilled and slotted surface to enhance heat dissipation and braking consistency.

• Vented disc brake rotor with drilled and slotted surface
• Nominal thickness of 28 mm and discard thickness of 25 mm
• Directional brake surface for optimized performance
• 340 mm outside diameter and 49.7 mm height
• 5 bolt holes with a bolt circle diameter of 114.3 mm
• Center hole diameter of 62 mm for precise fitment
• Plain disc finish with black coating

Details on the DFC Brake Rotor - Drilled and Slotted - Black Line

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction focuses on rotors that feature both drilled holes and slots on the braking surface. This design improves water and gas evacuation during braking, reducing the risk of brake fade under demanding conditions. The black finish provides corrosion resistance while maintaining a clean appearance. This rotor line is vented to allow better heat dissipation, which helps maintain consistent braking performance over time.

Technical Specifications and Features

This rotor is a vented type, which means it has internal vanes between the two braking surfaces to improve airflow and cooling. The directional surface pattern, combining drilled holes and slots, is engineered to channel away debris and moisture effectively. With a nominal thickness of 28 mm and a discard thickness of 25 mm, it ensures a safe wear limit for replacement. The rotor’s 5-lug bolt pattern with a 114.3 mm bolt circle diameter and a 62 mm center hole diameter ensures compatibility with the specified Lexus and Toyota models.

Compatible Vehicles and Applications

• Toyota Highlander (various model years)
• Lexus RX350
• Lexus RX350h (hybrid)

This rotor is designed to replace factory disc brake rotors on these vehicles, providing consistent braking performance and improved heat management for daily driving and moderate performance needs.

Common Issues Addressed by This Rotor

• Brake fade caused by overheating during extended braking
• Uneven brake pad wear due to poor heat dissipation
• Reduced braking efficiency in wet conditions
• Vibration or noise from warped or worn rotors
• Corrosion and surface degradation over time

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it is above the discard thickness of 25 mm. Clean the rotor surface to remove any protective coating before mounting. Use proper torque specifications for the 5-lug bolt pattern with a 114.3 mm bolt circle diameter. Verify the directional drilled and slotted surface is installed facing the correct rotation direction for optimal performance. It is recommended to replace brake pads when installing new rotors to maintain braking system balance.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet or exceed OEM specifications for fit, form, and function. While specific warranty details are not provided, Dynamite Friction products typically undergo rigorous quality control to ensure durability and performance. Always consult product documentation or the manufacturer for warranty coverage information.
