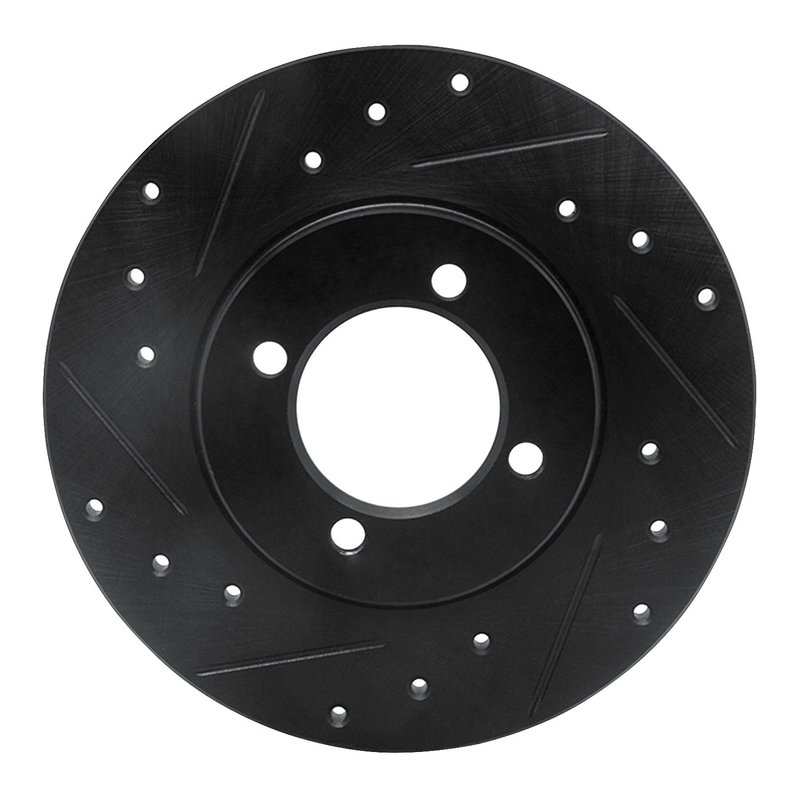

Dynamite Friction 633-76006L Disc Brake Rotor - Front Left

Overview of the DFC Brake Rotor for Toyota Corolla

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-76006L) is engineered specifically for Toyota Corolla models. This solid disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Toyota Corolla vehicles
• Part Number: 633-76006L
• Solid rotor with drilled and slotted surface
• Zinc black hat finish with rust-resistant coating
• Directional brake surface for optimized performance
• 4 bolt holes and 4 stud/lug holes with 87mm bolt circle diameter
• Nominal thickness of 12.5mm and discard thickness of 11.5mm
• Outside diameter of 229mm and overall height of 23mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction offers rotors designed with enhanced surface features such as drilled holes and slots to improve heat dissipation and reduce brake fade. The black zinc coating on the rotor hat provides corrosion resistance, extending the rotor's service life. This product line focuses on solid rotors with directional braking surfaces, suitable for vehicles like the Toyota Corolla requiring reliable stopping power under varied driving conditions.

Technical Specifications and Features

This disc brake rotor is constructed as a solid rotor with a nominal thickness of 12.5mm and a discard thickness of 11.5mm, ensuring durability and safety margins. The rotor's surface is both drilled and slotted, which helps to evacuate gases and debris from the braking surface, improving pad contact and braking consistency. The directional surface design optimizes braking efficiency by channeling heat and particles away from the rotor face.

The rotor measures 229mm in outside diameter with an overall height of 23mm. It features a zinc black finish on the hat area, which is treated with a rust-resistant coating to protect against corrosion. The rotor includes 4 bolt holes and 4 stud/lug holes, each with a diameter of 10.6mm, arranged on an 87mm bolt circle diameter, and a center hole diameter of 64mm, ensuring precise fitment on compatible Toyota Corolla models.

Applications and Problem Solving

• Replacement for worn or warped brake rotors on Toyota Corolla
• Improves heat dissipation to reduce brake fade during heavy braking
• Helps eliminate brake noise and vibration caused by uneven rotor surfaces
• Prevents rust and corrosion buildup on rotor hats for longer service life
• Maintains consistent braking performance under varied driving conditions

Installation Notes and Tips

Ensure the rotor is compatible with your specific Toyota Corolla model year before installation. Clean the rotor surface to remove any protective coatings or residues prior to mounting. Use proper torque specifications for the 4 bolt holes and 4 stud/lug holes to secure the rotor firmly. Verify that the directional surface is installed correctly according to the rotation direction indicated on the rotor. Inspect brake pads for wear and replace if necessary to maximize braking performance.

Quality Assurance and Warranty

Dynamite Friction manufactures the 633-76006L rotor to meet or exceed OEM specifications for fit, form, and function. The rust-resistant zinc black coating on the rotor hat enhances durability against corrosion. While specific warranty details are not provided, Dynamite Friction products typically undergo rigorous quality control to ensure reliable performance and safety for Toyota Corolla brake systems.
