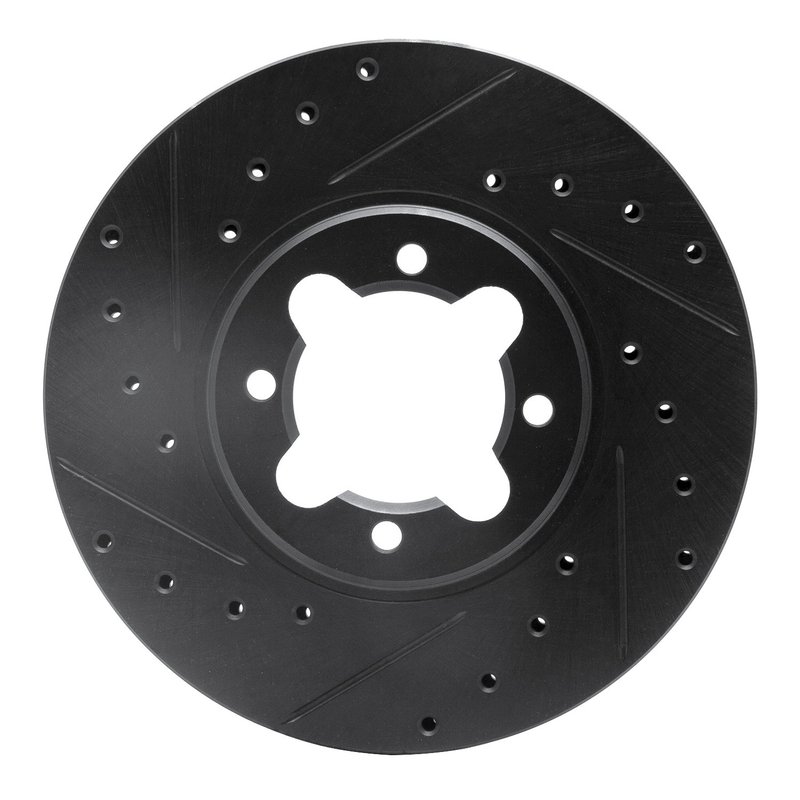

Dynamite Friction 633-76013L Disc Brake Rotor - Front Left

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-76013L) is engineered for Toyota Celica models requiring reliable braking performance. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance heat dissipation and maintain consistent stopping power.

• Compatible with Toyota Celica vehicles
• Directional slotted and drilled surface for improved brake cooling
• Vented rotor design to reduce heat buildup
• Zinc black hat finish with rust-resistant coating
• Nominal thickness of 20 mm with discard thickness at 19 mm
• Four bolt holes with a 100 mm bolt circle diameter
• Outside diameter of 258 mm and overall height of 26 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and slots to improve brake pad bite and reduce gas buildup during braking. The black zinc coating on the rotor hat provides corrosion resistance, extending rotor life in various driving conditions. This product line is designed to meet the demands of drivers seeking enhanced braking performance and durability for their Toyota Celica.

Technical Specifications and Features

This disc brake rotor is vented to allow air circulation between the rotor surfaces, which helps dissipate heat generated during braking. The rotor’s directional slotted and drilled surface improves water and debris evacuation, reducing brake fade and maintaining consistent friction. The rotor’s nominal thickness is 20 mm, with a discard thickness of 19 mm, ensuring safe replacement intervals. The zinc black finish on the hat section offers rust resistance, while the plain disc finish maintains a smooth braking surface. The rotor features four bolt holes with a 100 mm bolt circle diameter and a center hole diameter of 76 mm, matching Toyota Celica specifications.

Applications and Problem Solving

• Replacement rotor for worn or warped Toyota Celica brake rotors
• Improves heat dissipation to reduce brake fade during aggressive driving
• Helps prevent rust and corrosion on rotor hats for longer service life
• Enhances braking performance in wet conditions with slotted and drilled design
• Maintains consistent braking feel by reducing gas buildup between pad and rotor

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 19 mm before installation. Clean the rotor surface to remove any protective coatings or debris prior to mounting. Verify bolt hole alignment with the Toyota Celica hub using the 100 mm bolt circle diameter and 4-bolt pattern. Proper torque specifications should be followed to avoid rotor warping. It is recommended to replace brake pads when installing new rotors to ensure optimal braking performance.

Quality Assurance

Dynamite Friction manufactures this rotor to meet OEM fitment and performance standards for Toyota Celica vehicles. The rust-resistant zinc black coating on the rotor hat enhances durability against corrosion. While no specific warranty information is provided, the rotor’s design and materials support reliable braking performance under normal operating conditions.
