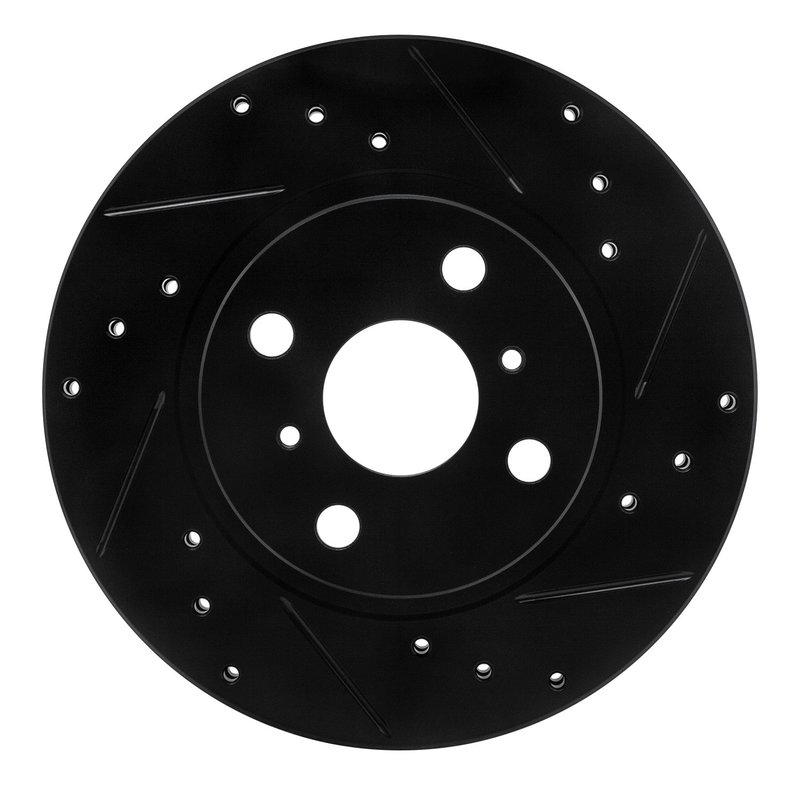

Dynamite Friction 633-76032R Disc Brake Rotor - Front Right

Overview of DFC Brake Rotor - Drilled and Slotted - Black

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-76032R) is engineered for reliable braking performance on select Geo and Toyota vehicles. Designed specifically for models like the Corolla, MR2, and Prizm, this vented disc brake rotor offers enhanced heat dissipation and improved stopping power.

• Compatible with Geo Corolla, Toyota Corolla, Toyota MR2, and Geo Prizm
• Part number 633-76032R for precise identification
• Drilled and slotted directional surface for optimized brake pad contact
• Vented rotor design to reduce heat buildup during braking
• Rust-resistant zinc black hat finish for durability
• Nominal thickness of 22 mm with discard thickness at 21 mm
• Four bolt holes with a 100 mm bolt circle diameter
• Overall diameter of 258 mm and center hole diameter of 54 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction focuses on rotors that combine drilled holes and slots on the braking surface. This design helps to evacuate gases, dust, and water more efficiently, which can improve braking consistency and reduce fade. The black zinc coating on the rotor hat provides corrosion resistance, extending the rotor's service life in various driving conditions.

Technical Specifications and Features

This disc brake rotor features a vented design that allows air to flow between the rotor surfaces, helping to dissipate heat generated during braking. The rotor's surface is both drilled and slotted, which enhances pad bite and helps maintain clean contact surfaces. The directional brake surface ensures proper rotation alignment for optimal performance. With a nominal thickness of 22 mm and a discard thickness of 21 mm, this rotor maintains structural integrity while providing a clear wear limit. The zinc black finish on the hat section offers rust resistance, contributing to long-term durability.

Applications and Problem Solving

• Replacement rotor for worn or warped rotors on Geo Corolla, Toyota MR2, and Prizm
• Improves heat dissipation to reduce brake fade during aggressive or repeated braking
• Helps maintain consistent braking performance in wet or dusty conditions
• Addresses rotor corrosion issues with rust-resistant coating
• Restores proper braking surface for improved pad contact and stopping power

Installation Notes and Tips

Ensure the rotor is installed with the directional surface rotating correctly according to the vehicle’s specifications. Verify bolt hole alignment with the 4-bolt, 100 mm bolt circle diameter pattern. Measure rotor thickness before installation to confirm it meets or exceeds the discard thickness of 21 mm. Clean the rotor surface to remove any protective coatings or residues before mounting brake pads. Proper torque specifications should be followed for all fasteners.

Quality Assurance

Dynamite Friction manufactures this rotor to meet or exceed OEM standards for fit and function on compatible Geo and Toyota models. The rust-resistant zinc black finish and vented rotor design contribute to durability and consistent braking performance. While no specific warranty information is provided, the rotor is engineered for reliable service life under normal operating conditions.
