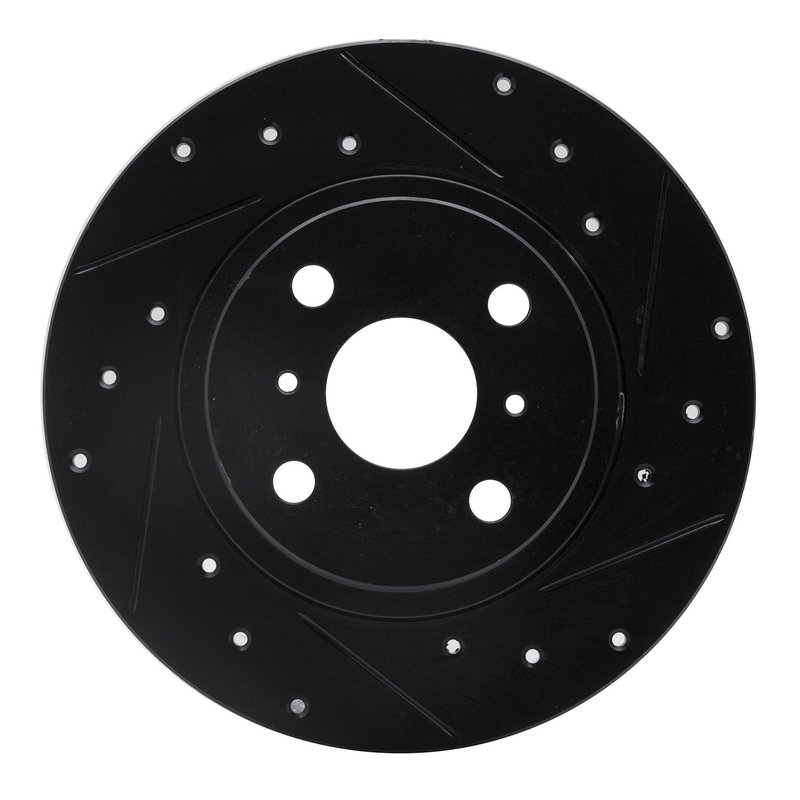

Dynamite Friction 633-76037R Disc Brake Rotor - Rear Right

Overview of the DFC Brake Rotor for Toyota MR2

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-76037R) is engineered specifically for Toyota MR2 models. This solid disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation under demanding conditions.

• Nominal thickness: 10 mm with a discard thickness of 9 mm
• Overall height and rotor height: 40 mm
• Outside diameter: 263 mm
• Solid rotor type with directional drilled and slotted surface
• Hat finish in zinc black with rust-resistant coating
• 4 bolt holes and 4 stud/lug holes with 100 mm bolt circle diameter
• Center hole diameter: 54 mm
• Stud/lug hole diameter: 14.5 mm

About the DFC Brake Rotor - Drilled and Slotted - Black Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction offers rotors designed for improved heat management and consistent braking performance. The drilled and slotted surface pattern helps reduce brake fade by allowing gases and debris to escape, while the zinc black hat finish provides corrosion resistance. This product line is tailored for drivers seeking reliable stopping power with enhanced rotor durability.

Product Details and Specifications

This disc brake rotor is a solid type, measuring 263 mm in outside diameter and 40 mm in height, suitable for the Toyota MR2. The rotor’s directional slotted and drilled surface improves water and dust evacuation, which helps maintain consistent brake pad contact and reduces the risk of glazing. The zinc black hat finish combined with a rust-resistant coating extends the rotor’s service life by protecting against corrosion. The rotor features a 4-bolt hole pattern with a 100 mm bolt circle diameter, matching the MR2’s wheel hub specifications precisely.

Applications and Problem Solving

• Compatible with Toyota MR2 models requiring replacement disc brake rotors
• Addresses brake fade caused by overheating during aggressive driving or heavy braking
• Helps reduce rotor surface glazing and brake dust buildup
• Improves braking consistency in wet or dusty conditions
• Prevents premature rotor corrosion with rust-resistant coating

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 9 mm before installation. Clean the rotor surface to remove any protective oils or residues prior to mounting. Verify the 4-bolt hole pattern and 100 mm bolt circle diameter match the vehicle hub. Proper torque specifications should be followed when securing the rotor to avoid warping. It is recommended to replace brake pads simultaneously for optimal braking performance.

Quality Assurance

Dynamite Friction manufactures this rotor to meet OEM specifications for the Toyota MR2. The rust-resistant coating and zinc black hat finish contribute to long-term durability. While no specific warranty information is provided, the rotor is designed for reliable performance and corrosion resistance under normal operating conditions.
