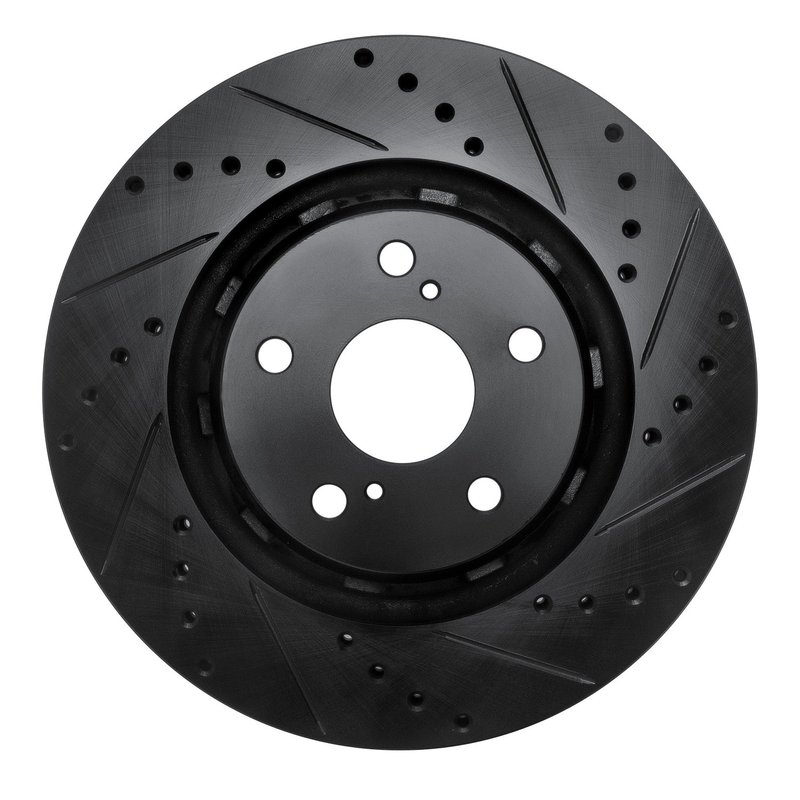

Dynamite Friction 633-76085R Disc Brake Rotor - Front Right

Overview of the DFC Brake Rotor for Toyota Venza

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-76085R) is engineered specifically for Toyota Venza models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance braking performance and heat dissipation under demanding conditions.

• Compatible with Toyota Venza vehicles
• Directional drilled and slotted surface for improved brake pad contact
• Vented rotor design for enhanced cooling
• Rust-resistant zinc black hat finish
• 5 bolt holes with 114.3 mm bolt circle diameter
• Nominal thickness of 28 mm and discard thickness of 26 mm
• Overall diameter of 324 mm and height of 49.5 mm

Features of the DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black is part of Dynamite Friction's DFC product line, which focuses on delivering rotors with enhanced surface designs for improved braking efficiency. The drilled and slotted pattern helps to evacuate gases, dust, and water from the rotor surface, reducing brake fade and maintaining consistent stopping power. The black zinc coating on the rotor hat provides corrosion resistance, extending the rotor's service life in various driving environments.

Technical Specifications and Design Details

This disc brake rotor is vented, allowing air to flow between the rotor faces to dissipate heat more effectively during braking. The rotor has a nominal thickness of 28 mm and a discard thickness of 26 mm, ensuring it meets safety standards for wear limits. The rotor's outside diameter measures 324 mm, with an overall height of 49.5 mm. It features a 5-lug bolt pattern with a 114.3 mm bolt circle diameter and 14.6 mm stud hole diameter, matching the Toyota Venza's factory specifications. The directional surface type ensures the drilled and slotted pattern is optimized for rotation direction, improving brake pad bite and reducing noise.

Applications and Problem Solving

• Replaces worn or warped rotors on Toyota Venza models
• Reduces brake fade during heavy braking or towing
• Improves water and debris evacuation for consistent braking in wet conditions
• Minimizes rust and corrosion on rotor hats for longer durability
• Enhances overall brake system performance with vented design

Installation Notes and Tips

Ensure the rotor is installed with the directional surface pattern oriented correctly according to the vehicle's rotation direction. Verify that the rotor thickness is within the nominal range before installation and replace if below discard thickness. Use proper torque specifications for the 5-lug bolt pattern to avoid rotor warping. It is recommended to inspect brake pads and hardware during rotor replacement to maintain optimal braking performance.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC Brake Rotor - Drilled and Slotted - Black to meet or exceed OEM specifications for fit and function on Toyota Venza vehicles. The rotor includes a rust-resistant coating to enhance longevity. Warranty details are provided by the manufacturer and should be confirmed at the time of purchase.
