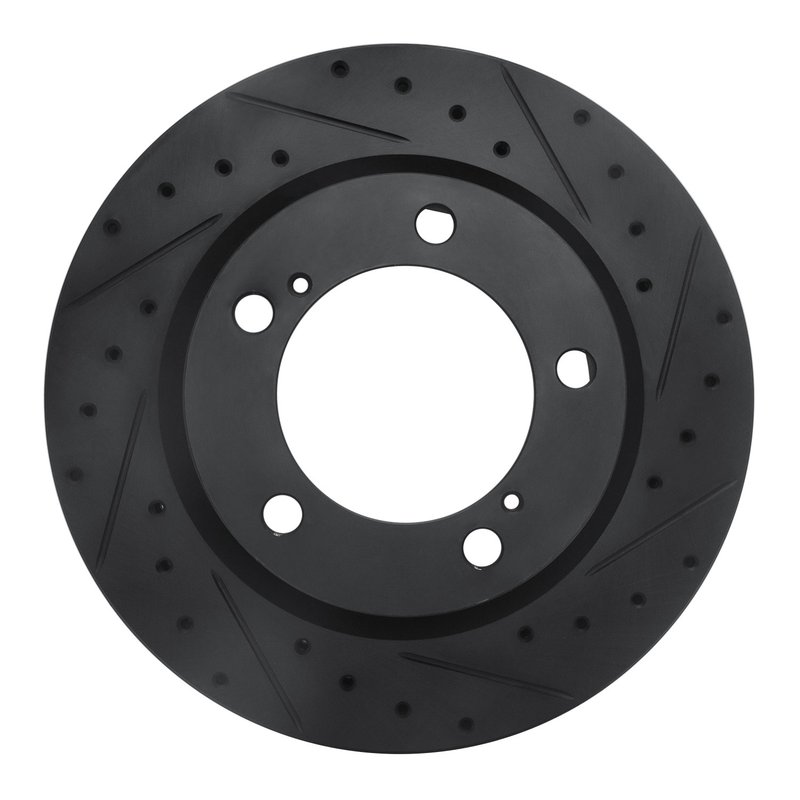

Dynamite Friction 633-76140R Disc Brake Rotor - Front Right

Overview of DFC Brake Rotor for Lexus and Toyota

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-76140R) is engineered for reliable braking performance on Lexus Land Cruiser and Toyota LX570 models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance heat dissipation and maintain consistent stopping power.

• Compatible with Lexus Land Cruiser and Toyota LX570
• Part number 633-76140R for precise identification
• Vented rotor design for improved cooling
• Directional drilled and slotted surface for enhanced brake pad bite and debris removal
• Rust-resistant zinc black hat finish
• 5 bolt holes with 150mm bolt circle diameter
• Nominal thickness of 32mm and discard thickness of 29mm
• Overall diameter of 340mm and height of 83.3mm

Detailed Product Features and Specifications

This DFC Brake Rotor - Drilled and Slotted - Black is constructed with a vented rotor design that promotes airflow to reduce heat buildup during braking. The rotor’s surface is both drilled and slotted in a directional pattern, which helps to evacuate gases, dust, and water from the braking surface, improving pad contact and braking consistency. The rotor’s nominal thickness is 32mm, with a discard thickness of 29mm, ensuring durability and safety over its service life.

The rotor features a plain disc finish combined with a zinc black coating on the hat to resist rust and corrosion, extending the rotor’s lifespan. It includes five bolt holes with a bolt circle diameter of 150mm and a center hole diameter of 112mm, matching the factory specifications for Lexus Land Cruiser and Toyota LX570 models. The stud/lug hole diameter is 16.6mm, designed for secure mounting.

About the DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine performance-oriented surface treatments with corrosion-resistant finishes. This product line is designed to provide enhanced braking efficiency and durability for vehicles requiring reliable stopping power under various driving conditions. The drilled and slotted design improves heat dissipation and pad cleaning, while the black zinc coating on the hat offers protection against rust.

Applications and Problem Solving

• Improves braking performance on Lexus Land Cruiser and Toyota LX570 vehicles
• Reduces brake fade caused by excessive heat buildup
• Helps prevent rotor warping and cracking under heavy braking
• Minimizes rust and corrosion on rotor hats for longer service life
• Enhances brake pad bite and debris removal for consistent stopping power

Installation Notes and Tips

Ensure the rotor is installed on compatible Lexus Land Cruiser or Toyota LX570 models matching the specified bolt pattern and dimensions. Verify the rotor thickness before installation; replace if below the discard thickness of 29mm. Clean the rotor surface to remove any protective coatings or residues before mounting. Proper torque specifications should be followed for the 5 bolt holes to ensure secure fitment.

Quality Assurance and Warranty

Dynamite Friction manufactures the 633-76140R rotor to meet OEM standards for fit and function. The rust-resistant zinc black finish and vented design contribute to the rotor’s durability. Warranty details are subject to the manufacturer’s terms and should be confirmed at the time of purchase.
