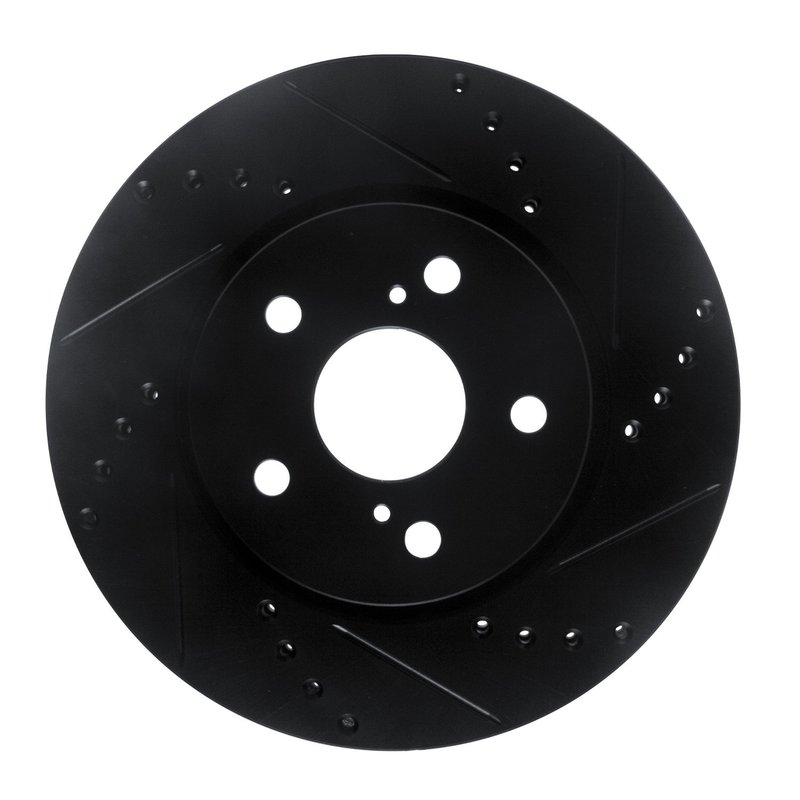

Dynamite Friction 633-76153R Disc Brake Rotor - Front Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-76153R) is engineered for Toyota C-HR models requiring reliable braking performance. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance heat dissipation and maintain consistent stopping power under demanding conditions.

• Compatible with Toyota C-HR vehicles
• Directional slotted and drilled surface for improved brake cooling
• Vented rotor design to reduce heat buildup
• Black zinc-coated hat finish for corrosion resistance
• Nominal thickness of 28 mm with a discard thickness of 25 mm
• Five bolt holes with a 114.3 mm bolt circle diameter
• Outside diameter of 299 mm and height of 49.6 mm
• Center hole diameter of 62 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and precision slots to optimize brake pad contact and heat dissipation. The black zinc coating on the rotor hat enhances rust resistance, extending rotor life in various driving environments. This product line is designed to meet the specific braking needs of vehicles like the Toyota C-HR, providing a balance of durability and performance.

Technical Description and Specifications

This disc brake rotor is vented to allow air to flow between the rotor surfaces, which helps reduce brake fade caused by excessive heat. The directional slotted and drilled surface improves water and debris evacuation, maintaining effective braking in wet or dirty conditions. The rotor’s nominal thickness is 28 mm, with a discard thickness of 25 mm, ensuring safe replacement intervals. The zinc black finish on the hat offers additional protection against corrosion, which is critical for maintaining rotor integrity over time. With five bolt holes and a bolt circle diameter of 114.3 mm, this rotor fits securely on the Toyota C-HR hub assembly.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota C-HR models
• Improves brake cooling to reduce fade during heavy braking
• Addresses rotor corrosion issues with rust-resistant coating
• Enhances braking performance in wet or debris-prone environments
• Maintains consistent brake pad contact with slotted and drilled design

Installation Notes and Tips

Ensure the rotor thickness is measured before installation; replace if below the discard thickness of 25 mm. Clean the hub surface to prevent rotor runout and ensure proper fitment. Use the correct torque specifications for the five lug bolts to secure the rotor. The directional surface requires installation in the correct rotation direction for optimal performance. Always inspect brake pads and hardware during rotor replacement for best results.

Quality Assurance

Dynamite Friction rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The rust-resistant zinc black coating on the rotor hat helps extend service life. While no specific warranty information is provided, the product is designed for durability and consistent braking performance on Toyota C-HR vehicles.
