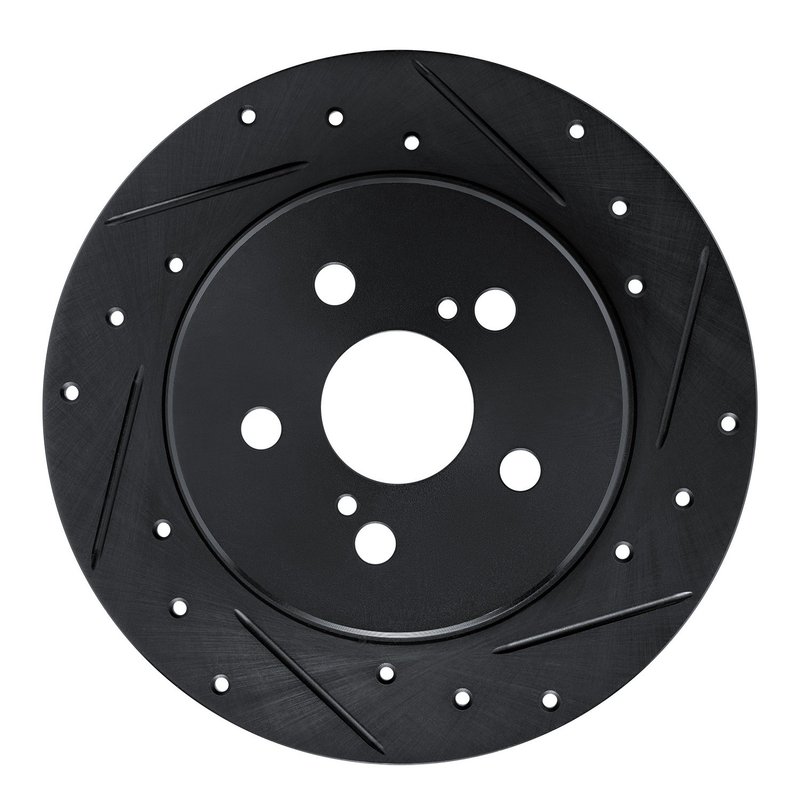

Dynamite Friction 633-76156R Disc Brake Rotor - Rear Right

Overview of DFC Brake Rotor for Toyota Corolla

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-76156R) is engineered specifically for Toyota Corolla models. This disc brake rotor combines drilled and slotted surface features with a rust-resistant zinc black hat finish to provide reliable braking performance and durability.

• Disc type: Drilled and slotted for improved heat dissipation
• Nominal thickness: 9.9 mm with discard thickness at 8.5 mm
• Outside diameter: 265 mm
• Hat finish: Zinc black with rust-resistant coating
• Bolt hole quantity: 5 with a bolt circle diameter of 100 mm
• Directional brake surface design for optimized braking
• Center hole diameter: 55 mm
• Compatible with Toyota Corolla models

Details on the DFC Brake Rotor - Drilled and Slotted - Black Line

The DFC Brake Rotor - Drilled and Slotted - Black product line by Dynamite Friction focuses on rotors that feature both drilled holes and slots on the braking surface. This design helps to reduce brake fade by improving heat dissipation and removing debris from the rotor surface. The black zinc coating on the hat area enhances corrosion resistance, extending the rotor's service life. This line is tailored for drivers seeking a balance between performance and durability in their brake components.

Technical Specifications and Features

This disc brake rotor has a nominal thickness of 9.9 mm and a discard thickness of 8.5 mm, ensuring it meets safety standards for wear limits. The rotor's outside diameter measures 265 mm, with a height of 38 mm. It features a directional surface type with both slots and drilled holes, which aids in maintaining consistent braking performance under various driving conditions. The rotor includes five bolt holes arranged on a 100 mm bolt circle diameter, matching the Toyota Corolla's hub specifications. The zinc black hat finish provides a rust-resistant coating to protect against corrosion.

Applications and Problem Solving

• Replacement rotor for worn or warped Toyota Corolla brake rotors
• Improves heat dissipation to reduce brake fade during extended braking
• Helps remove brake dust and debris for cleaner braking surfaces
• Restores braking performance affected by rotor surface damage
• Prevents rust and corrosion on the rotor hat for longer service life

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 8.5 mm before installation. Clean the rotor surface to remove any protective coatings or oils prior to mounting. Verify the bolt hole pattern and center hole diameter (55 mm) match the vehicle hub. Use proper torque specifications for the 5 lug bolts to avoid rotor warping. Directional rotors must be installed with the correct rotation direction for optimal performance.

Quality Assurance

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-76156R) is manufactured to meet OEM specifications for Toyota Corolla vehicles. It includes a rust-resistant coating to enhance durability. Warranty information is available from the manufacturer and should be confirmed at the time of purchase.
