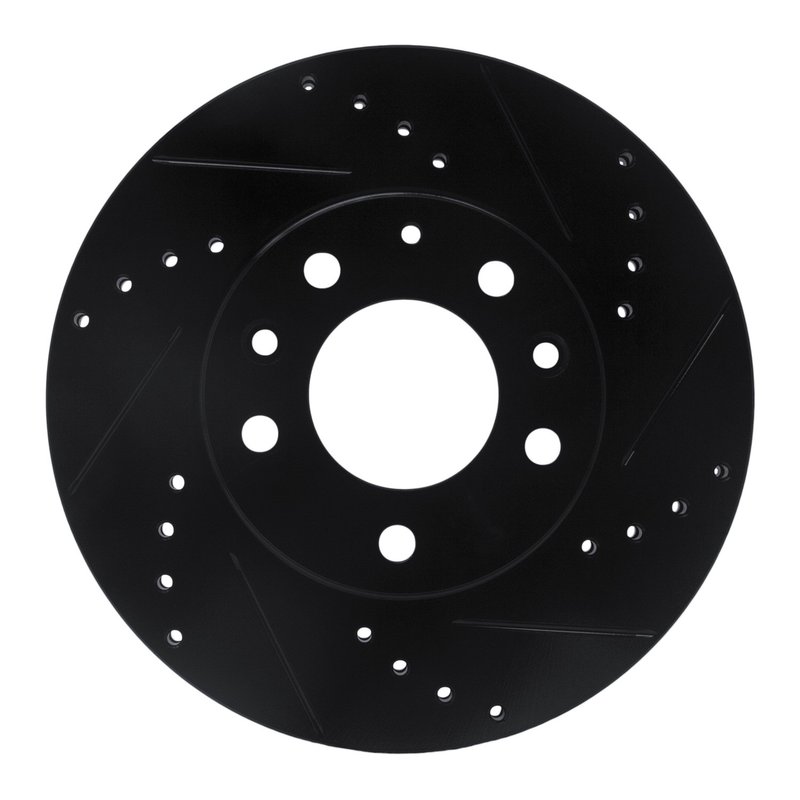

Dynamite Friction 633-80038R Disc Brake Rotor - Front Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-80038R) is engineered for Mazda 6 models requiring reliable braking performance. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance heat dissipation and maintain consistent stopping power.

• Compatible with Mazda 6 vehicles
• Directional slotted and drilled surface for improved brake cooling
• Vented rotor design to reduce heat buildup
• Black zinc-coated hat finish for corrosion resistance
• Rust-resistant coating on rotor surface
• 5 bolt holes with 114.3 mm bolt circle diameter
• Nominal thickness of 25 mm and discard thickness of 23 mm
• Outside diameter of 282 mm and overall height of 48.8 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and slots with a black zinc finish on the hat for enhanced corrosion resistance. This product line is designed to provide effective heat dissipation and maintain rotor integrity under demanding driving conditions, making it suitable for Mazda 6 owners seeking a balance of performance and durability.

Technical Specifications and Features

This disc brake rotor is vented to allow air circulation between the rotor surfaces, which helps reduce brake fade during extended use. The directional slotted and drilled surface improves water and debris evacuation, enhancing braking response in wet or dusty conditions. The rotor's nominal thickness is 25 mm, with a discard thickness of 23 mm, ensuring a clear maintenance threshold. The rotor features a plain disc finish with a zinc black hat finish that provides rust resistance, extending the rotor's service life. It includes five bolt holes with a 114.3 mm bolt circle diameter and a center hole diameter of 71.7 mm, matching Mazda 6 specifications.

Applications and Problem Solving

• Replacement rotor for worn or warped Mazda 6 brake rotors
• Improves heat dissipation to reduce brake fade during heavy braking
• Helps maintain consistent braking performance in wet or corrosive environments
• Addresses rotor surface cracking by using drilled and slotted design
• Prevents rust and corrosion on rotor hats and surfaces

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 23 mm before installation. Clean the rotor surface to remove any protective coatings or residues before mounting. Verify bolt hole alignment with the Mazda 6 hub using the 5-bolt pattern and 114.3 mm bolt circle diameter. Proper torque specifications should be followed to avoid rotor warping. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.

Quality Assurance

Dynamite Friction manufactures this rotor to meet or exceed OEM standards for fit and function on Mazda 6 vehicles. The rust-resistant coating and zinc black hat finish contribute to long-term durability. While no specific warranty information is provided, the product is designed for reliable performance under normal operating conditions.
