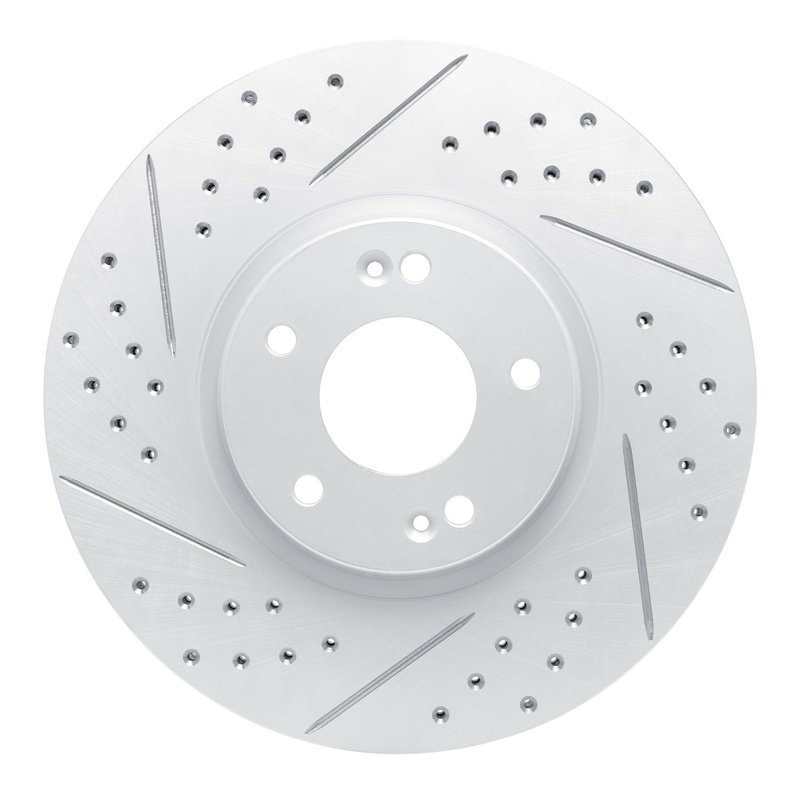

Dynamite Friction 830-03047L Disc Brake Rotor - Front Left

Overview of Dynamite Friction DFC Geoperformance Rotor

The Dynamite Friction DFC Geoperformance Rotor - Drilled and Slotted (part number 830-03047L) is engineered for Hyundai Veracruz models requiring reliable disc brake rotors. This vented rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Hyundai Veracruz vehicles
• Part number 830-03047L for precise identification
• Vented disc brake rotor with drilled and slotted surface
• Directional brake surface for optimized performance
• Rust resistant coating for extended durability
• Geospec silver grey hat finish for corrosion protection
• 5 bolt holes with 12.5 mm diameter and 114.3 mm bolt circle diameter
• Nominal thickness of 28 mm and discard thickness of 26.4 mm
• Outside diameter of 321 mm and overall height of 49.3 mm

Detailed Product Description

This Dynamite Friction rotor is part of the DFC Geoperformance Rotor - Drilled and Slotted line, which focuses on delivering rotors with enhanced heat dissipation and braking consistency. The drilled and slotted surface design helps to reduce brake fade by allowing gases and debris to escape, while the vented rotor construction improves airflow to maintain optimal operating temperatures. The directional surface ensures proper installation orientation for maximum effectiveness.

Constructed with a plain disc finish and a Geospec silver grey hat finish, this rotor offers corrosion resistance to extend service life. The rotor’s dimensions, including a 321 mm outside diameter and 49.3 mm overall height, are designed to meet Hyundai Veracruz specifications. The 5-bolt hole pattern with 12.5 mm diameter and 114.3 mm bolt circle diameter ensures a secure fitment.

Applications and Problem Solving

• Replacement for worn or warped rotors on Hyundai Veracruz
• Improves braking performance under heavy load or high heat conditions
• Reduces brake fade during extended braking periods
• Addresses rotor corrosion and surface wear issues
• Enhances brake pad bite and reduces noise with slotted and drilled design

Installation Notes and Tips

Ensure the rotor is installed with the directional surface facing the correct rotation direction as indicated. Verify bolt hole alignment with the vehicle’s hub using the 5-bolt pattern and 114.3 mm bolt circle diameter. Check rotor thickness before installation; replace if below the discard thickness of 26.4 mm. Clean the rotor surface to remove any protective coatings or debris before mounting.

Quality Assurance

Dynamite Friction rotors undergo rigorous quality control to meet OEM specifications for fitment and performance. The rust resistant coating and Geospec silver grey hat finish contribute to long-term durability. Warranty information is available through the manufacturer or authorized distributors.
