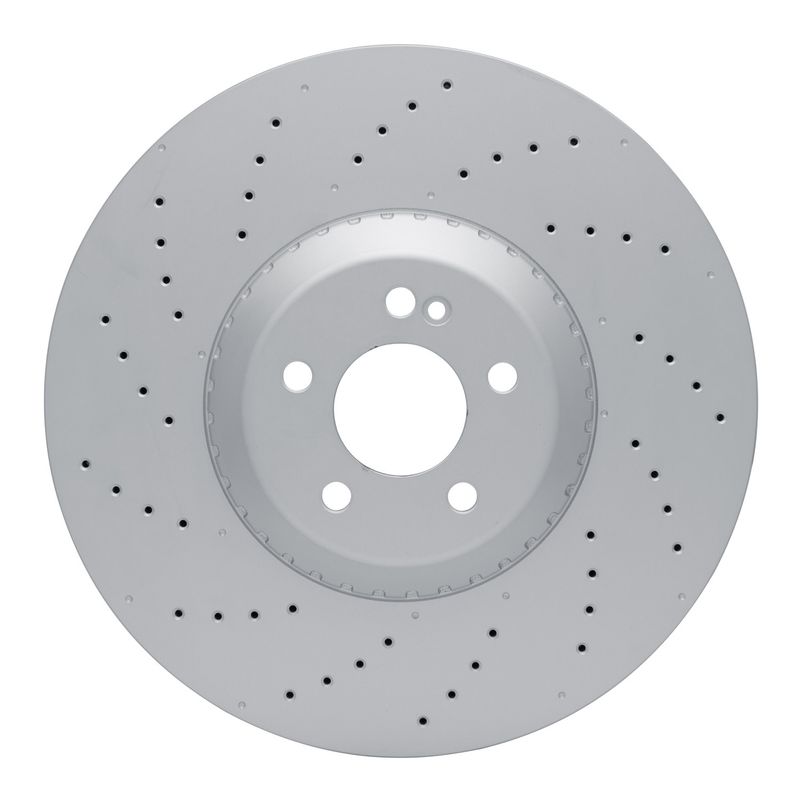

Dynamite Friction 920-63195 Disc Brake Rotor - Front

Front Drilled Rotor for Mercedes-Benz S-Class

The Dynamite Friction DFC Hi-Carbon Alloy GEOMET Coated Rotor - Drilled, part number 920-63195, is a front disc brake rotor built for select Mercedes-Benz S-Class applications. It combines a vented rotor design with an X-drilled surface, GEOMET Grey hat finish, and rust-resistant coating for a clean, service-ready brake component.

Key Features

• Part number 920-63195 front disc brake rotor
• Fits 2021-2026 Mercedes-Benz S500, front
• Fits 2021-2026 Mercedes-Benz S580, front
• Fits 2023-2026 Mercedes-Benz S580e, front
• Fits 2022-2026 Mercedes-Benz Maybach S680, front
• Vented rotor construction with X-drilled surface type
• Outside diameter: 390 mm
• Nominal thickness: 36 mm; discard thickness: 34 mm
• 5-bolt, 5-lug pattern with 112 mm bolt circle diameter
• Center hole diameter: 69 mm
• Non-directional brake surface for even wear characteristics
• GEOMET Grey hat finish with rust-resistant coating

Product Details

The DFC Hi-Carbon Alloy GEOMET Coated Rotor - Drilled line focuses on corrosion protection and consistent brake service performance. On this rotor, the GEOMET Grey hat finish and rust-resistant coating help protect exposed surfaces, while the plain disc finish and drilled braking surface support heat management under repeated front-brake use. This 920-63195 rotor is sized for large Mercedes-Benz luxury sedans and the Maybach S680, including front brake applications on the Mercedes-Benz S500, Mercedes-Benz S580, and Mercedes-Benz S580e.

For buyers searching for a front brake rotor for Mercedes-Benz S500 2021-2026, a drilled front rotor for Mercedes-Benz S580 2021-2026, or a replacement front disc brake rotor for Mercedes-Benz Maybach S680 2022-2026, this part number 920-63195 matches the listed fitment and dimensions.

Common Reasons to Replace

• Brake pulsation from rotor wear or thickness loss
• Visible scoring, grooves, or uneven braking surface wear
• Corrosion on the rotor hat or exposed metal surfaces
• Reduced braking consistency during repeated stops
• Rotor thickness approaching discard specification

Installation Notes

Verify rotor dimensions, bolt pattern, center bore, and front-position fitment before installation. This rotor uses a 5-bolt pattern with a 112 mm bolt circle and a 69 mm center hole diameter, so matching the vehicle hub and brake package is essential. Clean the hub mounting surface before installing the rotor to help prevent runout-related brake noise or pedal vibration. Follow the vehicle manufacturer’s brake service procedure for bedding-in new rotors and pads.

Quality Assurance

Dynamite Friction’s DFC Hi-Carbon Alloy GEOMET Coated Rotor - Drilled line is built with corrosion-resistant surface protection and application-specific sizing for the listed Mercedes-Benz models. Part number 920-63195 is specified for front brake use on the confirmed fitments shown above.
