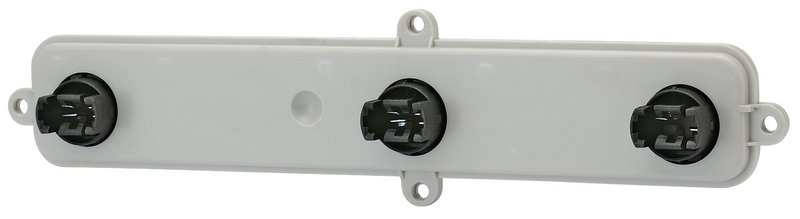

Eagle Eye CS172-SASY Tail Light Wiring Harness

Eagle Eye CS172-SASY Tail Light Wiring Harness

The Eagle Eye CS172-SASY tail light wiring harness is a direct-fit electrical replacement for late-design rear lamp applications on select Dodge Ram trucks. It is built for 12-volt systems and features a waterproof design for dependable rear lighting connections on both the left and right sides.

Key Features

• Tail light wiring harness for rear lamp electrical repair
• Fits left and right positions
• Late design application
• Waterproof construction
• 12-volt electrical system compatibility
• Brand: Eagle Eye
• Part number: CS172-SASY

Fitment Details

• Fits 2002-2007 Dodge Ram 1500, left or right rear lighting position.
• Fits 2002-2007 Dodge Ram 2500, left or right rear lighting position.
• Fits 2002-2007 Dodge Ram 3500, left or right rear lighting position.

This Eagle Eye CS172-SASY tail light wiring harness cross-references Chrysler 55077346AA and CH2814101 for the same application. It is a practical replacement for Dodge Ram 1500, Dodge Ram 2500, and Dodge Ram 3500 rear lighting repairs where the original harness has failed, corroded, or lost reliable continuity. The harness is intended for late-design trucks and supports both left and right side use, making it a straightforward option when restoring rear lamp function on 2002-2007 Dodge Ram models.

Common Repair Uses

• Broken or damaged tail light wiring
• Corrosion at the rear lamp connector
• Intermittent brake light or running light operation
• Water intrusion affecting rear lighting circuits
• Loss of electrical continuity at the tail lamp assembly

Installation Notes

Verify the vehicle year, model, and late-design rear lamp configuration before installation. Confirm the connector style and side application on the truck, then compare the existing harness to part number CS172-SASY and the listed cross-references. Because this is a 12-volt tail light wiring harness, it should be matched to the vehicle’s rear lighting circuit before final assembly.

Quality Assurance

Eagle Eye manufactures this harness as an electrical replacement component for late-design Dodge Ram rear lighting service. The waterproof construction supports reliable use in exposed rear body locations, and the part is identified for direct application matching by vehicle fitment and cross-reference numbers.
