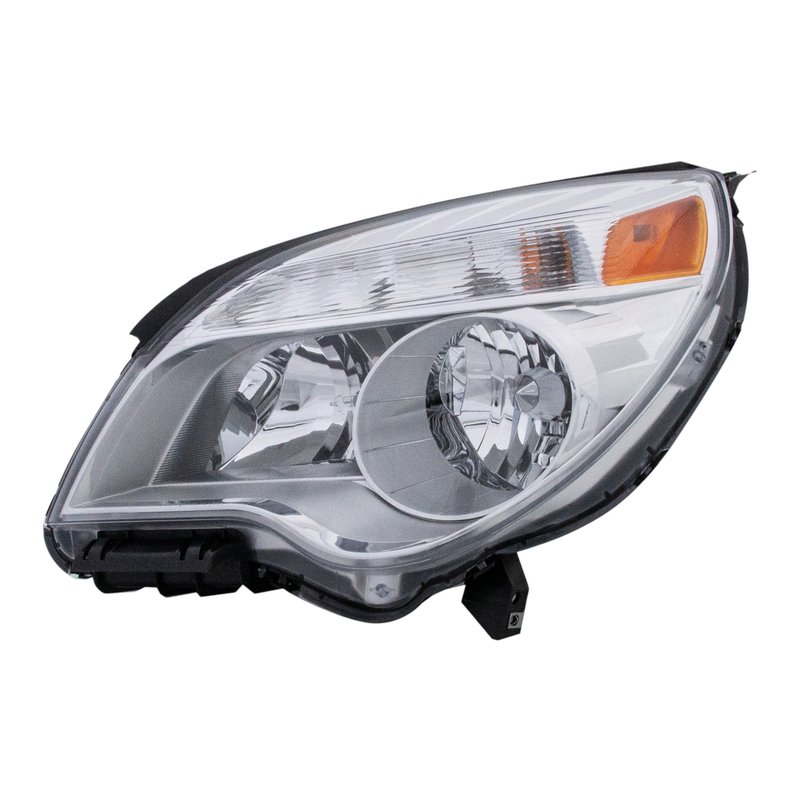

Eagle Eye GM546-B001LR Headlight Assembly

Overview

This Eagle Eye headlight assembly is a complete exterior lighting replacement for the left side and is built for halogen-equipped applications. It is a direct fit for the listed Chevrolet Equinox applications and is identified by part number GM546-B001LR.

Fits 2010-2015 Chevrolet Equinox, N/A. Remarks: LS, LT model. Part number GM546-B001LR is also referenced for this application.

Key Features

• Complete headlight assembly for exterior lighting replacement
• Halogen bulb type for low beam, high beam, park lamp, and front signal functions
• Clear plastic lens with plastic housing
• SAE/DOT compliant construction
• Left-side configuration for the listed fitment

Product Details

GM546-B001LR is a complete headlight assembly engineered for the Chevrolet Equinox LS and LT model applications listed in the fitment data. The unit uses a clear plastic lens and plastic housing, with halogen specified for the main lighting functions. Because the bulbs are not included, this assembly is intended for buyers replacing a damaged or worn headlamp housing while retaining or sourcing the required bulbs separately. The part number GM546-B001LR should be matched carefully to the vehicle listing and side designation before ordering.

Common Replacement Reasons

• Cracked or clouded headlight lens
• Broken or weathered housing
• Failed lighting output from a damaged assembly
• Restoring exterior lighting appearance after collision damage

Installation Notes

Verify left-side placement, halogen bulb requirements, and LS or LT model remarks before installation. This assembly is listed as a complete unit, but bulbs and hardware are not included. Confirm connector style and mounting points against the original headlight assembly on the Chevrolet Equinox before final installation.

Quality Assurance

This Eagle Eye headlight assembly is SAE/DOT compliant for the listed application. Cross-reference part numbers include GM2502338 and TYC 20-9095-00 for the same application.
