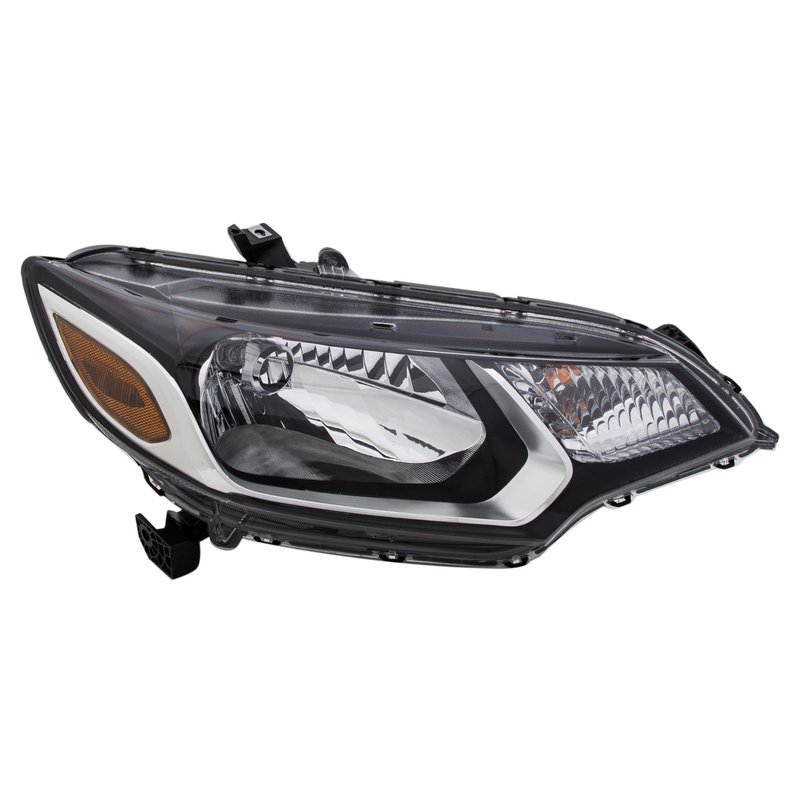

Eagle Eye HD621-B101LR Headlight Assembly
| Brand | Eagle Eye HD621-B101LR |
|---|---|
| Bulb Type | Halogen |
| Bulbs Included | No |
| Components Included | Complete assembly |
| Front Side Marker Light Bulb Included | No |
| Front Side Marker Light Bulb Type | Halogen |
| Front Signal Light Bulb Included | No |
| Front Signal Light Bulb Type | Halogen |
| Hardware Included | No |
| High Beam Bulb Included | No |
| High Beam Bulb Type | Halogen |
| Housing Material | Plastic |
| Lens Material | Plastic |
| Low Beam Bulb Included | No |
| Low Beam Bulb Type | Halogen hb2 |
| Position | Left |
| Remarks | Mexico built |
| Sae/Dot Compliant | Yes |
| Fits | Honda · 3 vehicles |
Complete assembly. Supplied as a full headlight unit for a cleaner replacement process.
Halogen lighting. Uses halogen bulb technology with halogen beam and signal provisions.
Road-use compliant. SAE/DOT compliant for exterior lighting requirements.
Cross-references DEPO 317-1171L-AS2, Maxzone Vehicle Lighting 317-1171R-AS2 and TYC 20-9585-00 for the same application. See all 8.
Headlight Assembly for Honda Fit
This Eagle Eye headlight assembly is a direct exterior lighting replacement for the left side of compatible Honda Fit applications. It uses halogen bulb technology and is built as a complete assembly for a straightforward restoration of forward lighting performance.
Key Features
- Halogen headlight assembly with a complete housing and lens.
- Plastic housing and plastic lens construction.
- SAE/DOT compliant for road-use requirements.
- Designed for Mexico-built applications.
- Part number HD621-B101LR for ordering and fitment verification.
Detailed Description
Fits 2015-2017 Honda Fit, N/A. This left headlight assembly is built for the Honda Fit and follows the original lighting layout with halogen low beam, high beam, front signal, and front side marker bulb provisions. The assembly is supplied without bulbs, so existing bulb selection can be matched to the vehicle’s lighting setup. The plastic housing and lens keep the unit lightweight while maintaining a factory-style exterior appearance. HD621-B101LR is the part number to reference when confirming the correct replacement.
This part cross-references DEPO 317-1171L-AS2 for the same application.
What It Helps Fix
- Cracked or clouded headlight lens.
- Dim or uneven forward lighting output.
- Moisture intrusion from a damaged housing.
- Broken mounting or worn exterior lighting components.
Installation Notes and Tips
Verify left-side fitment and confirm the vehicle is Mexico built before installation. Transfer or source the required halogen bulbs separately, since bulbs are not included. Check aiming after installation to restore proper beam pattern and road visibility. Use HD621-B101LR to confirm the correct headlight assembly for the application.
Quality Assurance
This Eagle Eye headlight assembly is SAE/DOT compliant and built as a complete replacement unit for the specified application.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2017 | Honda | Fit | Composite |
| 2016 | Honda | Fit | Composite |
| 2015 | Honda | Fit | Composite |
