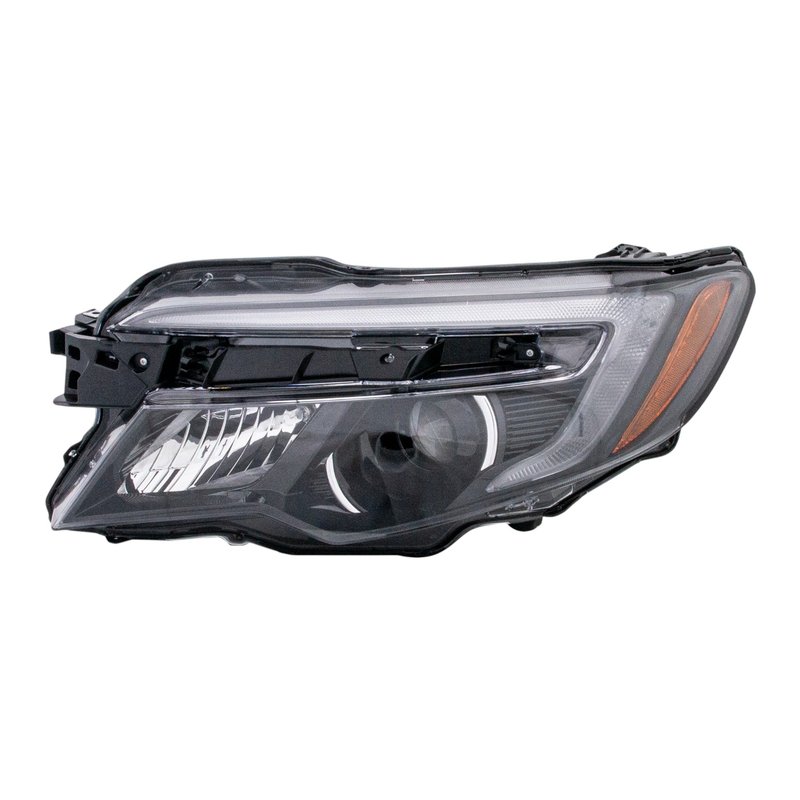

Eagle Eye HD667-B101LR Headlight Assembly
| Brand | Eagle Eye HD667-B101LR |
|---|---|
| Bulb Type | Halogen |
| Bulbs Included | No |
| Components Included | Complete assembly |
| Front Side Marker Light Bulb Included | No |
| Front Side Marker Light Bulb Type | Led |
| Hardware Included | No |
| High Beam Bulb Included | No |
| High Beam Bulb Type | Halogen hb3 |
| Housing Material | Plastic |
| Lens Color | Clear, amber |
| Lens Material | Plastic |
| Low Beam Bulb Included | No |
| Low Beam Bulb Type | Halogen h11 |
| Notes 1 | Without led drl |
| Position | Left |
| Sae/Dot Compliant | Yes |
| Fits | Honda · 9 vehicles |
Complete assembly. Supplied as a full headlight unit for replacement service.
Halogen lighting. Uses H11 low beam and HB3 high beam bulb types.
Road-use compliant. Built to SAE/DOT lighting standards for exterior use.
Cross-references Maxzone Vehicle Lighting 317-1174L-AS2, Maxzone Vehicle Lighting 317-1174R-AS2 and TYC 20-9715-90 for the same application. See all 8.
Overview
This Eagle Eye headlight assembly is a complete replacement unit for select Honda applications. It uses halogen lighting with a clear and amber lens, and it is built for the left side with SAE/DOT compliance.
Part number HD667-B101LR is listed for the Honda Pilot and Honda Ridgeline, making it a focused choice for drivers replacing a damaged or worn exterior lamp assembly.
Key Features
- Complete headlight assembly for straightforward replacement.
- Halogen low beam and high beam bulb types specified for the housing.
- Clear and amber lens design with a plastic lens and housing.
- SAE/DOT compliant for road-use lighting requirements.
- Configured without LED DRL.
Detailed Description
HD667-B101LR is an Eagle Eye headlight assembly engineered as a direct exterior lighting replacement for select Honda vehicles. The unit is supplied as a complete assembly and uses a plastic housing with a plastic lens, along with halogen H11 low beam and halogen HB3 high beam bulb types. The lens color is clear and amber, and the assembly is specified without LED daytime running lights.
Compatible With 2016-2020 Honda Pilot and 2017-2020 Honda Ridgeline, this left-side headlight assembly supports restoration of proper forward lighting and exterior appearance. Part number HD667-B101LR also cross-references TYC (e.g., 20-9715-90, 20-9716-90) for the same application.
Common Uses
- Replacing a cracked or cloudy headlight assembly.
- Restoring low beam and high beam lighting output.
- Correcting lens damage or housing wear.
- Replacing a unit that no longer meets exterior lighting compliance.
Installation Notes
Fits 2016-2020 Honda Pilot, N/A. Fits 2017-2020 Honda Ridgeline, N/A. Verify bulb type, connector condition, and mounting points before installation. Hardware is not included.
Quality Assurance
This headlight assembly is SAE/DOT compliant. Part number HD667-B101LR is built as a complete replacement lighting unit for the listed Honda applications.
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2020 | Honda | Pilot | LX | Composite |
| 2020 | Honda | Ridgeline | — | Composite |
| 2019 | Honda | Pilot | LX | Composite |
| 2019 | Honda | Ridgeline | — | Composite |
| 2018 | Honda | Pilot | LX | Composite |
| 2018 | Honda | Ridgeline | — | Composite |
| 2017 | Honda | Pilot | LX | Composite |
| 2017 | Honda | Ridgeline | — | Composite |
| 2016 | Honda | Pilot | LX | Composite |
| No rows match your filter. | ||||
