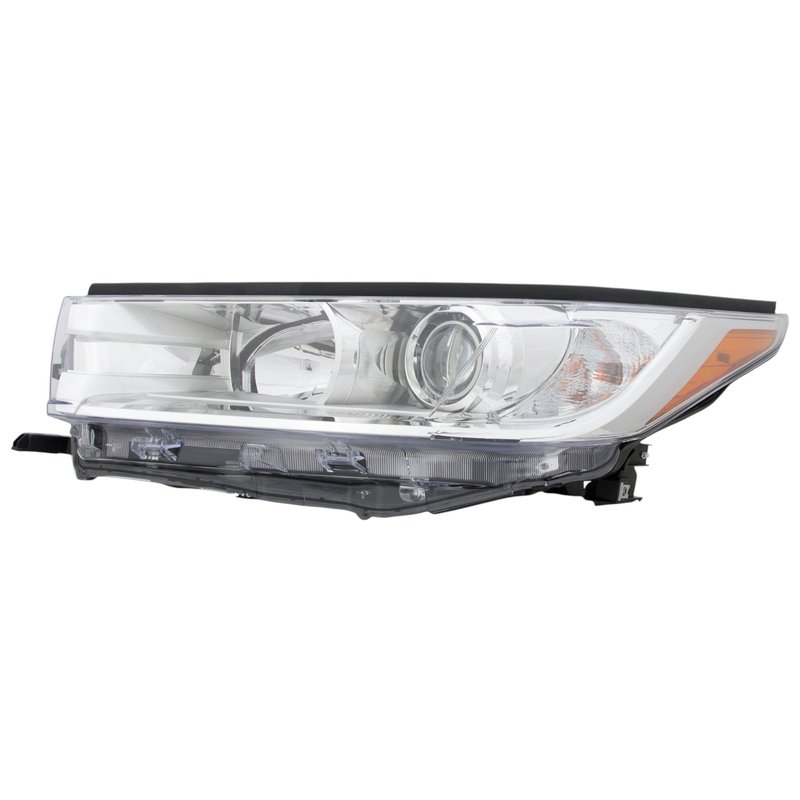

Eagle Eye TY1331-B001LR Headlight Assembly

Left Headlight Assembly for 2017-2019 Highlander

This Eagle Eye headlight assembly is a complete left-side replacement for the 2017-2019 Toyota Highlander. It uses a halogen bulb setup and is built with plastic housing and lens materials for direct exterior lighting service.

Key Features

• Brand: Eagle Eye
• Part number: TY1331-B001LR
• Complete headlight assembly
• Left position
• Halogen bulb type
• Low beam bulb type: H11/HB3
• High beam bulb type: halogen
• Park lamp bulb type: halogen
• Front side marker light bulb type: halogen
• Plastic housing and plastic lens
• Bulbs not included

Detailed Description

Built for the left side of the Toyota Highlander, TY1331-B001LR is a complete headlight assembly for 2017, 2018, and 2019 models. It is configured for halogen lighting and uses H11/HB3 low beam bulb types, with halogen high beam, park lamp, and front side marker light bulb specifications. This Eagle Eye headlight assembly is a practical replacement when restoring front-end lighting on a Highlander with halogen equipment.

This part cross-references Toyota OE-style numbers 811100E330 and 811500E330 for the same application.

What It Helps Address

• Cracked or damaged left headlight housing
• Clouded or worn lens condition
• Failed exterior lighting on the driver side
• Restoration after front-end repair
• Replacement for a non-functioning halogen headlamp assembly

Installation Notes and Tips

Compatible With 2017-2019 Toyota Highlander, left. Verify halogen headlamp configuration before ordering, since this assembly is not supplied with bulbs. Confirm the vehicle’s existing connector and bulb requirements against the H11/HB3 low beam specification and the listed halogen bulb types before installation.

Quality Assurance

Eagle Eye offers this headlight assembly as a replacement lighting component for the specified Highlander applications. Interchange references include TO2502251, TO2503251, 312-11ASL-AS1, 312-11ASR-AS1, 20-9921-00, and 20-9922-00.
