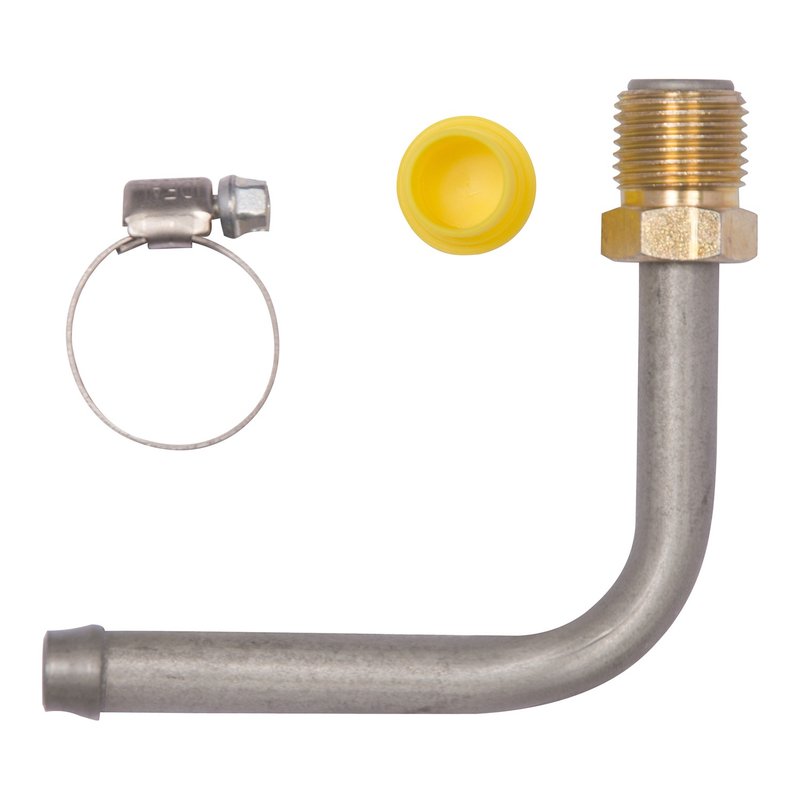

Edelmann 39135 Power Steering Return Line End Fitting

Edelmann Power Steering End Fitting 39135

Edelmann 39135 is a power steering return line end fitting built for direct replacement on a wide range of classic and late-model vehicles. It is designed to support a precise hose connection where the steering system needs a reliable return-side fitment.

With a 5-inch hose length and OE-style construction focus, this fitting is intended for applications where routing, bend shape, and connection accuracy matter. It is a practical choice for restoring proper power steering return line function on vehicles such as the Ford Crown Victoria, Chevrolet Corvette, and Jeep Wagoneer.

Key Features

• Power steering return line end fitting for steering hardware applications
• Hose length: 5 inches
• Built to match OE routing and installation geometry
• Constructed to handle steering-system heat and pressure pulsation
• Designed to help reduce premature hose breakdown and contamination
• Cross-references Edelmann 39135 for the same application; this part also cross-references Four Seasons 35015 and Gates 350150

Product Details

This Edelmann Power Steering End Fitting is part of the Power Steering End Fitting line, which focuses on accurate hose routing and dependable steering-system service. The design emphasis is on matching original hose trajectory so the return line installs cleanly in the available space and maintains proper system layout.

Compatible With applications across Ford, Chevrolet, GMC, Jeep, Pontiac, Oldsmobile, Buick, Cadillac, Dodge, Mercury, Lincoln, and Corvette platforms, including many vehicles with conventional steering systems, cooler-equipped return lines, hydroboost setups, and flared-fitting configurations. Fits 1995-1996 Ford Crown Victoria, Gear To Pipe; Fits 1992-1994 Lincoln Town Car, From Gear; Fits 1963-1982 Chevrolet Corvette, N/A; Fits 1974-1979 Jeep Wagoneer, N/A.

Common Problems This Part Can Address

• Leaking or damaged power steering return line end connection
• Poor hose routing that does not follow the original steering layout
• Heat-related hose deterioration in the steering system
• Contamination caused by a failing return line connection
• Fitment issues on OE-style power steering return line repairs

Installation Notes

• Verify the vehicle’s steering configuration before ordering, including cooler, hydroboost, and reservoir return-tube setup.
• Match the position and notes in the fitment data, such as Gear To Pipe, From Gear, Gear To Pump, Gear To Tee, or Gear To Cooler.
• Confirm hose routing and connection style on the original part before installation.
• Use the vehicle-specific fitment notes for applications like 1979 Chevrolet C10 hydroboost systems or 1977 Ford Pinto with flared fitting requirements.

Quality Assurance

Edelmann designs its power steering hoses and fittings to meet or exceed OE specifications, with attention to routing accuracy, material quality, and resistance to steering-system heat and pressure pulsation. That approach supports a precise installation and dependable service life for the 39135 return line end fitting.
