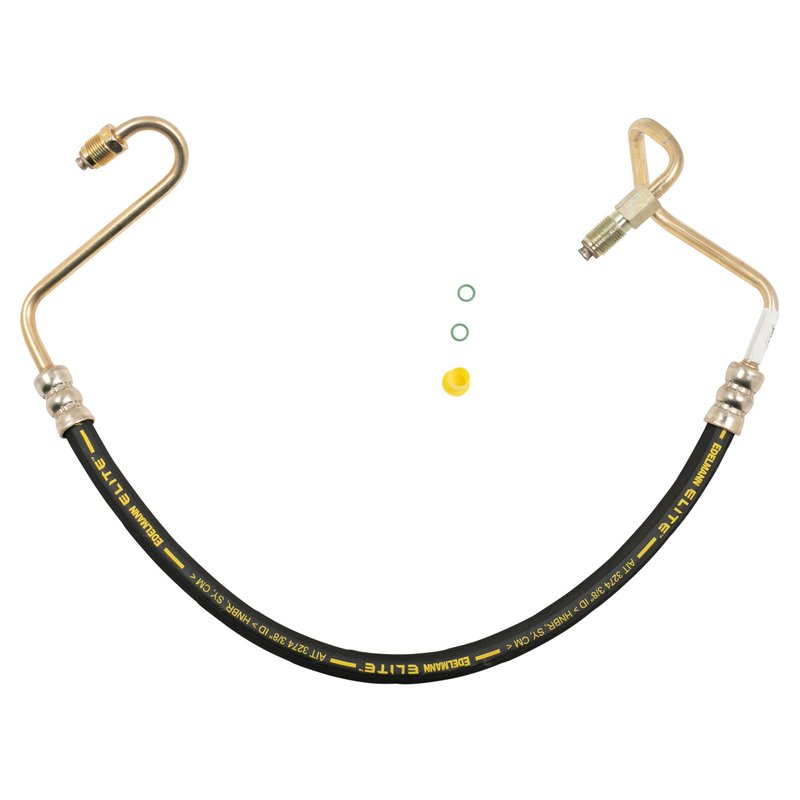

Edelmann 80293E Power Steering Pressure Line Hose Assembly - Pump To Gear

Edelmann Pressure Line Assembly for Jeep Steering

The Edelmann 80293E is a power steering pressure line hose assembly built for the pump-to-gear route on select Jeep applications. It is engineered with a steel tube, rubber hose construction, and O-ring ends to support a secure seal and consistent steering fluid transfer in demanding driving conditions.

For Jeep TJ and Jeep Wrangler owners, this Edelmann Elite pressure line assembly is built to match the original hose path and fitting style for the listed applications. The 80293E part number is a direct-reference option for replacing a worn or leaking power steering pressure hose on 1997-2002 Jeep TJ and 1997-2002 Jeep Wrangler models.

Key Features

• Power steering pressure line hose assembly for pump-to-gear routing
• Fits 1997-2002 Jeep TJ and 1997-2002 Jeep Wrangler
• Length: 44.5 in. with 0.390 in. inside diameter
• Steel tube material with rubber hose construction
• Male O-ring ends on both sides for OE-style connection
• Steel fittings and 16 mm hose fitting thread diameter
• Burst pressure rating: 6000
• Designed with OEM-matched bends for proper routing
• Part number: 80293E

Product Details

Edelmann’s Pressure Line Assembly line focuses on replacement steering hoses that follow the original hose shape and connection style. This 80293E hose uses identical OEM fitting geometry for the listed Jeep applications, helping the hose seat correctly when installed properly. The hose also includes zinc coating for corrosion resistance and heat/abrasion tubing to handle temperature swings and daily road exposure.

This part cross-references Mopar 52087902 and 52087902AB for the same application. If you are replacing a leaking Jeep Wrangler or Jeep TJ power steering hose, the 80293E provides the correct pump-to-gear pressure line configuration for the listed model years.

Common Problems This Part Can Address

• Power steering fluid leakage at the pressure hose
• Cracked or hardened hose material from age and heat
• Corrosion at the hose fittings or tube sections
• Steering noise caused by pressure loss in the line
• Poor steering response from a damaged pump-to-gear hose

Installation Notes

Verify the vehicle year, model, and pump-to-gear routing before installation. Confirm that the O-ring ends and 16 mm fitting thread diameter match the removed hose, and route the line along the original OEM path to avoid contact with moving or hot components. Inspect the sealing surfaces and replace any damaged O-rings or related seals as needed during service.

Quality Assurance

This Edelmann Elite hose assembly is built with corrosion-resistant zinc coating, heat/abrasion protection, and OEM-style bends and fittings for the listed Jeep applications. It is designed to meet the demands of daily driving while maintaining proper steering fluid transfer in the power steering system.
