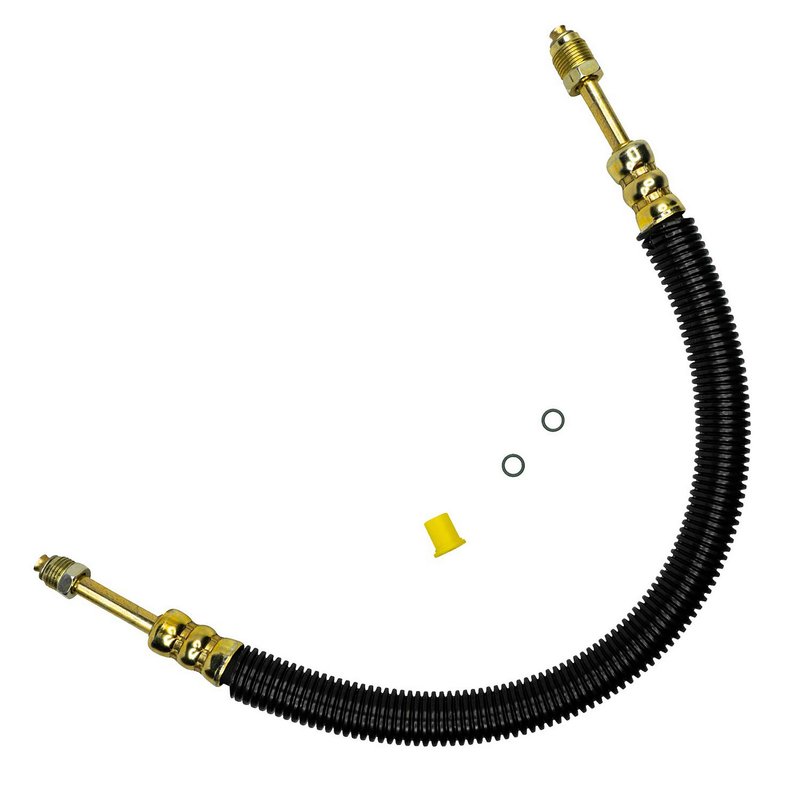

Edelmann 80330E Power Steering Pressure Line Hose Assembly - To Gear

Edelmann 80330E Power Steering Pressure Line Hose

The Edelmann 80330E is a power steering pressure line hose assembly built for select Chevrolet Silverado and GMC Sierra trucks and SUVs. It uses a 24-inch hose length and OE-style fittings to support a proper seal and factory-style routing when installed on the listed applications.

Elite Extreme Weather Hose Design

This Pressure Line Assembly is part of the Edelmann Elite line, which is built for daily driving in changing weather and temperature extremes. The hose features zinc coating for added resistance to rust and corrosion, heat and abrasion tubing for temperature protection, and double lock beading with a barbed tube end for stronger hose-to-coupling integrity. The 80330E also follows the original hose bend pattern and uses the same fitting style as the OE part it replaces.

• 24-inch hose length
• OE-matched fittings for proper sealing on listed applications
• Zinc-coated exterior helps resist rust and corrosion
• Heat and abrasion tubing for cold-weather and high-heat exposure
• Double lock beading with barbed tube end for hose/coupling integrity
• Built to follow original hose bends and routing

Vehicle Fitment

• Fits 2007 Chevrolet Silverado 1500 Classic, to gear, w/o trailer tow package; Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 2006-2007 Chevrolet Silverado 2500, to gear, w/o trailer tow package; Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 2007 GMC Sierra, to gear, w/o trailer tow package; Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 2007 GMC Sierra 1500 Classic, to gear, w/o trailer tow package; Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 2005-2006 Chevrolet Silverado 1500, to gear, w/o trailer tow package; Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 2005-2006 GMC Sierra 1500, to gear, w/o trailer tow package; Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 2001-2005 Chevrolet Silverado 1500, to gear; Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 2001-2005 GMC Sierra 1500, to gear; Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 2001-2004 Chevrolet Silverado 2500, to gear; Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 2004 GMC Yukon, N/A, conventional system (1 return tube on reservoir); Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 2004 GMC Yukon XL 1500, N/A, conventional system (1 return tube on reservoir); Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 2004 GMC Yukon XL 2500, N/A, conventional system (1 return tube on reservoir); Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 1999-2000 Chevrolet Silverado 1500, to gear, conventional system (1 return tube on reservoir); Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 1999-2000 Chevrolet Silverado 2500, to gear, conventional system (1 return tube on reservoir); Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 1999-2000 GMC Sierra 1500, to gear, conventional system (1 return tube on reservoir); Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 1999-2000 GMC Sierra 2500, to gear, conventional system (1 return tube on reservoir); Edelmann Elite Extreme Weather Hose; Pressure Line Assembly
• Fits 1999 Chevrolet C1500, to gear, conventional system (1 return tube on reservoir); Edelmann Elite Extreme Weather Hose; Pressure Line Assembly

What This Hose Helps Address

• Power steering fluid leaks at the pressure line
• Hard or inconsistent steering effort
• Noise caused by a worn or damaged hose assembly
• Corrosion-related hose deterioration
• Routing issues when replacing a failed OE hose on Silverado and Sierra applications

Installation Notes

Verify the vehicle’s steering system layout before ordering, especially on 2004 GMC Yukon and Yukon XL applications with a conventional system and one return tube on the reservoir. Confirm the listed position, OE-style routing, and fitting style against the removed hose before installation. This part cross-references GM OE numbers 15774514 and 26051184 for the same application.

Quality Assurance

Edelmann designs this pressure line assembly with OE-matched fittings, exact-spec bend geometry, and protective hose materials to support a proper replacement on the listed Chevrolet Silverado and GMC Sierra applications. Part number 80330E is built as an OE-style service part for direct replacement use on the confirmed fitments.
