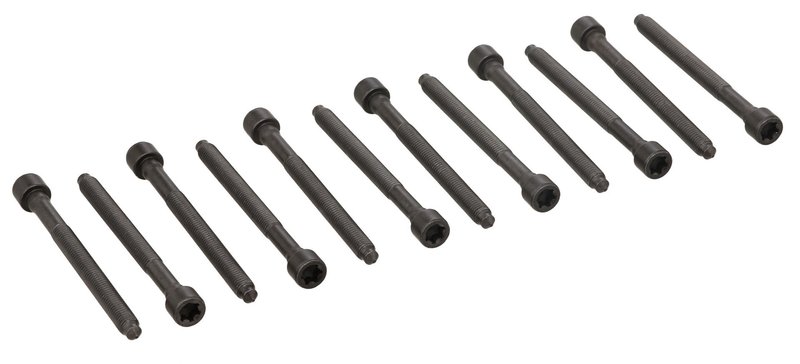

Elring 005.610 Engine Cylinder Head Bolt Set

Elring Cylinder Head Bolt Set for VW and Audi

Elring 005.610 is an engine cylinder head bolt set built for specific Volkswagen and Audi applications that require M10 x 1.5 x 117 mm fasteners with a female splined Ribe-CV head design. It is a direct-fit hardware solution for engine service work where cylinder head bolt replacement is specified.

Key Features

• Engine cylinder head bolt set from Elring
• Part number: 005.610
• Female splined Ribe-CV head design
• Thread size: M10 x 1.5 x 117 mm
• Designed for Volkswagen Beetle, Golf, Jetta, Passat, and Golf SportWagen applications
• Also listed for Audi TT RS Quattro, RS3, and RS Q3 applications

Product Details

This Elring 005.610 cylinder head bolt set is specified for engine repair and reassembly where the original head bolt design, thread pitch, and length must match the vehicle application. The bolt head/nut design uses a female splined Ribe-CV interface, and the listed thread specification is M10 x 1.5 x 117 mm. For Volkswagen Beetle, Volkswagen Jetta, and Audi RS3 service, matching the correct fastener geometry is critical for proper cylinder head installation.

This part cross-references MAHLE GS33567 for the same application.

Vehicle Fitment

• Fits 2015-2019 Volkswagen Beetle, N/A
• Fits 2011 Volkswagen Beetle, N/A
• Fits 2017-2018 Audi RS Q3, N/A, Length: 117mm, Thread Size: M10, Thread Pitch: 1.5mm, Bolt Head Nut Design: Female Splined (Ribe-CV®)
• Fits 2017-2018 Audi RS3, N/A, Length: 117mm, Thread Size: M10, Thread Pitch: 1.5mm, Bolt Head Nut Design: Female Splined (Ribe-CV®)
• Fits 2015-2018 Volkswagen Passat, N/A
• Fits 2015-2017 Volkswagen Jetta, N/A
• Fits 2011-2014 Audi TT RS Quattro, N/A
• Fits 2012-2014 Volkswagen Beetle, N/A, Length: 117mm, Thread Size: M10, Thread Pitch: 1.5mm, Bolt Head Nut Design: Female Splined (Ribe-CV®)
• Fits 2006-2010 Volkswagen Beetle, N/A, Length: 117mm, Thread Size: M10, Thread Pitch: 1.5mm, Bolt Head Nut Design: Female Splined (Ribe-CV®)
• Fits 2010-2014 Volkswagen Golf, N/A, Length: 117mm, Thread Size: M10, Thread Pitch: 1.5mm, Bolt Head Nut Design: Female Splined (Ribe-CV®)
• Fits 2005-2014 Volkswagen Jetta, N/A, Length: 117mm, Thread Size: M10, Thread Pitch: 1.5mm, Bolt Head Nut Design: Female Splined (Ribe-CV®)
• Fits 2012-2014 Volkswagen Passat, N/A, Length: 117mm, Thread Size: M10, Thread Pitch: 1.5mm, Bolt Head Nut Design: Female Splined (Ribe-CV®)
• Fits 2010-2013 Volkswagen Golf SportWagen, N/A
• Fits 2010-2011 Volkswagen Beetle Cabrio, N/A

Installation Notes

• Verify engine code, head bolt length, thread pitch, and head design before installation.
• Use the correct Ribe-CV driver to avoid damaging the female splined head.
• Follow the vehicle manufacturer’s tightening sequence and torque procedure during cylinder head service.
• Inspect the cylinder head and block mating surfaces before reassembly.

Quality Assurance

Elring is a recognized engine sealing and hardware brand used in professional repair applications. This part number, 005.610, is listed with exact dimensional and design specifications to support accurate cylinder head service on confirmed Volkswagen and Audi fitments.
