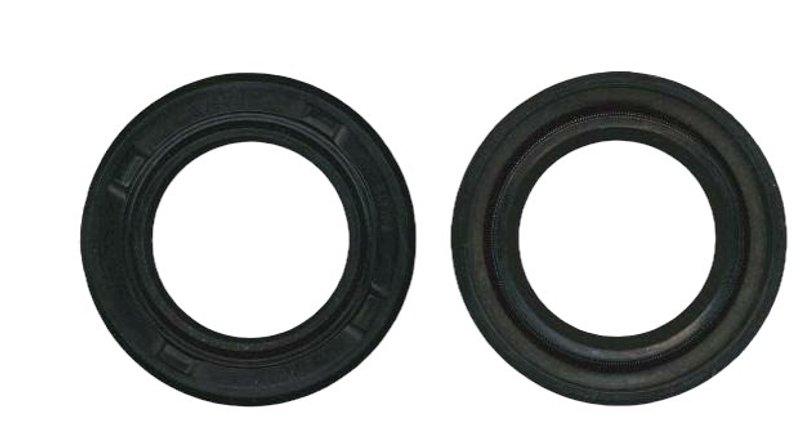

Elring 007.544 Steering Gear Sector Shaft Seal

Overview of Elring Steering Gear Sector Shaft Seal 007.544

The Elring Steering Gear Sector Shaft Seal 007.544 is designed specifically for Mercedes-Benz models including the 260E, 300CE, 300D, 300E, 300SE, 300SEL, 300TD, 300TE, 380SE, 380SEC, 380SEL, 380SL, 380SLC, 420SEL, 500SEC, 500SEL, 560SEC, and 560SEL. This seal ensures reliable sealing performance in the steering system, helping maintain proper function and prevent leaks.

• Inside diameter: 21.0 mm
• Thickness: 9.0 mm
• Outside diameter: 33.0 mm
• Material: NBR (nitrile butadiene rubber) for durability and resistance
• Includes dust cover with dust lip for enhanced protection
• Radial shaft seal design: V/as type for effective sealing

Technical Details and Material Specifications

The Elring 007.544 steering gear sector shaft seal is constructed from nitrile butadiene rubber (NBR), a material known for its resistance to oils, fuels, and wear. The seal features a 21.0 mm inside diameter and a 33.0 mm outside diameter, with a thickness of 9.0 mm, making it suitable for precise fitment in the steering gear assembly. The integrated dust cover with a dust lip helps prevent contaminants from entering the steering system, extending the life of the seal and related components. The V/as radial shaft seal design ensures a secure and reliable seal around the shaft, minimizing the risk of fluid leaks.

Compatible Mercedes-Benz Models and Applications

This steering gear sector shaft seal is compatible with a range of Mercedes-Benz vehicles, including the 260E, 300CE, 300D, 300E, 300SE, 300SEL, 300TD, 300TE, 380SE, 380SEC, 380SEL, 380SL, 380SLC, 420SEL, 500SEC, 500SEL, 560SEC, and 560SEL models. It is designed to replace worn or damaged seals in the steering gear sector shaft, helping to maintain steering precision and prevent fluid leakage.

Common Issues Addressed by This Seal

• Prevents steering fluid leaks that can cause steering performance issues
• Protects steering gear components from dust and debris contamination
• Reduces wear on the steering sector shaft by maintaining proper lubrication
• Helps avoid steering stiffness or noise caused by seal failure
• Maintains hydraulic pressure integrity in power steering systems

Installation Notes and Tips

When installing the Elring 007.544 steering gear sector shaft seal, ensure the steering gear housing and shaft are clean and free of debris. Lubricate the seal lip with appropriate steering fluid or grease to facilitate installation and prevent damage. Carefully press the seal into place without twisting or deforming it. Verify proper alignment and seating to avoid leaks. It is recommended to inspect related steering components during installation for wear or damage.

Quality Assurance and Warranty Information

Elring manufactures this steering gear sector shaft seal to meet OEM specifications for Mercedes-Benz vehicles. The use of high-quality nitrile butadiene rubber and precise radial shaft seal design ensures durability and reliable performance. While specific warranty details may vary, Elring products typically come with a limited warranty against manufacturing defects, providing confidence in the product's quality and longevity.
