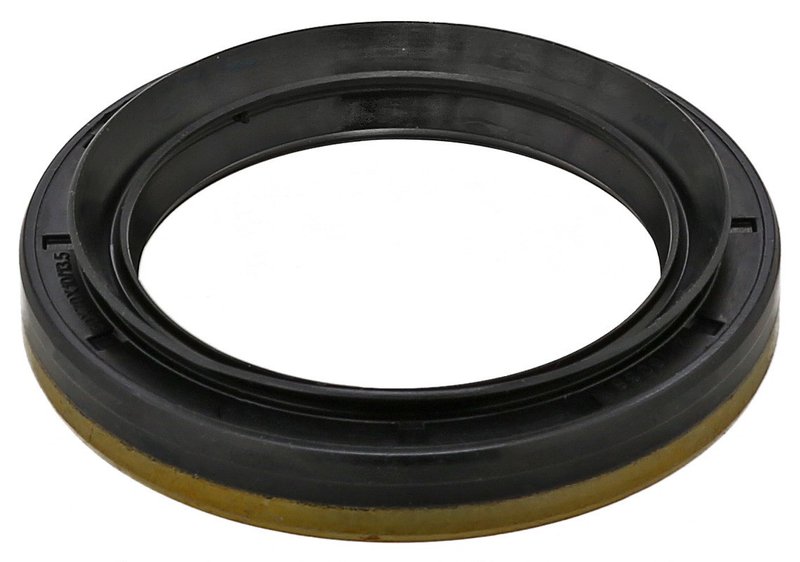

Elring 009.076 Wheel Hub Gasket

Elring Wheel Hub Gasket for Mercedes-Benz

Elring 009.076 is a wheel hub gasket built for Mercedes-Benz driveline and axle applications that require a precise seal at the hub. It uses NBR (nitrile butadiene rubber) construction with a dust lip to help keep contaminants out of the sealing area.

With a 50.0 mm inside diameter, 70 mm outer diameter, and 13.5 mm thickness, this seal is sized for specific Mercedes-Benz front axle and hub applications. Elring 009.076 is a direct-fit sealing component for owners servicing classic Mercedes-Benz 300D, 300SE, 300SEL, 300TD, 380SE, 380SEC, 380SEL, 500SEC, and 500SEL models.

Key Features

• Elring 009.076 wheel hub gasket for driveline and axle sealing
• NBR (nitrile butadiene rubber) material for sealing performance
• 50.0 mm inside diameter, 70 mm outer diameter, 13.5 mm thickness
• Dust lip design helps block road dust and debris
• Radial shaft seal design: A/BS
• Fits select Mercedes-Benz front axle and hub applications

Detailed Description

This wheel hub gasket is specified for Mercedes-Benz applications where the hub seal must match exact dimensions and sealing profile. The Elring 009.076 part number appears in OE-style cross-reference use for several Mercedes-Benz hub and axle applications, including 300D, 300SE, 300SEL, 300TD, 380SE, 380SEC, 380SEL, 500SEC, and 500SEL models. This part cross-references Mercedes-Benz OE numbers 019 997 08 47 and 019 997 72 47 for the same application.

Built from NBR rubber, the seal is suited to sealing interfaces that need resistance to oil and general drivetrain contamination. The dust lip adds an extra barrier at the sealing edge, while the A/BS radial shaft seal design supports a controlled fit at the hub assembly.

Vehicle Fitment

• Fits 1988-1991 Mercedes-Benz 300SE, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip
• Fits 1988-1991 Mercedes-Benz 300SEL, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip
• Fits 1983-1985 Mercedes-Benz 300D, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip
• Fits 1977-1981 Mercedes-Benz 300D, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip
• Fits 1979-1985 Mercedes-Benz 300TD, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip
• Fits 1984-1985 Mercedes-Benz 380SE, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip
• Fits 1984-1985 Mercedes-Benz 500SEC, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip
• Fits 1984-1985 Mercedes-Benz 500SEL, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip; Front Axle
• Fits 1982-1983 Mercedes-Benz 380SEC, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip
• Fits 1981-1983 Mercedes-Benz 380SEL, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip; Front Axle
• Fits 1982 Mercedes-Benz 300D, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip; Front Axle
• Fits 1976 Mercedes-Benz 300D, N/A — Width: 13.5mm; Inner Diameter: 50mm; Outer Diameter: 70mm; Dust Cover: with dust lip; Front Axle

Common Issues Addressed

• Oil seepage at the wheel hub or axle sealing surface
• Contamination entering the hub area from dust and road debris
• Seal wear from age, heat, and drivetrain exposure
• Incorrect seal dimensions during Mercedes-Benz hub service
• Front axle sealing service on select Mercedes-Benz models

Installation Notes

Verify the inside diameter, outer diameter, and thickness against the removed seal before installation. Clean the hub bore and sealing surface thoroughly, and inspect the shaft or hub surface for scoring or corrosion that could affect sealing performance. Confirm the application by model year and axle position, especially on Mercedes-Benz 300D and 380SEL front axle listings.

Quality Assurance

Elring is a recognized sealing-system manufacturer, and this part is built to match the dimensional and material requirements listed for the application. Confirm OE cross-reference and fitment details before installation to ensure the correct Mercedes-Benz wheel hub gasket is selected.
