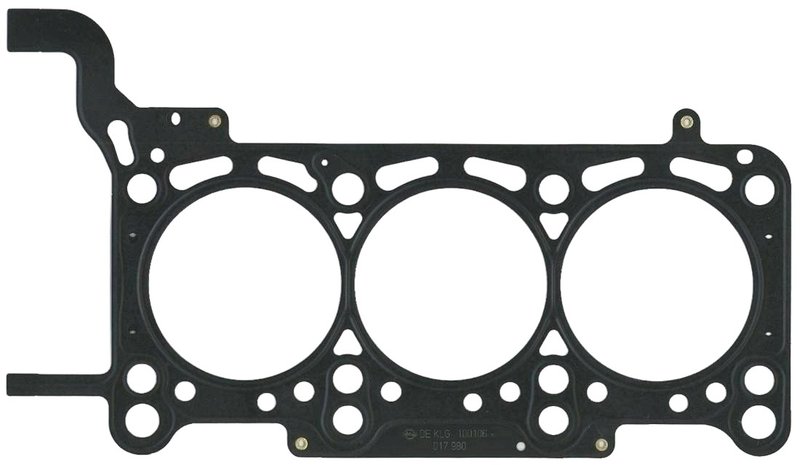

Elring 017.980 Engine Cylinder Head Gasket
| Brand | Elring 017.980 |
|---|---|
| Additionally required articles (article numbers) | 130.110 |
| Diameter [Mm] | 84 |
| For Cylinder | 1-3 |
| Gasket Design | Multilayer Steel (MLS) |
| Installed Thickness [Mm] | 1.1 |
| Number Of Holes | 1 |
| Piston Protrusion From [Mm] | 0.39 |
| Piston Protrusion To [Mm] | 0.49 |
| Thickness | 1.1 |
| Fits | Volkswagen · 2 vehicles |
MLS construction. Multilayer steel design helps maintain a reliable seal under demanding conditions.
Precision thickness. 1.1 mm thickness supports consistent sealing performance.
Cylinder head gasket. Engine sealing component for dependable compression control.
Cross-references 30-030240-00, 059 103 383 CM and 61-35965-00 for the same application. See all 7.
Elring MLS Cylinder Head Gasket for Touareg
The Elring 017.980 engine cylinder head gasket is a multilayer steel (MLS) gasket built for precise sealing in the combustion chamber and coolant/oil passages. It is specified for 84 mm bore applications with 1.1 mm installed thickness and piston protrusion from 0.39 mm to 0.49 mm.
Compatible with 2009 Volkswagen Touareg, diameter 84 mm, and 2010 Volkswagen Touareg. The Elring 017.980 is a direct-fit sealing component for engine rebuilds and head gasket service where accurate thickness and bore match are required.
Key Features
- Engine cylinder head gasket for Volkswagen Touareg applications
- Multilayer steel (MLS) gasket design for controlled sealing performance
- 84 mm diameter
- 1.1 mm thickness and 1.1 mm installed thickness
- For cylinders 1-3
- Requires additional article 130.110
- Specified for piston protrusion from 0.39 mm to 0.49 mm
- Elring part number 017.980
Detailed Description
Elring 017.980 is an MLS engine cylinder head gasket engineered for sealing the cylinder head to the engine block in 2009-2010 Volkswagen Touareg applications. The gasket’s 84 mm bore size, 1.1 mm thickness, and piston protrusion specification help ensure the correct sealing stack-up for the listed engine configuration. This part number is also referenced as 017.980 in service and catalog listings, making it easier to verify during engine repair or teardown.
This part cross-references 059 103 383 CM and 30-030240-00 for the same application. When sourcing a head gasket for a Volkswagen Touareg, confirm the engine’s piston protrusion measurement and the required additional article 130.110 before assembly.
What It Helps Address
- Compression loss from a failed cylinder head gasket
- Coolant leakage between the head and block
- Oil seepage at the head sealing surface
- Combustion gas leakage affecting engine performance
- Improper sealing after cylinder head service or engine rebuild
Installation Notes and Tips
Verify cylinder head and block surfaces are clean, flat, and within specification before installation. Measure piston protrusion and confirm it falls within the listed 0.39 mm to 0.49 mm range before selecting this gasket. Use the required additional article 130.110 during the repair, and follow the vehicle manufacturer’s torque sequence and tightening specifications during reassembly.
Quality Assurance
Elring is a recognized engine sealing brand with OE-level application coverage in gasket and sealing systems. This gasket is built to match the listed dimensions and fitment data for 2009 and 2010 Volkswagen Touareg service work.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2010 | Volkswagen | Touareg | TDI | Sport Utility | AWD | 3.0L | V6 | — | N/A | — |
| 2009 | Volkswagen | Touareg | — | — | AWD | 3.0L | V6 | DIESEL | N/A | Diameter: 84mm |
