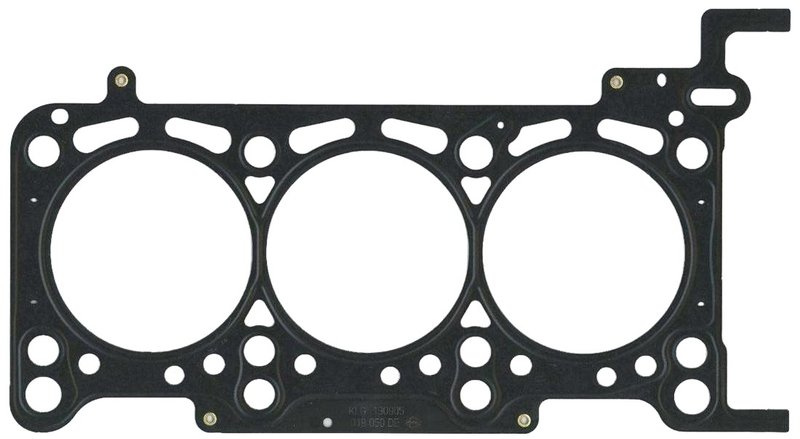

Elring 018.050 Engine Cylinder Head Gasket
| Brand | Elring 018.050 |
|---|---|
| Additionally required articles (article numbers) | 130.110 |
| Diameter [Mm] | 84 |
| For Cylinder | 4-6 |
| Gasket Design | Multilayer Steel (MLS) |
| Installed Thickness [Mm] | 1.1 |
| Number Of Holes | 1 |
| Piston Protrusion From [Mm] | 0.39 |
| Piston Protrusion To [Mm] | 0.49 |
| Thickness | 1.1 |
| Fits | Volkswagen · 2 vehicles |
MLS construction. Multilayer steel design helps maintain a reliable seal under pressure.
Precision thickness. 1.1 mm thickness supports consistent sealing performance.
Cylinder head gasket. Engine sealing part for dependable compression control.
Cross-references 30-030242-00, 059 103 383 CQ and 61-35970-00 for the same application. See all 7.
Elring 018.050 Cylinder Head Gasket
The Elring 018.050 engine cylinder head gasket is a multilayer steel (MLS) gasket for 4-6 cylinder applications with an 84 mm bore and 1.1 mm installed thickness. It is listed for 2009-2010 Volkswagen Touareg applications and is specified for piston protrusion from 0.39 mm to 0.49 mm.
Key Features
- Engine cylinder head gasket for sealing the combustion chamber and coolant/oil passages
- Multilayer steel (MLS) gasket design for precise sealing performance
- 84 mm diameter with 1.1 mm thickness and 1.1 mm installed thickness
- Specified for 4-6 cylinder engines
- Piston protrusion range: 0.39 mm to 0.49 mm
- Requires additional article 130.110
- Elring 018.050 reference for service and replacement matching
Detailed Description
Elring 018.050 is a cylinder head gasket built for engine sealing service where accurate thickness and bore sizing matter. The MLS construction supports a stable seal between the cylinder head and engine block, while the 84 mm diameter and 1.1 mm installed thickness help match the specified engine configuration. This part is listed for 2009 Volkswagen Touareg and 2010 Volkswagen Touareg applications, making it a direct reference for Touareg cylinder head gasket replacement work. The Elring 018.050 part number is also useful when cross-checking service records, engine rebuild specifications, or OE-style replacement needs.
This part cross-references 059 103 383 CQ and 30-030242-00 for the same application.
What It Is Used For
- Replacing a leaking or damaged cylinder head gasket
- Restoring compression sealing between the head and block
- Addressing coolant or oil seepage at the head interface
- Supporting engine repair after overheating or head service
- Matching the correct gasket thickness for specified piston protrusion
Installation Notes and Tips
Verify piston protrusion before installation and confirm it falls within the listed 0.39 mm to 0.49 mm range. Check that the required additional article 130.110 is on hand before beginning the repair. Clean the mating surfaces thoroughly and follow the engine manufacturer’s tightening sequence and torque specifications during assembly. Confirm the 84 mm bore and 1.1 mm thickness against the engine code and service data for the Volkswagen Touareg application.
Quality Assurance
Elring is a recognized sealing-system brand with a focus on engine gasket applications. This gasket is specified with defined bore, thickness, and piston protrusion values to support accurate parts selection for the listed Volkswagen Touareg fitments.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2010 | Volkswagen | Touareg | TDI | Sport Utility | AWD | 3.0L | V6 | — | N/A | — |
| 2009 | Volkswagen | Touareg | — | — | AWD | 3.0L | V6 | DIESEL | N/A | Diameter: 84mm |
