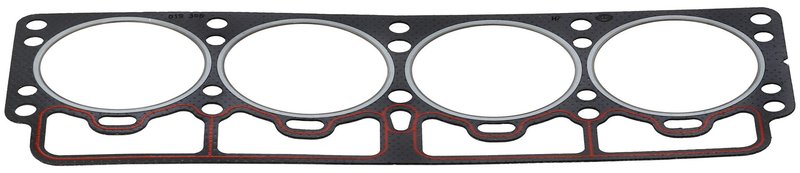

Elring 019.306 Engine Cylinder Head Gasket

Elring 019.306 Cylinder Head Gasket

The Elring 019.306 engine cylinder head gasket is a fibre composite gasket with a 1.2 mm thickness for precise sealing in the engine’s combustion and coolant passages. Built for cylinder head service, it supports accurate compression sealing where a stable gasket surface is required.

Key Features

• Engine cylinder head gasket for sealing the cylinder head to the engine block
• Fibre composite gasket design for dependable sealing performance
• 1.2 mm thickness for applications that require this specific gasket dimension
• Elring part number 019.306 for catalog and service matching
• Cross-reference: Four Seasons 54976 for the same application

Detailed Description

Elring 019.306 is a fibre composite engine cylinder head gasket engineered for service work where the original gasket specification calls for a 1.2 mm thickness. In cylinder head applications, gasket material and thickness are critical to maintaining compression seal integrity between the head and block. This part is suited for repair jobs that require a direct replacement by specification, including engine rebuilds and head gasket service on vehicles such as Honda Civic and Toyota Corolla applications where the correct gasket profile is essential. The Elring 019.306 part number is also useful when matching service records, OE references, or catalog listings during engine repair.

Common Issues This Part Addresses

• Compression loss between the cylinder head and engine block
• Coolant leakage at the head gasket sealing surface
• Combustion gas seepage into the cooling system
• Oil seepage from the cylinder head interface
• Seal failure after cylinder head removal or engine overhaul

Installation Notes and Tips

Inspect the cylinder head and block surfaces for flatness, corrosion, and residue before installation. Follow the engine manufacturer’s torque sequence and tightening specifications, and verify that the replacement gasket matches the required thickness and design before assembly. Clean mating surfaces thoroughly and confirm all sealing faces are dry and free of debris. Use the Elring 019.306 specification as the reference point when comparing replacement options for Honda Civic and Toyota Corolla engine service.

Quality Assurance

Elring is a recognized sealing-system manufacturer with extensive engine gasket application coverage. This cylinder head gasket is identified by part number 019.306 and built to match the specified fibre composite, 1.2 mm design requirements for the listed application type.
