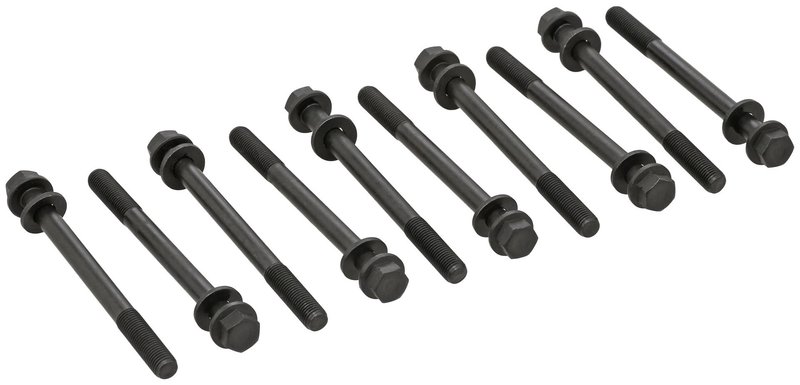

Elring 022.590 Engine Cylinder Head Bolt Set
| Brand | Elring 022.590 |
|---|---|
| Bolt Head-/Nut Design | Male hex |
| Number of bolts/screws | 10 |
| Spanner Size | 14 mm |
| Thread Size | M 10x1,25x120 |
| Fits | Acura and Honda · 13 vehicles |
Cylinder head bolt set. Includes 10 male-hex bolts for secure engine assembly.
Male hex design. 14 mm drive size makes tightening straightforward.
M10x1.25x120 thread. Sized for precise, dependable fastening.
Cross-references 016762B for the same application. See all 1.
Elring Cylinder Head Bolt Set 022.590
Elring 022.590 is an engine cylinder head bolt set for specific Honda and Acura applications that require M10 x 1.25 x 120 mm fasteners with a male hex head. With 10 bolts in the set, it is built for service work on the cylinder head fastening system where correct thread size, pitch, and length matter.
Key Features
- Engine cylinder head bolt set for OE-style service replacement
- 10 bolts per set
- Male hex bolt head / nut design
- Thread size: M10 x 1.25 x 120 mm
- Spanner size: 14 mm
- Elring part number 022.590
Fitment Details
- Fits 1997-2000 Acura EL, N/A. Notes: Length 120 mm; Thread Size M10; Thread Pitch 1.25 mm; Bolt Head Nut Design Male Hex.
- Fits 1996-2000 Honda Civic, N/A. Notes: Length 120 mm; Thread Size M10; Thread Pitch 1.25 mm; Bolt Head Nut Design Male Hex.
- Fits 1996-1997 Honda Civic del Sol, N/A. Notes: Length 120 mm; Thread Size M10; Thread Pitch 1.25 mm; Bolt Head Nut Design Male Hex.
- Fits 1994-1995 Honda Civic, N/A.
This part cross-references 016762B for the same application. If you are sourcing an Elring cylinder head bolt set for Honda Civic or Acura EL service, confirm the bolt length, thread pitch, and head design against the original fasteners before installation.
What It Is Used For
- Replacing stretched or removed cylinder head bolts during engine service
- Restoring proper cylinder head clamping force after head gasket work
- Matching the specified M10 x 1.25 x 120 mm fastener dimensions
- Supporting repairs on Honda Civic, Honda Civic del Sol, and Acura EL engines
- Addressing fastener wear, corrosion, or thread damage found during teardown
Installation Notes
Verify the engine code and fastener specification before installation. Clean the bolt holes, inspect the cylinder head and block threads, and follow the manufacturer’s tightening sequence and torque procedure for the engine being serviced. Because this set uses a male hex head and 14 mm spanner size, use the correct tools to avoid rounding the fasteners.
Quality Assurance
Elring is an established engine sealing and hardware brand used in professional repair environments. This cylinder head bolt set is specified by exact dimensions and application data to support accurate engine reassembly on listed Honda and Acura models.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|---|
| 2000 | Acura | EL | — | — | — | 1.6L | L4 | Length: 120mm; Thread Size: M10; Thread Pitch: 1.25mm; Bolt Head Nut Design: Male Hex |
| 2000 | Honda | Civic | — | — | — | 1.6L | L4 | Length: 120mm; Thread Size: M10; Thread Pitch: 1.25mm; Bolt Head Nut Design: Male Hex |
| 1999 | Acura | EL | — | — | — | 1.6L | L4 | Length: 120mm; Thread Size: M10; Thread Pitch: 1.25mm; Bolt Head Nut Design: Male Hex |
| 1999 | Honda | Civic | — | — | — | 1.6L | L4 | Length: 120mm; Thread Size: M10; Thread Pitch: 1.25mm; Bolt Head Nut Design: Male Hex |
| 1998 | Acura | EL | — | — | — | 1.6L | L4 | Length: 120mm; Thread Size: M10; Thread Pitch: 1.25mm; Bolt Head Nut Design: Male Hex |
| 1998 | Honda | Civic | — | — | — | 1.6L | L4 | Length: 120mm; Thread Size: M10; Thread Pitch: 1.25mm; Bolt Head Nut Design: Male Hex |
| 1997 | Acura | EL | — | — | — | 1.6L | L4 | Length: 120mm; Thread Size: M10; Thread Pitch: 1.25mm; Bolt Head Nut Design: Male Hex |
| 1997 | Honda | Civic | — | — | — | 1.6L | L4 | Length: 120mm; Thread Size: M10; Thread Pitch: 1.25mm; Bolt Head Nut Design: Male Hex |
| 1997 | Honda | Civic del Sol | — | — | — | 1.6L | L4 | Length: 120mm; Thread Size: M10; Thread Pitch: 1.25mm; Bolt Head Nut Design: Male Hex |
| 1996 | Honda | Civic | — | — | — | 1.6L | L4 | Length: 120mm; Thread Size: M10; Thread Pitch: 1.25mm; Bolt Head Nut Design: Male Hex |
| 1996 | Honda | Civic del Sol | — | — | — | 1.6L | L4 | Length: 120mm; Thread Size: M10; Thread Pitch: 1.25mm; Bolt Head Nut Design: Male Hex |
| 1995 | Honda | Civic | EX | Coupe | FWD | 1.6L | L4 | — |
| 1994 | Honda | Civic | EX | Coupe | FWD | 1.6L | L4 | — |
