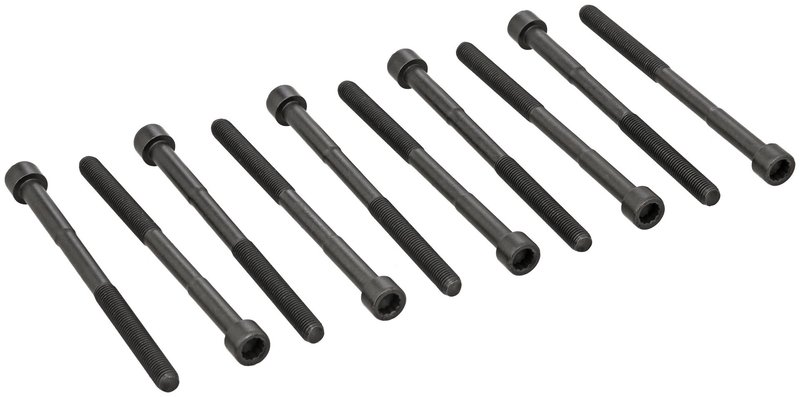

Elring 022.820 Engine Cylinder Head Bolt Set

Elring Cylinder Head Bolt Set for Toyota and Scion

The Elring 022.820 engine cylinder head bolt set is built for specific Toyota, Scion, Lexus, and Pontiac applications that require M11 x 1.5 x 161 mm head bolts with a female star drive. It is a direct-fit hardware solution for engine rebuilds and head gasket service where correct thread size, length, and bolt head design matter.

• Engine cylinder head bolt set for OE-style service work
• Female star bolt head/nut design for proper tool engagement
• Thread size: M11 x 1.5 x 161 mm
• Spanner size: X - M 12
• Brand: Elring part number 022.820
• Cross-references Beck/Arnley 016-1038 for the same application

Fitment and Application Details

Compatible with a wide range of Toyota and Scion engines, including Fits 2002-2011 Toyota Camry, N/A; Fits 2001-2007 Toyota Highlander, N/A; Fits 2001-2008 Toyota RAV4, N/A; Fits 2002-2008 Toyota Solara, N/A; Fits 2009-2012 Toyota Corolla, N/A; Fits 2009-2013 Toyota Matrix, N/A; Fits 2008-2013 Scion xB, N/A; and Fits 2005-2007 Scion tC, N/A. Additional coverage includes Lexus HS250h and Pontiac Vibe applications listed in the fitment data. Elring 022.820 is specified for vehicles that call for the listed bolt dimensions and female star head design.

What This Part Helps Address

• Head gasket service requiring replacement cylinder head bolts
• Engine teardown and rebuild work where original head bolts are removed
• Incorrect bolt length, thread pitch, or head drive style during repair
• Loss of clamping consistency from reused or damaged head bolts
• Fitment issues on Toyota, Scion, Lexus, and Pontiac engine applications

Installation Notes and Tips

Verify engine code, bolt length, thread pitch, and head drive style before installation. Clean the threaded holes and mating surfaces thoroughly, and follow the vehicle manufacturer’s tightening sequence and torque procedure exactly. Because cylinder head fasteners are critical engine hardware, confirm that the application calls for M11 x 1.5 x 161 mm bolts with a female star head before assembly.

Quality Assurance

Elring is a recognized engine sealing and hardware brand used in professional repair environments. The 022.820 cylinder head bolt set is manufactured to match the listed OE-style dimensions and application requirements for accurate engine service.
