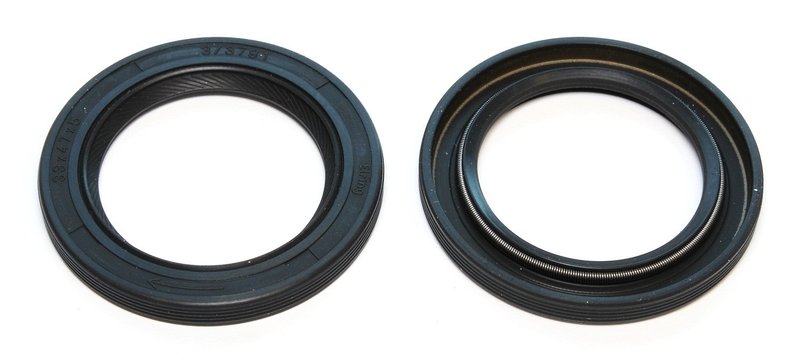

Elring 023.590 Engine Crankshaft Seal - Front

Elring Crankshaft Seal for Ford and Volvo

The Elring 023.590 engine crankshaft seal is built for timing-end sealing applications where precise shaft control and oil retention matter. It uses FPM (fluoride rubber) for heat and fluid resistance, along with a dust lip to help keep contaminants away from the sealing edge.

Compatible With Ford Fiesta, Ford Escape, Ford EcoSport, Ford Courier, Volvo S60, Volvo V40, and Volvo C30 applications listed below, this seal matches common OE-style dimensions for service work on the engine crankshaft. The Elring 023.590 is specified with a 33.0 mm inside diameter, 47.0 mm outside diameter, and 5.0 mm thickness.

Key Features

• Engine crankshaft seal for timing-end service
• FPM (fluoride rubber) sealing material for demanding engine environments
• 33.0 mm inside diameter, 47.0 mm outside diameter, 5.0 mm thickness
• Dust cover with dust lip for added contamination control
• Radial shaft seal design: ASW
• Swirl type: RD, right-hand twist
• Elring part number 023.590 for direct reference

Detailed Description

Elring 023.590 is an engine crankshaft seal used at the timing end to help maintain proper oil sealing around the crankshaft. The FPM construction is suited to engine heat and oil exposure, while the dust lip adds a barrier against road grit and debris. For Ford Fiesta timing-end repairs and Volvo S60 front crankshaft seal service, the listed dimensions and seal design details help support accurate replacement selection.

This part cross-references 1 112 945 and 6M5G 6700BA for the same application.

Common Problems This Seal Can Address

• Oil leakage at the crankshaft timing-end seal area
• Contamination entering the seal lip area
• Seal wear from heat and normal engine operation
• Loss of sealing performance during crankshaft service
• Repeat leaks caused by incorrect seal dimensions

Installation Notes and Tips

• Verify the seal dimensions match the engine before installation: 33.0 mm ID, 47.0 mm OD, 5.0 mm thickness.
• Confirm the application position, especially for Ford Fiesta and Volvo S60 timing-end service.
• Inspect the crankshaft sealing surface for scoring, wear, or debris before fitting the new seal.
• Install the seal squarely to avoid lip distortion and premature leakage.
• Use clean engine assembly practices to protect the dust lip and sealing edge.

Quality Assurance

Elring is a recognized name in engine gaskets and sealing systems, and this crankshaft seal is built to OE-style dimensional and material specifications for the listed Ford and Volvo applications. Part number 023.590 is identified for direct replacement matching in the fitment data provided.
