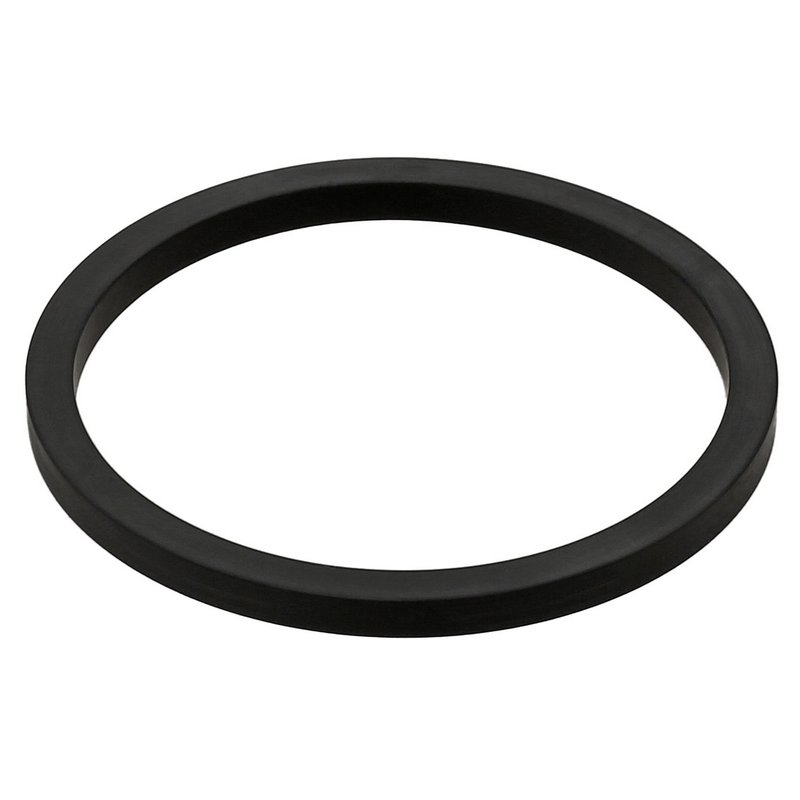

Elring 049.690 Engine Timing Cover Gasket

Engine Timing Cover Gasket Overview

Elring 049.690 is an engine timing cover gasket built for direct sealing performance in compatible Ram and Dodge Ram applications. It uses NBR (nitrile butadiene rubber) to help maintain a secure seal and reduce oil leakage at the timing cover interface.

Key Features

• NBR rubber construction for dependable sealing performance.
• 69 mm inner diameter, 79.3 mm outer diameter, and 5.1 mm thickness.
• Engine sealing component for timing cover service and repair.
• Elring 049.690 for Ram 2500, Ram 3500, and related heavy-duty Ram applications.

Detailed Description

This Elring timing cover gasket is specified for a range of Ram heavy-duty trucks, including Fits 2011-2023 Ram 2500, N/A; Fits 2011-2019 Ram 3500, N/A; and Fits 2009-2010 Dodge Ram 2500, N/A. It also covers Ram 4000, 4500, and 5500 applications listed in the fitment data. The gasket’s NBR material is selected for sealing stability in engine environments where heat, oil exposure, and long-term compression resistance matter. Part number 049.690 is a practical choice when replacing a worn timing cover seal on Ram and Dodge Ram engines.

Common Uses

• Stops oil seepage at the timing cover joint.
• Replaces a hardened or flattened gasket.
• Addresses leaks found during front engine service.
• Restores sealing after timing cover removal.
• Helps correct contamination from external oil leaks.

Installation Notes

Clean the sealing surfaces thoroughly before installation and inspect the cover for warping, corrosion, or residue that could affect sealing. Verify the gasket dimensions and application match the engine configuration before assembly. Use proper torque procedures during reassembly to help maintain an even seal.

Quality Assurance

Elring manufactures sealing components for engine service applications, with a focus on fit and leak control. Part number 049.690 cross-references Mopar 5086853AA and 24052900 for the same application.
