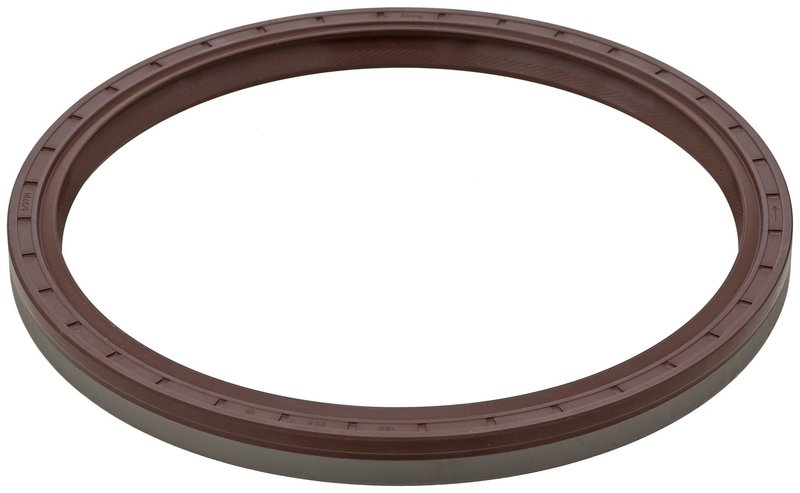

Elring 081.460 Engine Crankshaft Seal

Overview

Elring 081.460 is an engine crankshaft seal built for heavy-duty sealing applications where shaft control and contamination resistance matter. It uses FPM fluoride rubber and a dust lip to help maintain a stable seal in demanding engine environments.

Key Features

• FPM (fluoride rubber) construction for sealing performance in engine service.
• Dust lip helps reduce contamination at the sealing edge.
• AW/BS radial shaft seal design with LD swirl type.
• Dimensions: 180.0 mm inside diameter, 205.0 mm outside diameter, 15.0 mm thickness.
• Elring part number 081.460 for catalog matching and service lookup.

Detailed Description

This Elring crankshaft seal is specified for applications that require a precise radial shaft seal profile and durable sealing material. The FPM construction is suited to engine environments, while the dust lip adds an extra barrier against debris at the shaft interface. It is a direct-fit sealing component for compatible Mack Granite, Volvo VNL, Volvo 9700, Volvo VNM, Volvo 9700 Grand, and Volvo VT applications listed below. This part number 081.460 is also useful when cross-checking service references and replacement listings.

This part cross-references Dixie Electric Ltd 11923 for the same application.

What It Helps Address

• Oil leakage at the crankshaft sealing surface.
• Contamination entering the seal area.
• Wear-related sealing loss from age or heat exposure.
• Incorrect seal dimensions during engine service.

Installation Notes

Verify inside diameter, outside diameter, and thickness before installation. Confirm the seal orientation and shaft surface condition during service. Match the application notes for the correct engine sealing configuration before final assembly.

Quality Assurance

Elring is a recognized sealing-system manufacturer, and this seal is built to the listed dimensional and material specifications for application matching.

Compatible With

• Fits 2015-2021 Mack Granite, N/A.
• Fits 2016-2021 Volvo VNL, N/A.
• Fits 2009-2020 Volvo 9700, N/A.
• Fits 2016-2018 Volvo VNM, N/A.
• Fits 2015 Volvo 9700 Grand, N/A.
• Fits 2006-2007 Volvo VT, N/A.
