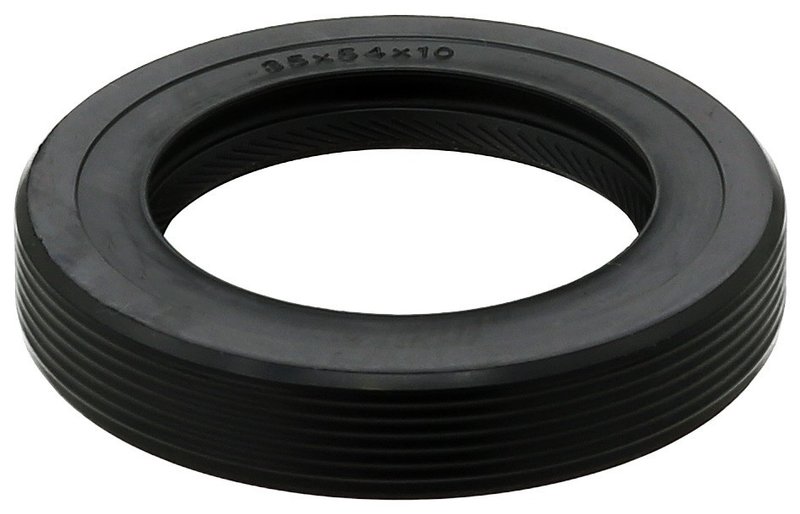

Elring 095.222 Engine Crankshaft Seal

Elring Crankshaft Seal for Porsche 924

Elring 095.222 is an engine crankshaft seal built for the 1977-1982 Porsche 924. It uses ACM (polyacrylate) sealing material, a 35.0 mm inside diameter, 54.0 mm outside diameter, and 10.0 mm thickness for a precise OE-style seal at the crankshaft.

• Engine crankshaft seal for Porsche 924 applications
• ACM (polyacrylate) construction for sealing performance in engine environments
• 35.0 mm inside diameter, 54.0 mm outside diameter, 10.0 mm thickness
• Includes a dust lip to help keep contaminants away from the sealing edge
• Radial shaft seal design: ASW
• Swirl type: RD, right-hand twist
• Elring 095.222 for timing-end crankshaft sealing on select 924 models

Fitment Details

Compatible with 1977-1979 Porsche 924, timing end, and 1980-1982 Porsche 924. Fitment notes list width 10 mm, inner diameter 35 mm, outer diameter 54 mm, dust cover with dust lip, and right-hand twist swirl type.

This part cross-references National 710331 and Victor Reinz 81-24289-00 for the same application.

What It Helps Address

• Engine oil seepage at the crankshaft seal area
• Contamination entering the sealing surface
• Wear-related leakage at the timing-end seal location
• Loss of sealing integrity from an aged or hardened crank seal

Installation Notes

Verify the seal dimensions, swirl direction, and timing-end application before installation. Inspect the crankshaft sealing surface for scoring or wear, and replace the seal only after the mating surface is clean and properly prepared. Correct orientation is important for a radial shaft seal with right-hand twist.

Quality Assurance

Elring is a recognized engine sealing brand, and this crankshaft seal is built to match the listed dimensions and design details for the specified Porsche 924 applications.
