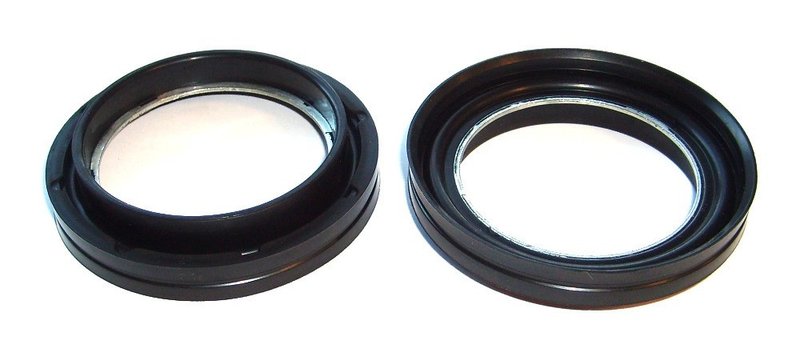

Elring 097.500 Wheel Hub Gasket

Wheel Hub Seal for Ford and Lincoln Applications

Elring 097.500 is a wheel hub gasket and radial shaft seal built with ACM (polyacrylate) material for sealing service in driveline and axle applications. With a 55.5 mm inside diameter, 79.8 mm outer diameter, and 18.0 mm thickness, it matches the dimensional requirements used across a wide range of Ford truck and van platforms.

Use this seal when servicing front or rear hub areas on select Ford F-150, F-250, F-350, Excursion, E-350 Econoline, and Lincoln Mark LT applications. Elring 097.500 is also cross-referenced to National 710413 for the same application.

• Brand: Elring
• Part number: 097.500
• Wheel hub gasket / radial shaft seal design: SP
• Material: ACM (polyacrylate)
• Inside diameter: 55.5 mm
• Outer diameter: 79.8 mm
• Thickness: 18.0 mm
• Fits front and rear axle applications depending on vehicle and model year

Fitment Coverage

• Fits 2008-2010 Ford F-350 Super Duty, rear.
• Fits 2010 Lincoln Mark LT, front axle.
• Fits 2006-2008 Lincoln Mark LT, front axle.
• Fits 1991-2007 Ford F-250, N/A.
• Fits 1999-2007 Ford F-250 Super Duty, N/A.
• Fits 1999-2007 Ford F-350 Super Duty, N/A.
• Fits 2000-2005 Ford Excursion, N/A.
• Fits 2000 Ford F-150, N/A.
• Fits 1992-1998 Ford F-150, front axle.
• Fits 1995-1997 Ford E-350 Econoline, front axle.
• Fits 1997 Ford F-250 HD, N/A.
• Fits 1991-1997 Ford F-350, N/A.

What This Seal Helps Address

• Gear oil seepage at the wheel hub or axle seal area
• Contamination entering the hub assembly
• Seal wear from age, heat, and road exposure
• Service replacement during axle, hub, or bearing work
• Leak-related maintenance on Ford Super Duty, F-150, Excursion, and Mark LT platforms

Installation Notes and Tips

Verify the seal dimensions against the original part before installation, especially the 55.5 mm inside diameter, 79.8 mm outer diameter, and 18.0 mm thickness. Clean the sealing surface thoroughly and inspect the hub, axle, and mating components for wear or damage before assembly. Confirm whether the application is front axle or rear axle based on the vehicle listing, since fitment varies by model and year.

Quality Assurance

Elring is a recognized sealing-system manufacturer, and this part is built to the listed dimensional and material specifications for direct replacement use. Part number 097.500 also cross-references National 710413 for the same application.
