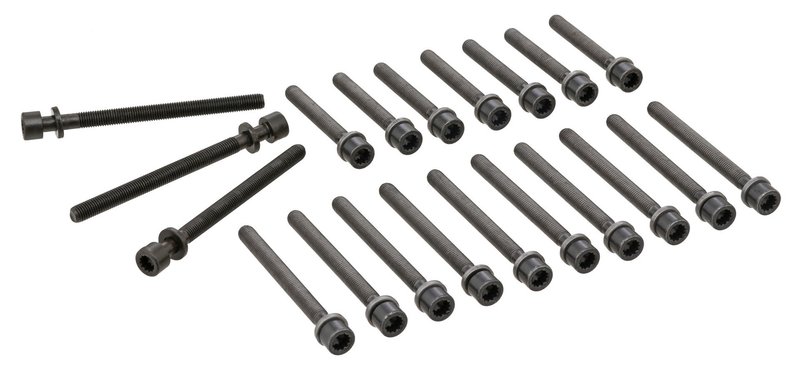

Elring 104.510 Engine Cylinder Head Bolt Set

Elring 104.510 Cylinder Head Bolt Set

Elring 104.510 is an engine cylinder head bolt set for Volkswagen applications that require M11 x 1.5 fasteners with a female star head design. With 20 bolts in the set, it is built for service work on the cylinder head where correct thread size, length, and head style matter.

Key Features

• Engine cylinder head bolt set from Elring
• Part number: 104.510
• 20 bolts/screws per set
• Female star bolt head / nut design
• Thread size 1: M11 x 1.5 x 85
• Thread size 2: M11 x 1.5 x 119
• Spanner size: X - M 12

Detailed Description

This Elring cylinder head bolt set is specified for Volkswagen Golf, Volkswagen Jetta, Volkswagen EuroVan, Volkswagen Passat, and Volkswagen Corrado applications that call for M11 thread size and a 1.5 mm pitch. The 104.510 part number is a direct reference point for buyers matching engine hardware by bolt head style, thread length, and quantity. This part cross-references MAHLE GS33461 and Victor Reinz 14-32056-01 for the same application.

Use this set when replacing cylinder head bolts during engine service on 1992-2004 Volkswagen models listed in the fitment data. The combination of female star drive and two specified thread lengths helps ensure the correct hardware is selected for the intended engine assembly.

Vehicle Fitment

• Fits 2003-2004 Volkswagen Golf, N/A
• Fits 1995-2002 Volkswagen Golf, N/A; Thread Size: M11; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 1994-2002 Volkswagen Jetta, N/A; Thread Size: M11; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 1999-2001 Volkswagen EuroVan, N/A; Thread Size: M11; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 1997 Volkswagen EuroVan, N/A; Thread Size: M11; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 1993-1997 Volkswagen Passat, N/A; Thread Size: M11; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 1992-1995 Volkswagen Corrado, N/A; Thread Size: M11; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star

Installation Notes and Tips

• Confirm the engine’s required thread size, pitch, and bolt length before installation.
• Match the female star drive to the correct tool before tightening.
• Follow the vehicle service manual for tightening sequence and torque procedure.
• Inspect the cylinder head and block surfaces during head gasket service.

Quality Assurance

Elring is a recognized engine sealing and hardware brand used in professional repair applications. Verify the part number 104.510 and the listed fitment details against the vehicle’s engine code before installation.
