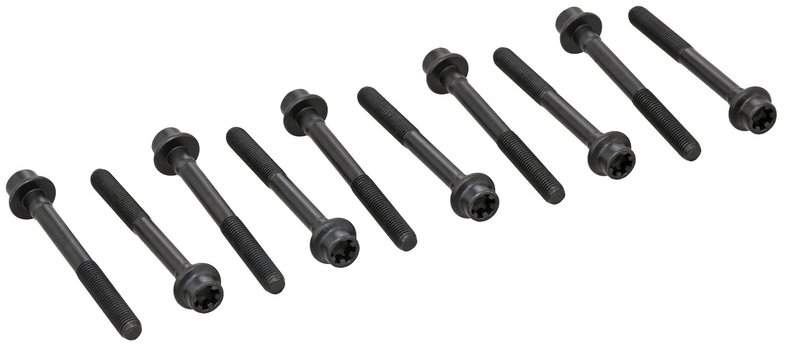

Elring 111.590 Engine Cylinder Head Bolt Set
| Brand | Elring 111.590 |
|---|---|
| Bolt Head-/Nut Design | Female Splined (Ribe-CV®) |
| Number of bolts/screws | 10 |
| Thread Size | M 9x1,25x87 |
| Fits | Jeep, Fiat, and Alfa Romeo · 35 vehicles |
Cylinder head bolt set. Female splined design for secure engine assembly.
Ribe-CV® design. Provides a precise drive interface for installation.
Cross-references 14-35731-01, 22-17019B and 016262B for the same application. See all 7.
Elring Cylinder Head Bolt Set for Fiat and Dodge
Elring 111.590 is an engine cylinder head bolt set built for specific Fiat, Dodge, and Jeep applications that use an M9 x 1.25 x 87 mm fastener with a female splined Ribe-CV head design. It is a direct-fit hardware solution for engine rebuilds and head service where correct thread size, length, and drive style matter.
Key Features
- Engine cylinder head bolt set from Elring
- Part number: 111.590
- Female splined Ribe-CV head design for proper tool engagement
- M9 x 1.25 thread pitch with 87 mm length
- Application-specific hardware for Fiat 500, Fiat 500L, Fiat 500X, Fiat 124 Spider, Dodge Neon, Dodge Dart, and Jeep Renegade
- Cross-reference: 14-35731-01, 22-17019B
Detailed Description
This Elring 111.590 cylinder head bolt set is specified for engine hardware service where the original bolt dimensions and drive type must match the application. It is listed for 2009-2020 Fiat 500, 2014-2020 Fiat 500L, 2016-2017 Fiat 500X, 2017-2020 Fiat 124 Spider, 2013-2016 Dodge Dart, 2017-2020 Dodge Neon, and 2015-2018 Jeep Renegade. The female splined Ribe-CV head design helps ensure the correct tool interface during cylinder head service on these engines.
What It Helps Address
- Replacing stretched or damaged cylinder head bolts during engine repair
- Restoring proper clamping hardware after cylinder head removal
- Matching the correct M9 x 1.25 x 87 mm bolt specification
- Servicing engines that require a female splined Ribe-CV drive
- Supporting rebuild work on Fiat 500, Fiat 500L, Fiat 500X, Fiat 124 Spider, Dodge Neon, and Dodge Dart applications
Installation Notes and Tips
Verify thread size, length, and head design before installation. Use the correct Ribe-CV tool for the female splined head and follow the vehicle service manual for tightening sequence and torque procedure. Confirm engine code and application details for your Fiat 500 or Dodge Neon before ordering, since fitment varies by model year and engine configuration.
Quality Assurance
Elring is a recognized engine sealing and hardware brand used in professional repair environments. Part number 111.590 is built to match the listed application specifications for accurate cylinder head service on compatible Fiat, Dodge, and Jeep vehicles.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2020 | Dodge | Neon | — | — | — | 1.4L | L4 | N/A | — |
| 2020 | Fiat | 124 Spider | — | — | — | 1.4L | L4 | N/A | — |
| 2020 | Fiat | 500L | — | — | — | 1.4L | L4 | N/A | — |
| 2019 | Fiat | 124 Spider | — | — | — | 1.4L | L4 | N/A | — |
| 2019 | Fiat | 500 | — | — | — | 1.4L | L4 | N/A | — |
| 2019 | Fiat | 500L | — | — | — | 1.4L | L4 | N/A | — |
| 2018 | Dodge | Neon | — | — | — | 1.4L | L4 | N/A | — |
| 2018 | Fiat | 124 Spider | — | — | — | 1.4L | L4 | N/A | — |
| 2018 | Fiat | 500 | — | — | — | 1.4L | L4 | N/A | — |
| 2018 | Fiat | 500L | — | — | — | 1.4L | L4 | N/A | — |
| 2018 | Fiat | 500X | — | — | — | 1.4L | L4 | N/A | — |
| 2018 | Jeep | Renegade | — | — | — | 1.4L | L4 | N/A | Length: 87mm; Thread Size: M9; Thread Pitch: 1.25mm; Bolt Head Nut Design: Female Splined (Ribe-CV®) |
| 2017 | Dodge | Neon | — | — | — | 1.4L | L4 | N/A | — |
| 2017 | Fiat | 124 Spider | — | — | — | 1.4L | L4 | N/A | — |
| 2017 | Fiat | 500 | — | — | — | 1.4L | L4 | N/A | Length: 87mm; Thread Size: M9; Thread Pitch: 1.25mm; Bolt Head Nut Design: Female Splined (Ribe-CV®) |
| 2017 | Fiat | 500L | — | — | — | 1.4L | L4 | N/A | — |
| 2017 | Fiat | 500X | — | — | — | 1.4L | L4 | N/A | — |
| 2017 | Jeep | Renegade | — | — | — | 1.4L | L4 | N/A | Length: 87mm; Thread Size: M9; Thread Pitch: 1.25mm; Bolt Head Nut Design: Female Splined (Ribe-CV®) |
| 2016 | Dodge | Dart | — | — | — | 1.4L | L4 | N/A | — |
| 2016 | Fiat | 500 | — | — | — | 1.4L | L4 | N/A | Length: 87mm; Thread Size: M9; Thread Pitch: 1.25mm; Bolt Head Nut Design: Female Splined (Ribe-CV®) |
| 2016 | Fiat | 500L | — | — | — | 1.4L | L4 | N/A | — |
| 2016 | Fiat | 500X | — | — | — | 1.4L | L4 | N/A | Length: 87mm; Thread Size: M9; Thread Pitch: 1.25mm; Bolt Head Nut Design: Female Splined (Ribe-CV®) |
| 2016 | Jeep | Renegade | — | — | — | 1.4L | L4 | N/A | Length: 87mm; Thread Size: M9; Thread Pitch: 1.25mm; Bolt Head Nut Design: Female Splined (Ribe-CV®) |
| 2015 | Dodge | Dart | — | — | — | 1.4L | L4 | N/A | — |
| 2015 | Fiat | 500 | — | — | — | 1.4L | L4 | N/A | Length: 87mm; Thread Size: M9; Thread Pitch: 1.25mm; Bolt Head Nut Design: Female Splined (Ribe-CV®) |
| 2015 | Fiat | 500L | — | — | — | 1.4L | L4 | N/A | — |
| 2015 | Jeep | Renegade | — | — | — | 1.4L | L4 | N/A | Length: 87mm; Thread Size: M9; Thread Pitch: 1.25mm; Bolt Head Nut Design: Female Splined (Ribe-CV®) |
| 2014 | Dodge | Dart | — | — | — | 1.4L | L4 | N/A | — |
| 2014 | Fiat | 500 | — | — | — | 1.4L | L4 | N/A | Length: 87mm; Thread Size: M9; Thread Pitch: 1.25mm; Bolt Head Nut Design: Female Splined (Ribe-CV®) |
| 2014 | Fiat | 500L | — | — | — | 1.4L | L4 | N/A | — |
| 2013 | Dodge | Dart | — | — | — | 1.4L | L4 | N/A | — |
| 2013 | Fiat | 500 | — | — | — | 1.4L | L4 | N/A | Length: 87mm; Thread Size: M9; Thread Pitch: 1.25mm; Bolt Head Nut Design: Female Splined (Ribe-CV®) |
| 2012 | Fiat | 500 | — | — | — | 1.4L | L4 | N/A | Length: 87mm; Thread Size: M9; Thread Pitch: 1.25mm; Bolt Head Nut Design: Female Splined (Ribe-CV®) |
| 2011 | Fiat | 500 | Classic | Hatchback | FWD | 1.4L | L4 | N/A | — |
| 2009 | Fiat | 500 | Classic | Hatchback | FWD | 1.4L | L4 | N/A | — |
