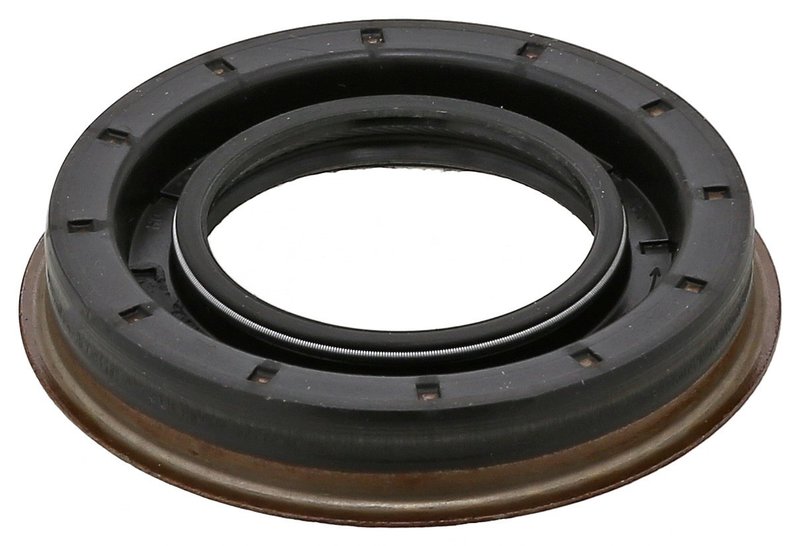

Elring 152.940 Differential Seal - Front

Mercedes-Benz Differential Seal for Rear Inlet Applications

Elring 152.940 is a differential seal built for Mercedes-Benz driveline sealing applications that require a 40.0 mm inside diameter, 70.0 mm outside diameter, and 11 mm height. It uses ACM (polyacrylate) material with a dust lip to help maintain a clean sealing area at the axle or differential inlet.

• Elring differential seal, part number 152.940
• ACM (polyacrylate) sealing material for driveline use
• 40.0 mm inside diameter, 70.0 mm outside diameter, 11 mm height
• Radial shaft seal design SP with RD swirl type
• Dust lip helps protect the sealing edge from contamination
• Direct-fit style for select Mercedes-Benz rear inlet applications

Detailed Product Overview

This Elring differential seal is specified for Mercedes-Benz vehicles across a wide range of model years, including C-Class, E-Class, GLK, GLE, ML, SLK, and classic chassis applications. The seal dimensions and right-hand twist swirl type are important for matching the original sealing geometry, especially on inlet and rear positions where driveline fluid retention is critical. If you are replacing a leaking Mercedes-Benz differential seal, 152.940 provides the size and design details needed for a proper service match.

This part cross-references 025 997 00 47 and 34917 for the same application.

What This Seal Helps Address

• Differential fluid seepage at the inlet or rear sealing point
• Contamination entering the driveline sealing area
• Wear-related leakage from an aging radial shaft seal
• Noise or driveline service concerns caused by low fluid level
• Seal replacement needs on Mercedes-Benz rear axle and differential service

Installation Notes and Fitment Tips

Confirm the seal dimensions before installation: 40.0 mm inner diameter, 70.0 mm outer diameter, and 11 mm height. Match the swirl direction and radial shaft seal design to the original part, especially on Mercedes-Benz C300, E350, GLK350, and other listed applications. Clean the sealing surface thoroughly and inspect the shaft for wear or scoring before pressing in the new seal.

• Fits 2018-2019 Mercedes-Benz C180, inlet; rear
• Fits 2017-2019 Mercedes-Benz E300, inlet; rear
• Fits 2016-2019 Mercedes-Benz GLE350, inlet; rear
• Fits 2015-2018 Mercedes-Benz C300, width: 11mm; inner diameter: 40mm; outer diameter: 70mm; dust cover: with dust lip; swirl type: right-hand twist
• Fits 2010-2016 Mercedes-Benz E350, width: 11mm; inner diameter: 40mm; outer diameter: 70mm; dust cover: with dust lip; swirl type: right-hand twist
• Fits 2006-2011 Mercedes-Benz C350, width: 11mm; inner diameter: 40mm; outer diameter: 70mm; dust cover: with dust lip; swirl type: right-hand twist
• Fits 1994-1999 Mercedes-Benz S320, width: 11mm; inner diameter: 40mm; outer diameter: 70mm; dust cover: with dust lip; swirl type: right-hand twist
• Fits 1975-1981 Mercedes-Benz 300D, width: 11mm; inner diameter: 40mm; outer diameter: 70mm; dust cover: with dust lip; swirl type: right-hand twist; inlet

Quality Assurance

Elring is a recognized sealing-system manufacturer for automotive service parts, and this differential seal is built to the listed dimensional and design specifications for accurate replacement selection. Verify vehicle application against the fitment data and original seal measurements before installation.
