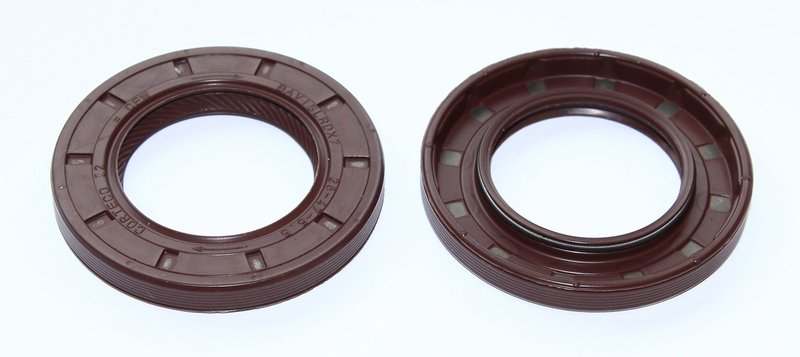

Elring 169.370 Engine Camshaft Seal

Elring 169.370 Camshaft Seal Overview

Elring 169.370 is an engine camshaft seal built for precise shaft sealing in the valve train area. It uses FPM (fluoride rubber) for oil resistance and includes a dust lip to help keep contaminants away from the sealing edge.

With a 28 mm inner diameter, 47 mm outer diameter, and 5.5 mm height, this seal is specified for applications that require a compact radial shaft seal design. It is a direct-fit sealing component for service work where camshaft oil control is critical.

Key Features

• Engine camshaft seal for sealing the camshaft at the engine housing
• FPM (fluoride rubber) construction for demanding engine oil environments
• Dust lip helps reduce dirt intrusion at the sealing surface
• 28 mm inner diameter, 47 mm outer diameter, 5.5 mm height
• Radial shaft seal design: ASW
• Swirl type: RD

Detailed Description

This Elring camshaft seal is engineered for applications that require stable sealing performance around the camshaft journal. The FPM material is selected for resistance to heat and oil exposure, while the dust lip adds an extra barrier against external contamination. If you are servicing an engine that uses this seal specification, Elring 169.370 provides the dimensional and material match needed for proper camshaft oil sealing. This part cross-references Renault (e.g., 77 00 108 679, 77 01 471 372) for the same application.

What It Helps Address

• Oil seepage at the camshaft seal area
• Contamination entering the camshaft sealing zone
• Seal wear from heat and oil exposure
• Loss of sealing integrity during engine service
• Leak-related maintenance on engines using this seal size

Installation Notes and Tips

Verify the seal dimensions against the removed part before installation. Inspect the camshaft sealing surface for scoring, wear, or debris, and clean the bore thoroughly before pressing the seal into place. Use care to keep the sealing lip aligned during installation so the dust lip and radial sealing edge seat evenly.

Quality Assurance

Elring is a recognized name in engine sealing systems, and this camshaft seal is built to OE-style dimensional and material specifications for service replacement use.
